Weighing Functions
SIWAREX FTA
5.4.5 DR 4 - Type: filling (additive) without emptying
Automatic catch weighing instrument – conforming with OIML R-51 - Automatic
Weighing Instrument (AWI) The scale doses individual amounts in single action.
Emptying the scale is not part of the automatic operation cycle. The net weight
increases with increasing load on the scale.
The weighing procedure is clarified by the following image

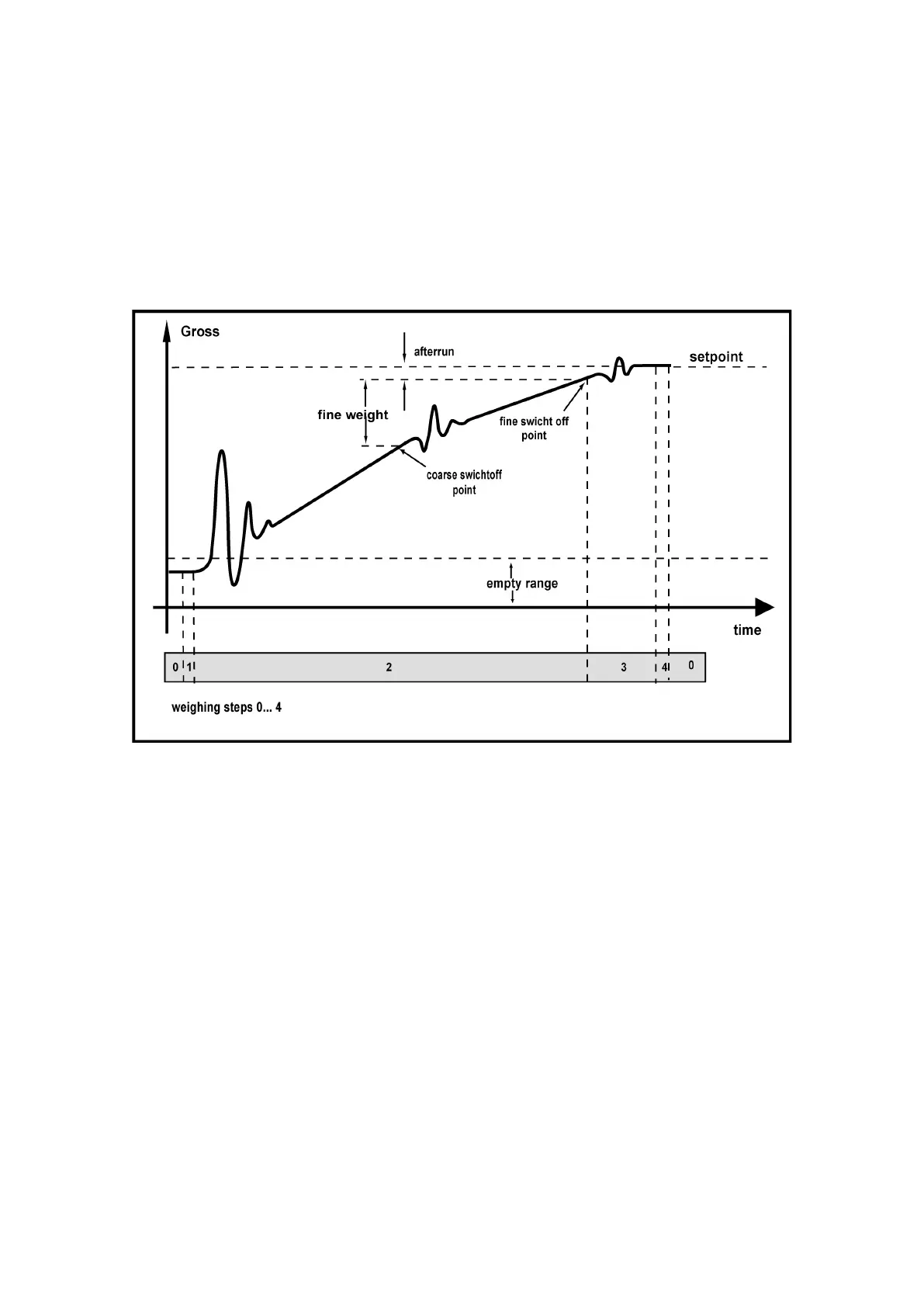

Image 5-6 Weighing steps for catch weighing with filling AWI
