Siemens SIWAREX FTA

To Next Page

To Previous Page

Hardware Planning and Assembly

SIWAREX FTA

4-23

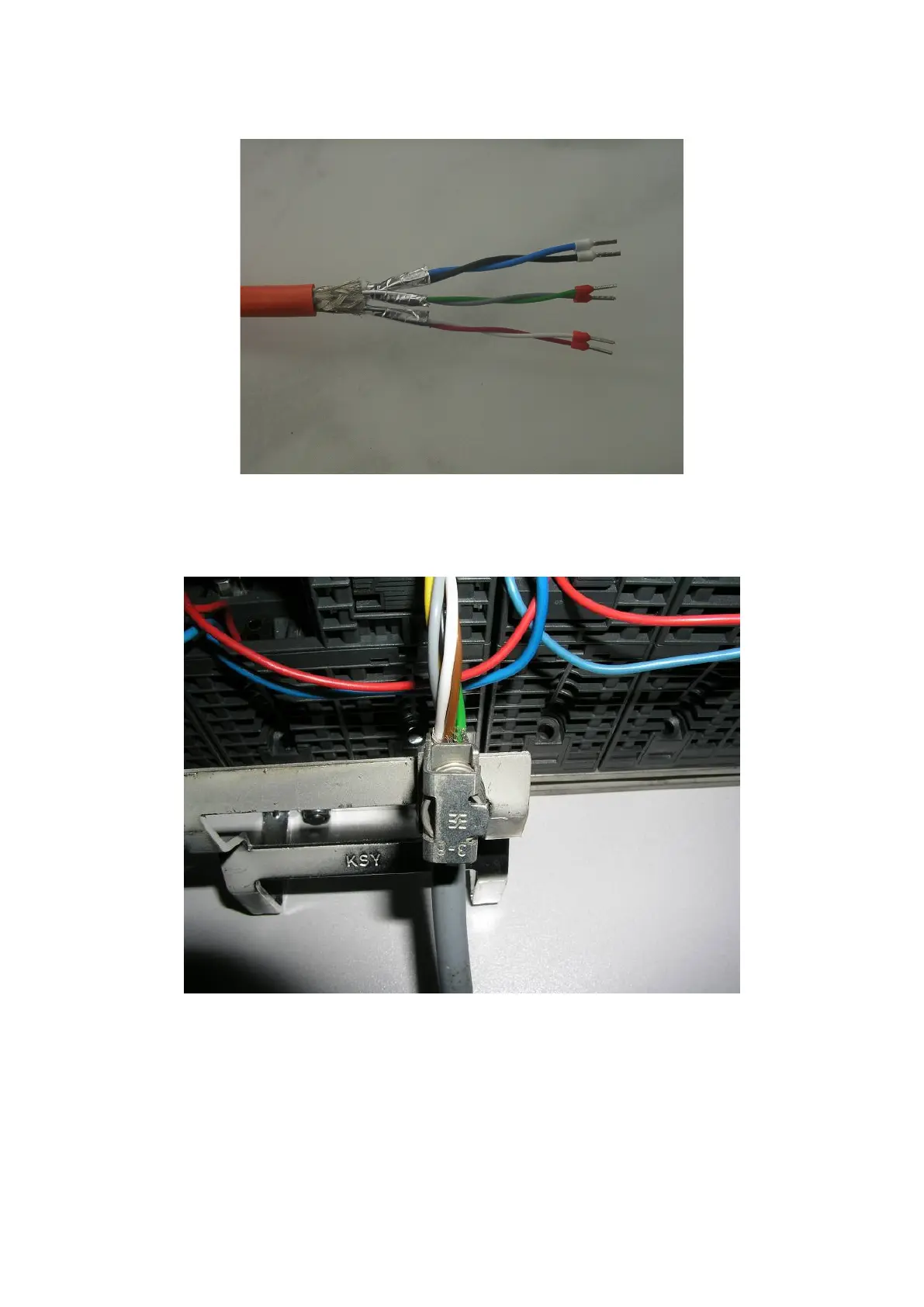

Image 4-5 Pairs of conductors in the shielded cable

Image 4-6 Example – Mounting of shield clamps on module

4. The shielding must be attached to the shielding strip on the SIWAREX FTA.
