Hardware Planning and Assembly
SIWAREX FTA
Terminal Signal name Remarks
X1.21 485a Input Ta
X1.22 485b Input Tb
X1.23 485a Output Ta
X1.24 485a Output Tb
X1.25 RTa Termination resistor RTa
X1.26 RTb Termination resistor RTb
Table 4-10 RS 485 Connections

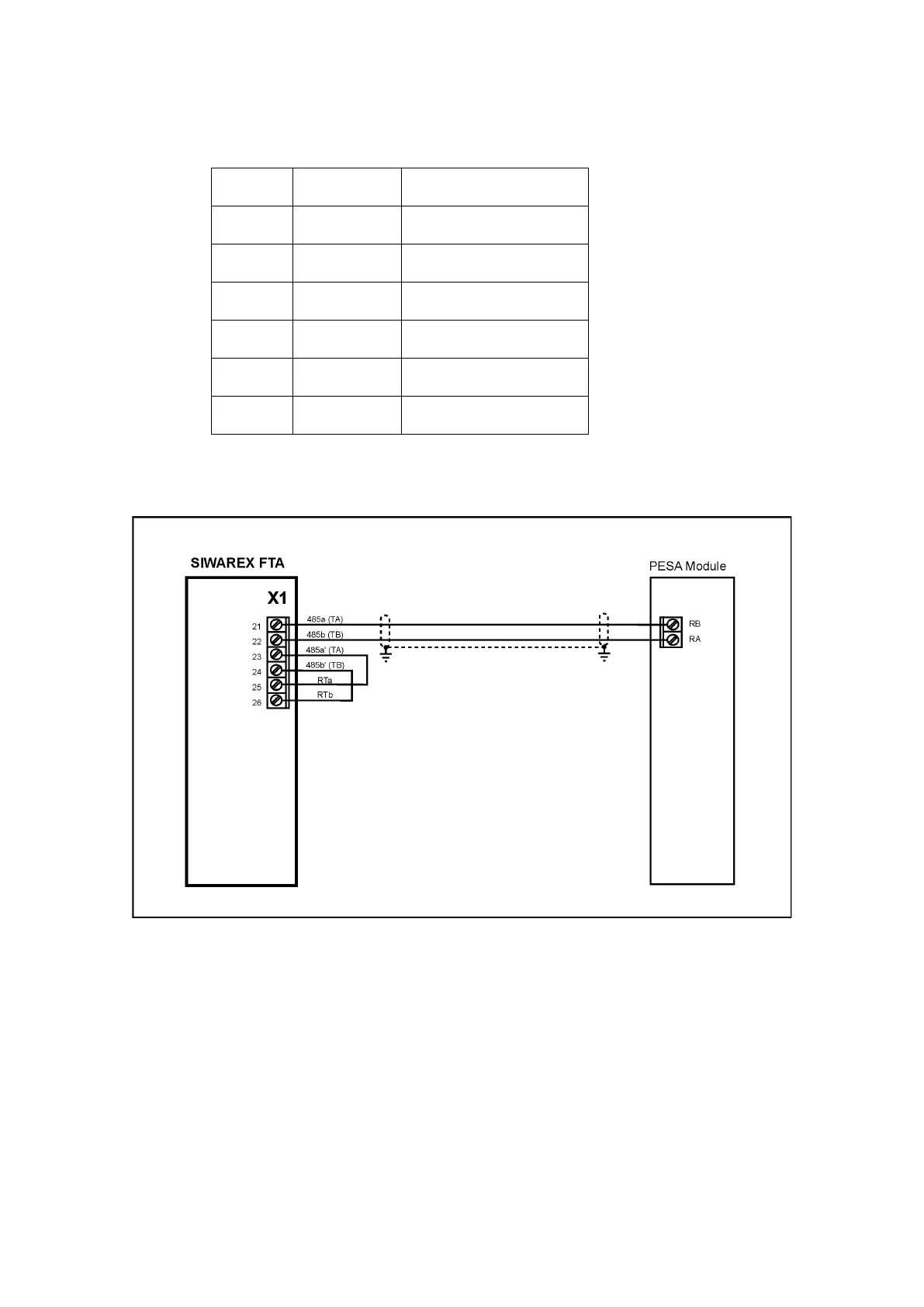

Image 4-15 PESA load cell connection
Appropriate settings need to be made when starting up a PESA load cell after its connection.
See 5.2.31
