05.2006 Control Word and Status Word
Siemens AG 6SE7087-2JD60
SIMOVERT MASTERDRIVES Operating Instructions 10-9
Function diagram
87654321

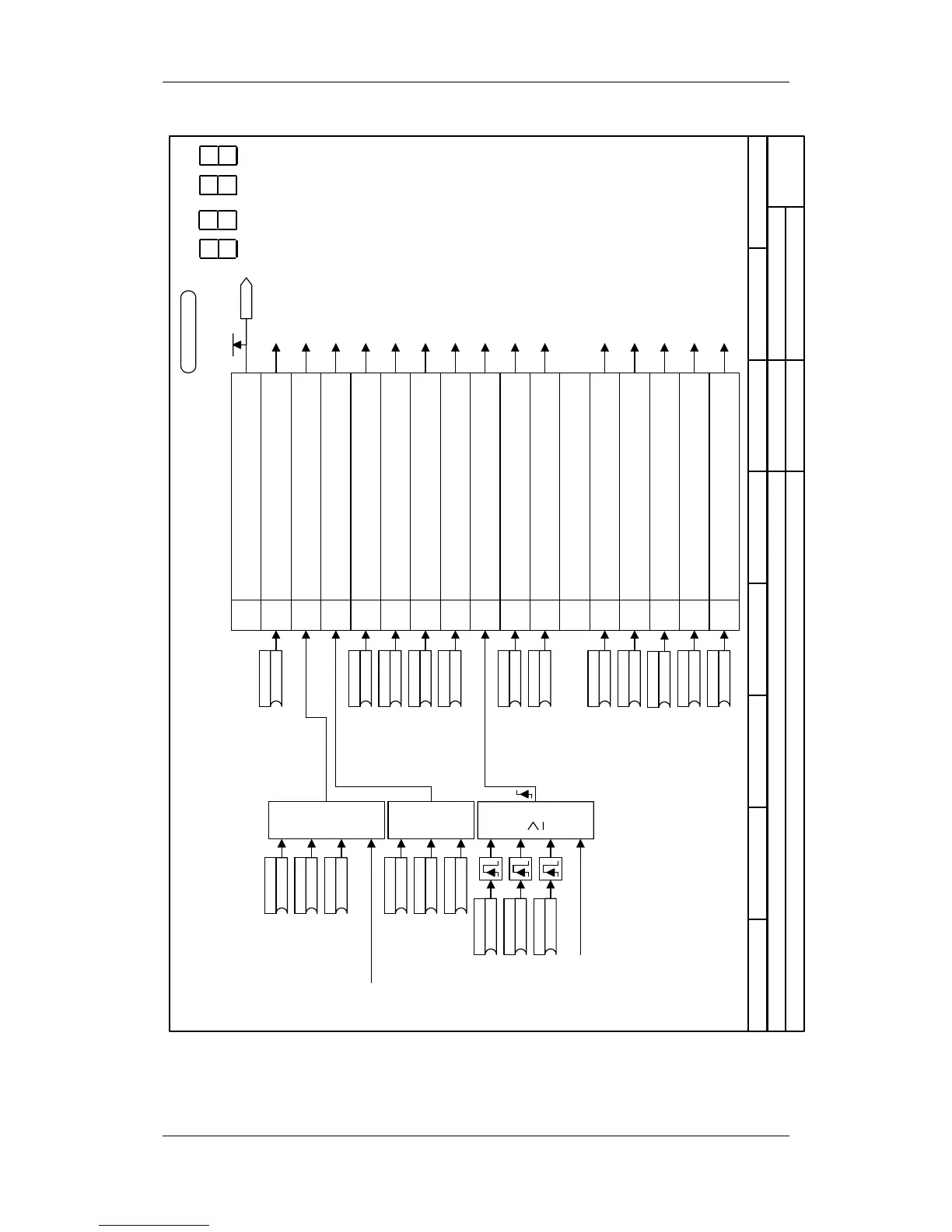

Control word 1
MASTERDRIVES VC
- 180 -
P555.B (1/20)
B
Src1 OFF2(coast)
P556.B (1/1)
B
Src2 OFF2(coast)
P557.B (1/1)
B
Src3 OFF2(coast)
"Safe STOP" checkback
&
P558.B (1/1)
B
Src1 OFF3(QStop)
P559.B (1/1)
B
Src2 OFF3(QStop)
P560.B (1/1)
B
Src3 OFF3(QStop)
&
P565.B(2107)
B
Src1 Fault Reset
P566.B (0/0)
B
Src2 Fault Reset
P567.B (0/18)
B
Src3 Fault Reset
from PMU [50.7]
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
Bit 7
Bit 8
Bit 9
Bit 10
Bit 11
Bit 12
Bit 13
Bit 14
Bit 15
0=OFF1, Shutdown via ramp-function generator,
followed by pulse disable,
1=ON, operating condition (edge-controlled)
Meaning
0=OFF2, pulse disable, motor coasts down
1=Operating condition
0=OFF3, quick stop
1=Operating condition
1=Inverter enable, pulse enable
0=Pulse disable
1=Ramp-function generator enable
0=Set ramp-function generator to 0
1=Start ramp-function generator
0=Stop ramp-function generator
1=Setpoint enable
0=Setpoint disable
0 =>1 Edge fault acknowledgement
1=Inching bit0
1=Inching bit1
1=Control requested
0=No control requested
1=Clockwise phase sequence enable
0=Clockwise phase sequence disable
1=Counter-clockwise phase sequence
enable 0=Counter-clockwise phase sequence disable
1=Raise mot. potentiometer
0=External fault 1
1=No external fault
1=Lower mot. potentiometer
P554.B (5/22)
B
Src ON/OFF1
P561.B (1/1)
B
Src InvRelease
P562.B (1/1)
B
Src RampGen Rel
P563.B (1/1)
B
Src RampGen Stop
P564.B (1/1)
B
Src Setp Release
1
P568.B (0/0)
B
Src Inching Bit0
P569.B (0/0)
B
Src Inching Bit1
P571.B (1/1)
B
Src FWD Speed
P572.B (1/1)
B
Src REV Speed
P574.B (9/0)
B
Src MOP DOWN
P575.B (1/1)
B
Src No ExtFault1
P573.B (8/0)
B
Src MOP UP
to sequence control 1)
to braking control [470.1]
to setpoint processing [300.5]
to sequence control 1)
to braking control [470.1]
to sequence control 1)
to braking control [470.1]
to setpoint processing [318.3], [328.3]
to sequence control 1)
to setpoint processing [317.6], [327.6]
to setpoint processing [317.6], [327.6]
to setpoint processing [316.4], [326.4]
to sequence control 1)
to sequence control 1)
to setpoint processing
[316.1], [318.2], [326.1], [328.2]
to sequence control 1)
to setpoint processing
[316.1], [318.2], [326.1], [328.2]
to setpoint processing [316.4], [326.4]
to setpoint processing [300.1]
to setpoint processing [300.1]
to sequence control 1)
to fault processing
Note:This bit must be set in the first PZD word of the
telegram received from serial interfaces, so that the
converter will accept the process data as being valid
(compare USS, PROFIBUS, etc.)
Control word 1
r550
K0030
Control word 1 •
Display of r550 on PMU
1415 13 12 11 10
9 8
01234567
Bit No.
Bit 0
to setpoint processing [317.1], [327.1]
The sequence control is the internal
control (software) for realizing the
drive status (r001)
1)
n959.25 = 4
Pre-assignment of the BICO parameters:
1. Binector valid for BICO data set 1
2. Binector valid for BICO data set 2
