Sierra Wireless FX30 - Flat Mount

Installation and Startup
Rev 4 March 2019 13 41110030
Flat Mount
To mount the FX30 on a flat surface:
1. Attach the bracket to the mounting surface, using the attachment points
shown in Figure 2-3.

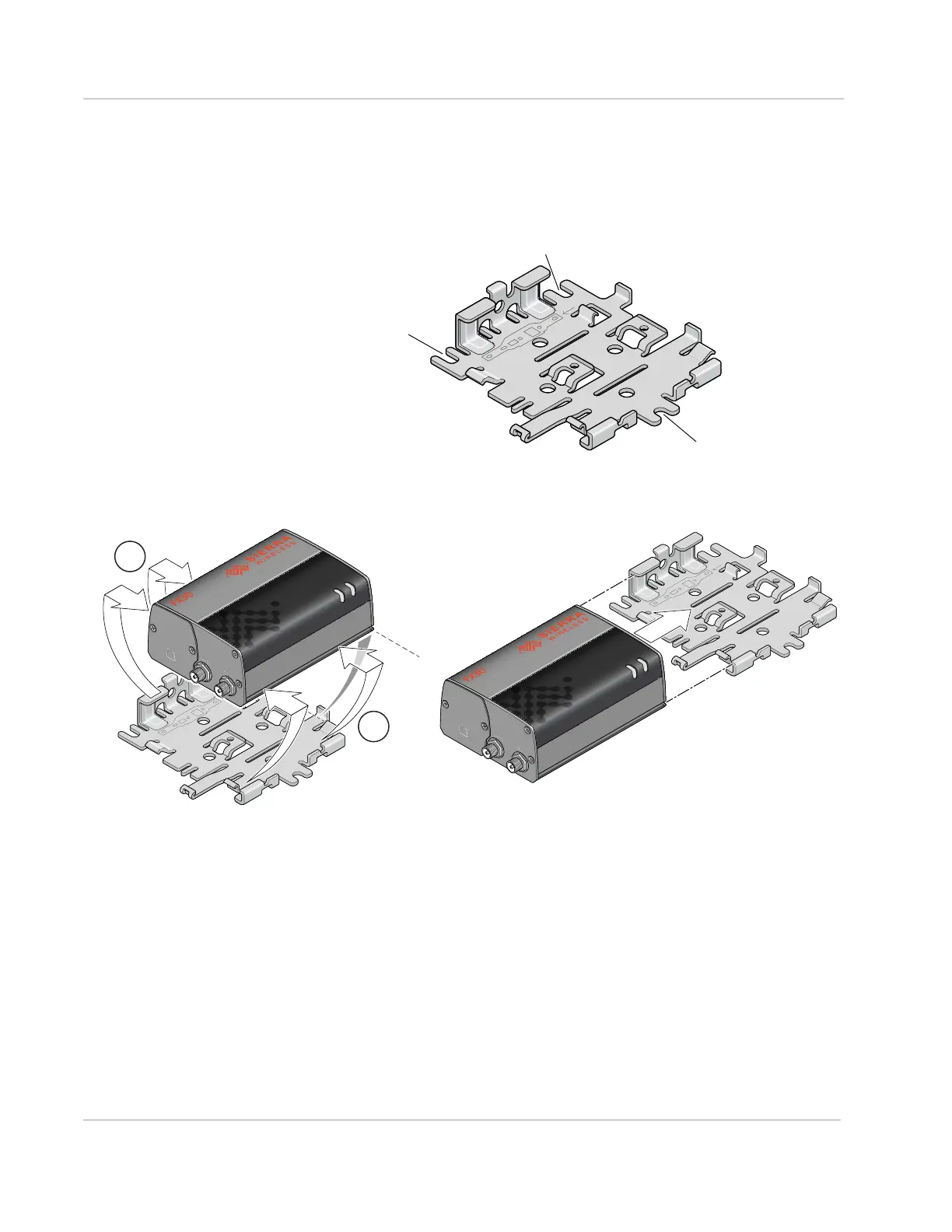

Figure 2-3: Mounting Bracket, showing attachment points
2. Snap or slide the FX30 onto the bracket.
Figure 2-4: Attaching the FX30 to the bracket
Attachment point
Attachment point
Attachment point
1
2
Recommended: Snap the gateway onto the bracket.
Alternative: If access space is limited, slide the gateway onto the bracket.
