Mounting on a DIN Rail
To mount the FX30 in a DIN rail:
1. Attach the DIN rail clips to the bracket as shown in Figure 2-8.
If you are mounting the FX30 on its edge, attach one DIN rail clip to the side of
the bracket.
If you are mounting the FX30 horizontally or vertically, attach two DIN rail clips
to the bottom of the bracket.

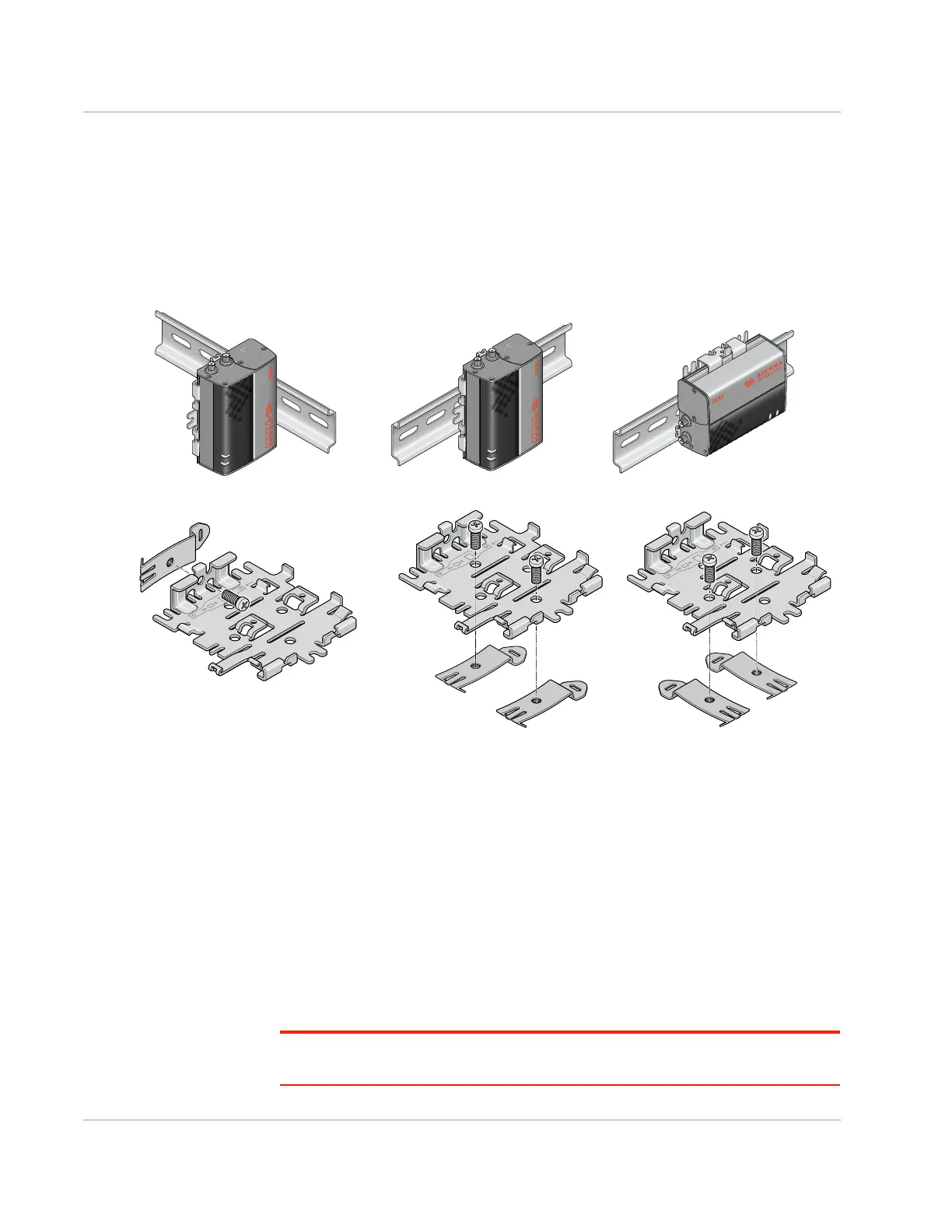

Figure 2-8: Attaching the DIN rail clips
2. Slide or snap the FX30 onto the bracket, as shown in Figure 2-4.
3. If the DIN rails are in a high vibration environment, see Optional—Mounting
in a High Vibration Environment on page 14.
4. Attach the FX30 to the DIN Rail. See Figure 2-8.
Replacing Existing Fastrack Supreme or
Fastrack Xtend Device
If you are mounting the FX30 in a location where you previously had a Fastrack
Supreme or a Fastrack Xtend mounted, attach the compatibility bar to the bracket.
The compatibility bar is available from Sierra Wireless.
Note: Adding the compatibility bar does not change the height of the gateway and
mounting bracket. See Figure 3-2 on page 46.
For this orientation, attach one DIN
rail clip to the side of the bracket.
For these orientations, attach two DIN rail clips to the bottom of the bracket.
