To attach the compatibility bar to the bracket:
1. Note the large and small raised tabs on the bracket. Each tab has a small
hole in the center of the raised portion. Also note the large and small rectan-
gular openings in the compatibility bar. See Figure 2-9.

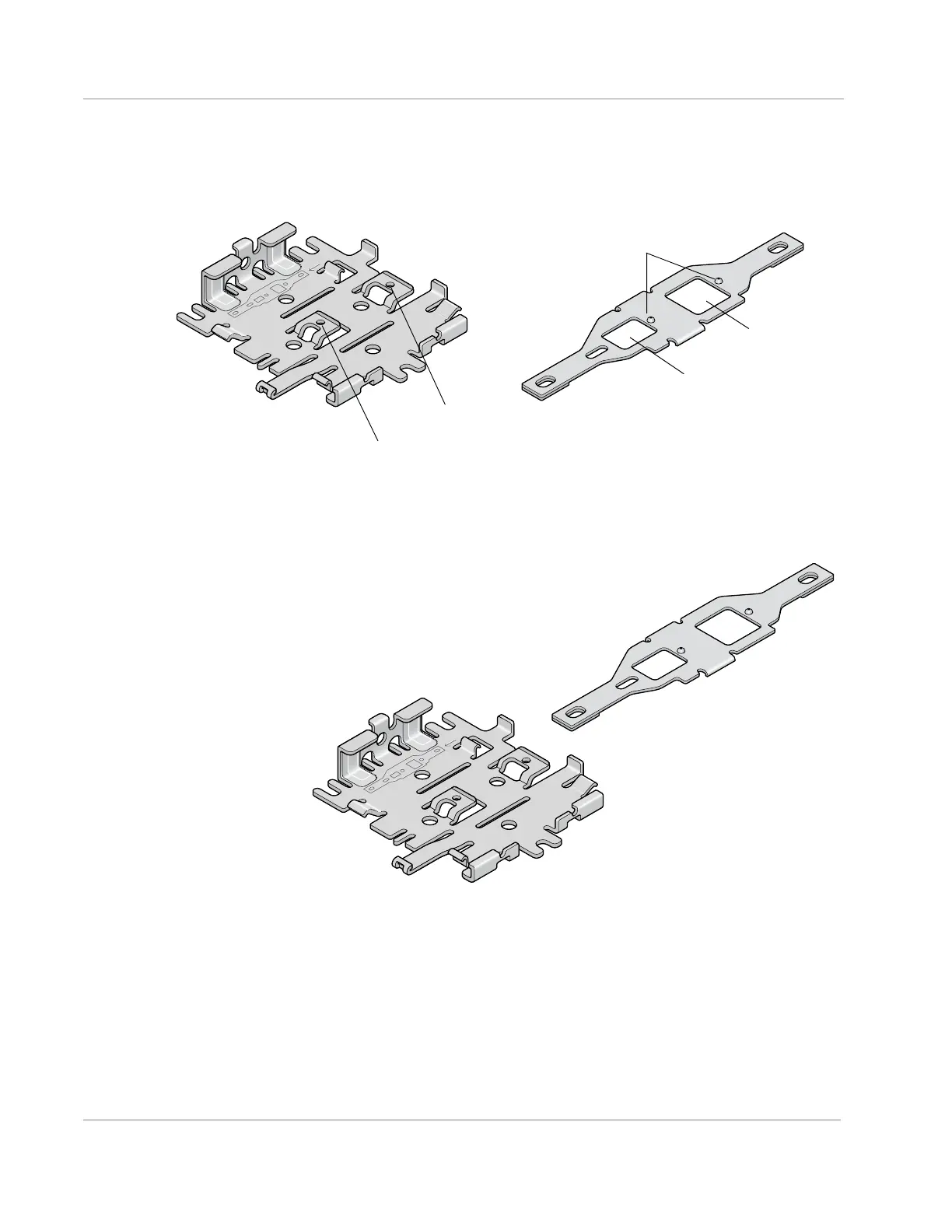

Figure 2-9: Mounting bracket and compatibility bar
2. Orient the mounting bracket and the compatibility bar as shown in
Figure 2-10.
Figure 2-10: Mounting bracket and compatibility bar orientation
3.
Place the compatibility bar on top of the bracket, so that the tabs on the
bracket are inside the openings in the bar, and slide the bar into place. When
fully secure, the knobs on the bar should be inside the small holes on the tabs.
Mounting bracket
Compatibility bar
Small raised tab
Small opening
Large opening
Small raised knobs
Large raised tab
with small hole
with small hole
