A: Accessories
DC Power Cable (Black Connector)
Components:

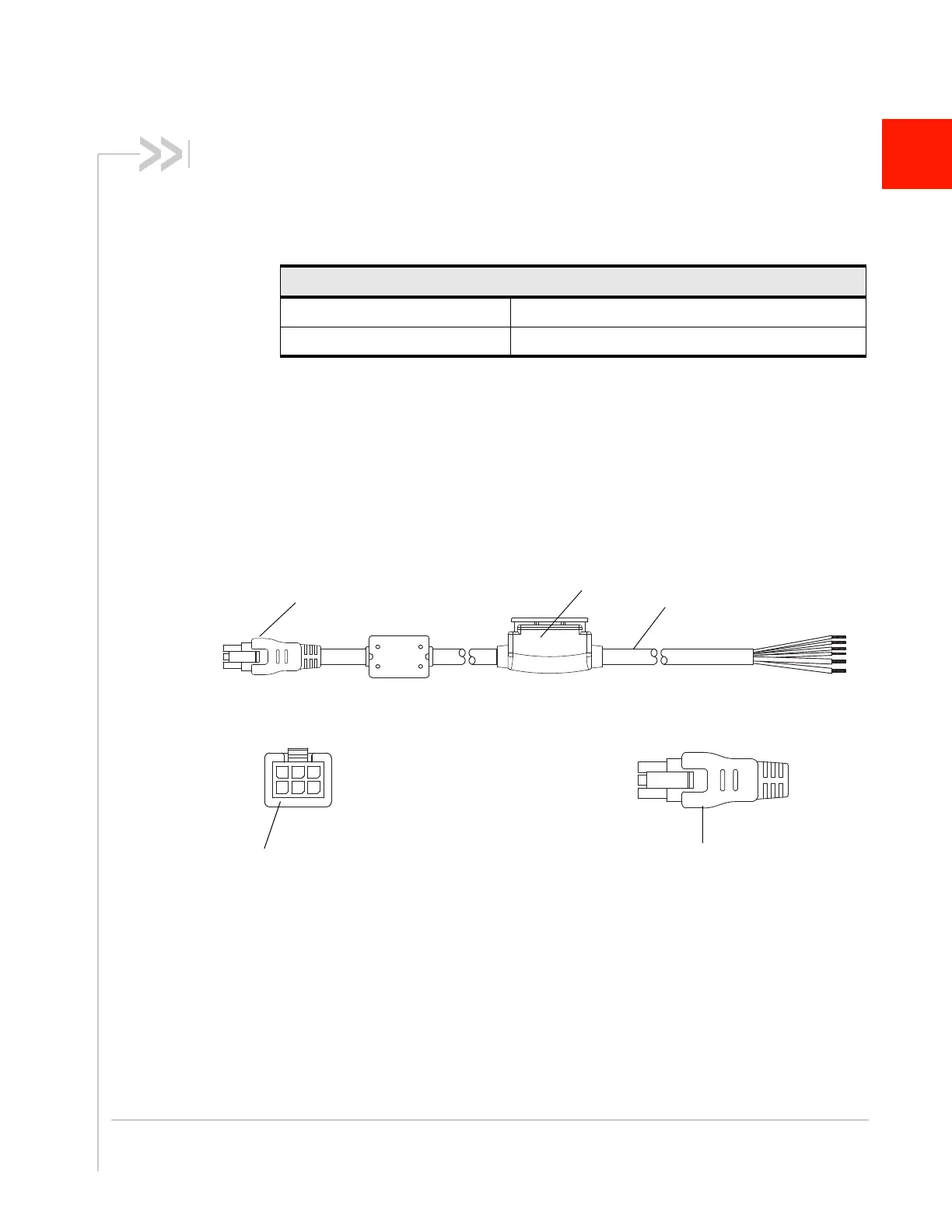

Figure A-1: DC Cable Specifications
Table A-1: DC Power Cable
DC Power Cable
Part Number 2001013
Product Release 2016

1 UL2464 20 AWG × 6 core cable

6 × Molex Micro-Fit 3.0™ series female crimp connectors (part number 43030-0001)

1 × Molex Micro-Fit 3.0™ receptacle housing, male, 2×3P Ph: 3.0 mm housing,
250 V, 5 A max, PA65 black UL94V-O (part number 43025-0600)
123
4
Power connector (end view) Power connector housing (side view)Pin Wire color
1
2
3
4
Red
Black
Orange
Green
3048 mm (10 ft.) core cable
Power connector housing
Fuse holder



Male housing
Female crimp terminals
5 6
5
6
Yell ow
Brown
