When developing an IoT Expansion card to use with the FX30, be aware that the
distance between the front SMA end plate and PCA front edge is 1.89 mm.

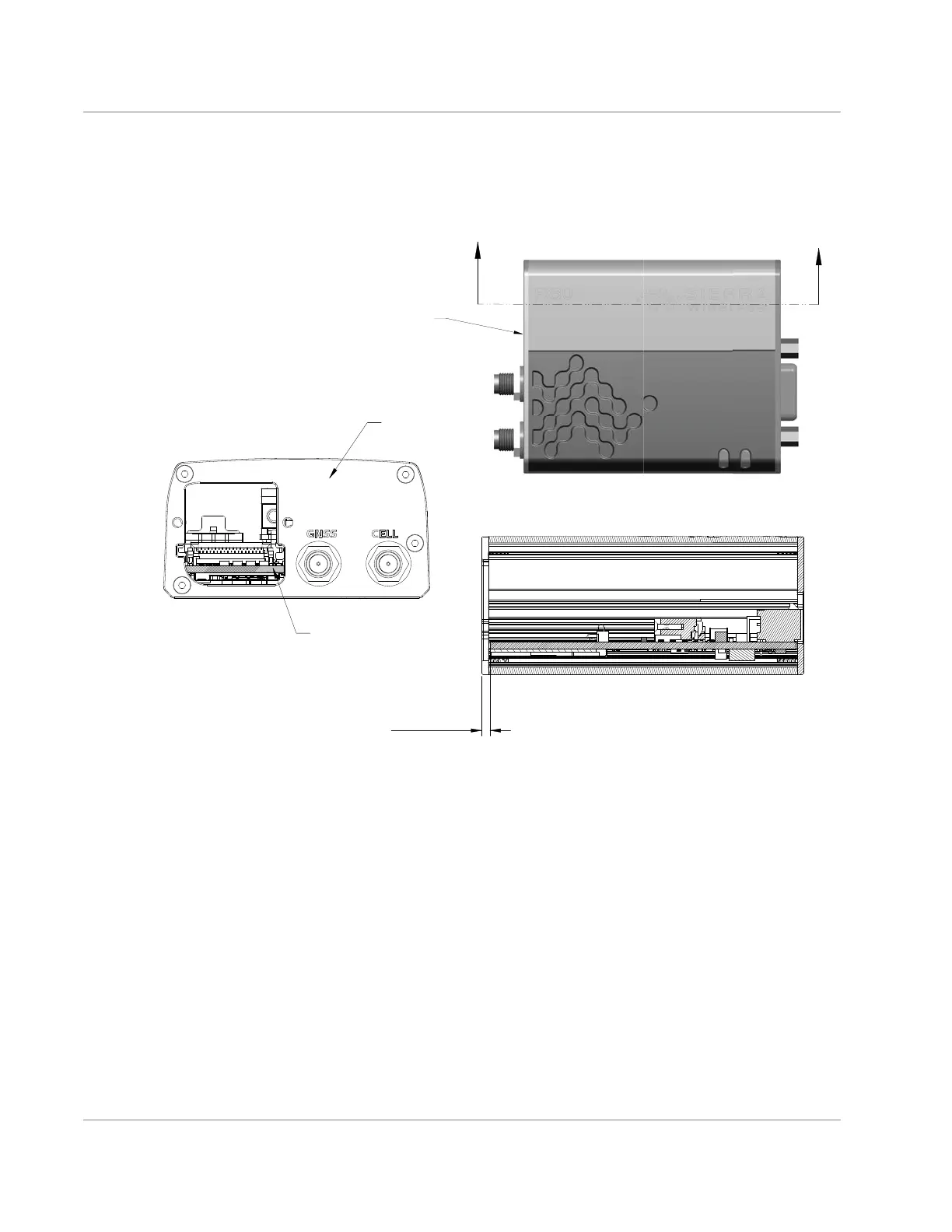

Figure 3-5: IoT Expansion Card Alignment
XSEC0001 XSEC0001
Front end plate
Front end plate
Front PCA edge
Front end plate to front PCA edge
Section XSEC0001 - XSEC0001
1.89 mm
