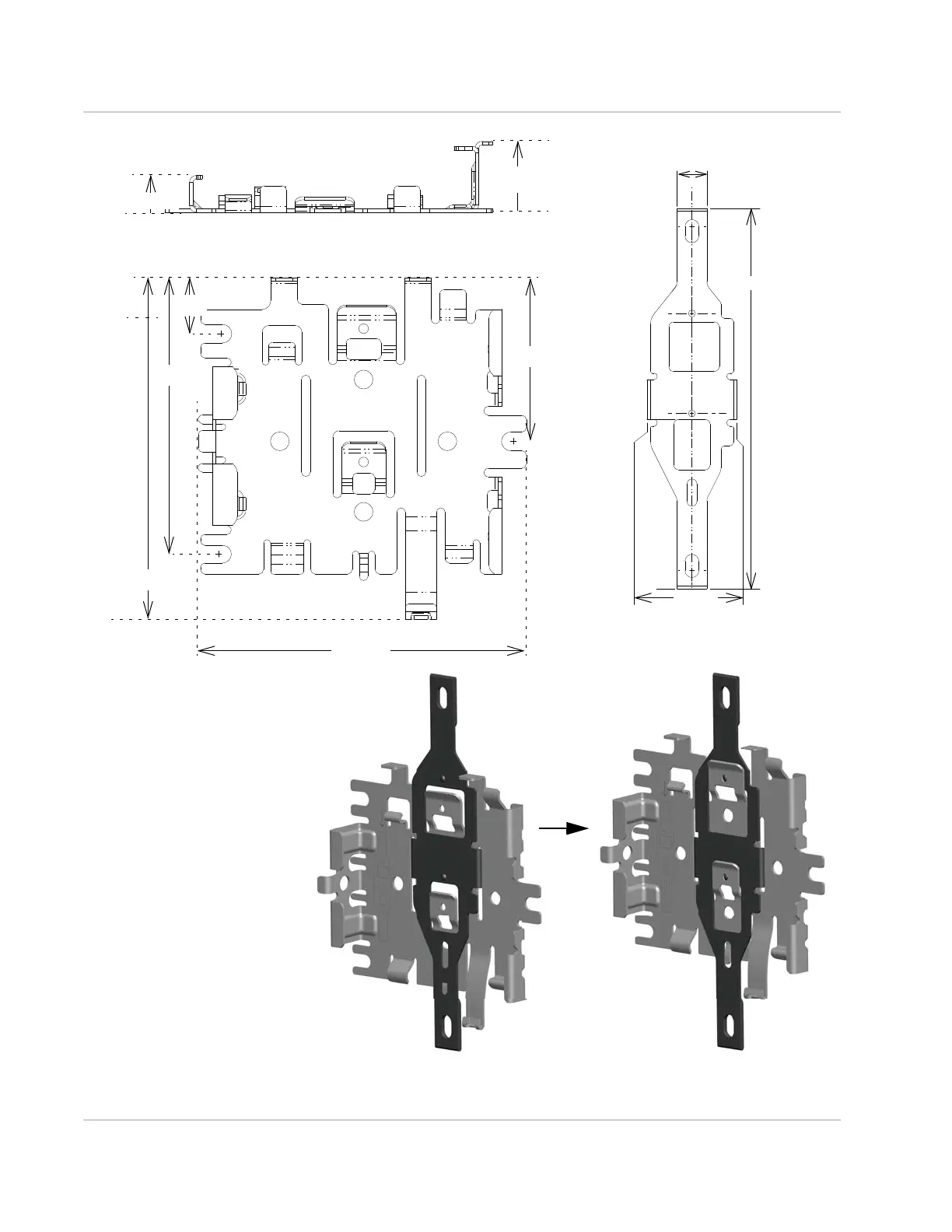

Figure 3-2: Mounting Bracket Mechanical Specifications
77.4 mm
12.7
37.1
62.7
73.7 mm
Mounting Bracket— top view
Mounting Bracket— side view
9 mm
25 mm
115 mm
0
16.1 mm
8.3 mm
Assembly
Compatibility bar
