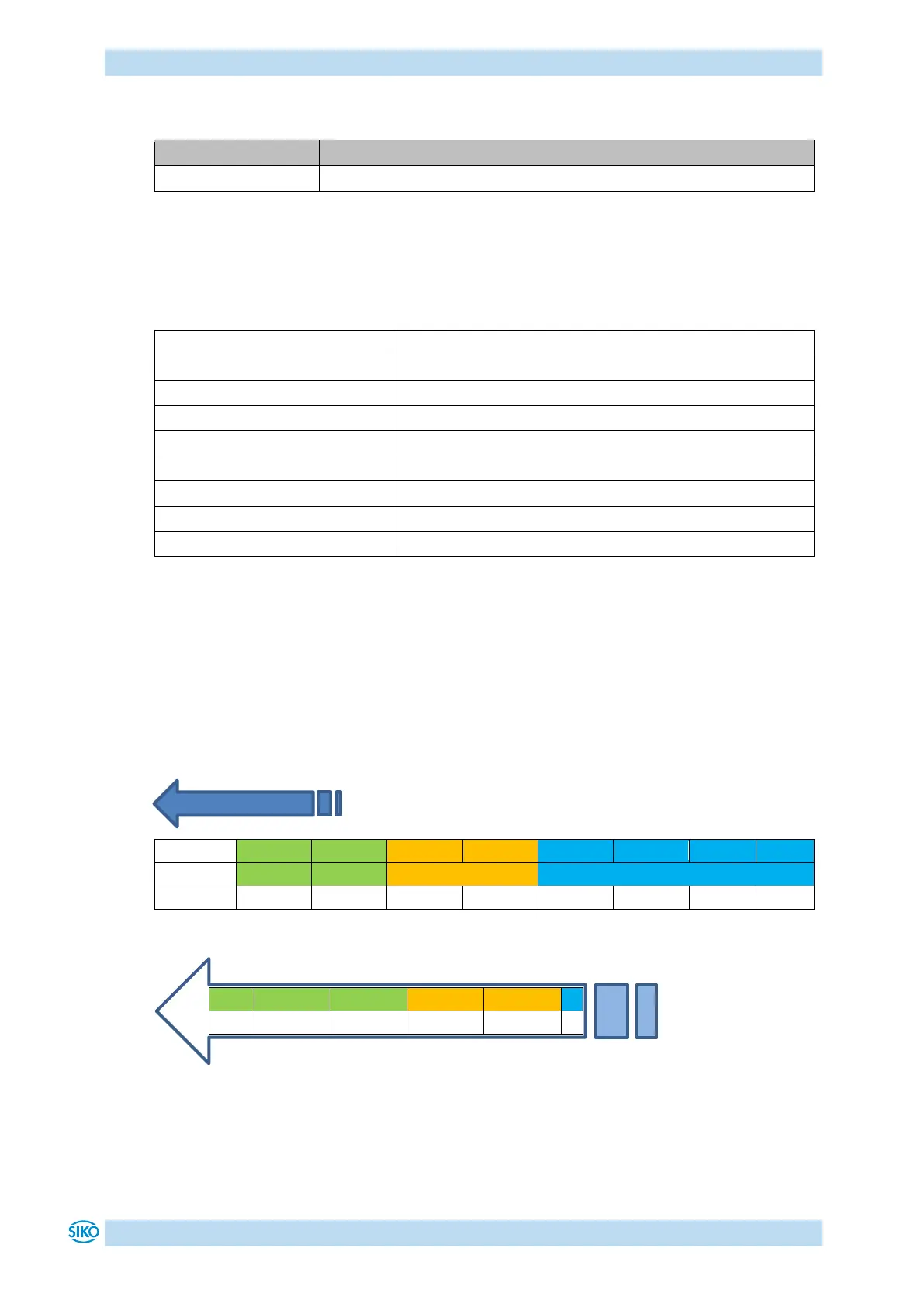

Parameter selection
Value
Description
0 … 255
Number of newly detected errors of this type that have occurred
5 IO-Link
The device description is available for download as IODD at www.siko-global.com and in the
IODD finder of the IO-Link Community.
IO-Link Version
V1.1
SIO-Mode
No
Port
Class A
COM-Mode
COM2 (38.4 kbits/s)
Min Cycle Time
9.2 ms
Process Data In
8 Byte
Process Data Out
8 Byte
Data Storage
Yes
Block parameters
Yes
Table 20: General Interface Information
5.1 Process data input / output
All process data are displayed within 8 bytes and have different significance depending on the
operating mode.
Transmission sequence:
Byte
0
1
2
3
4
5
6
7
Sub-index
18 … 11
10 … 3
2
1
Bit Offset
63 … 56
55 … 48
47 … 40
39 … 32
31 … 24
23 … 16
15 … 8
7 … 0
Table 21: Assignment of transfer sequence, sub-index and bit offset
Byte
0
1
2
3
Bit
63 … 56
55 … 48
47 … 40
39 … 32
Fig. 6: Transmission sequence
