Display and control elements
AP05 Date: 22.08.2022 Art. No. 90885 Mod. status 108/22 Page 7 of 50
The battery symbol is shown with a critical or insufficient battery status. If battery
voltage drops to a critical value, the battery symbol on the display will flash. If it falls below
the minimum value, the symbol will glow permanently.
With incremental measurement function activated, the incremental measurement symbol
is shown.
This is signaled in red letters in the event of a fault.

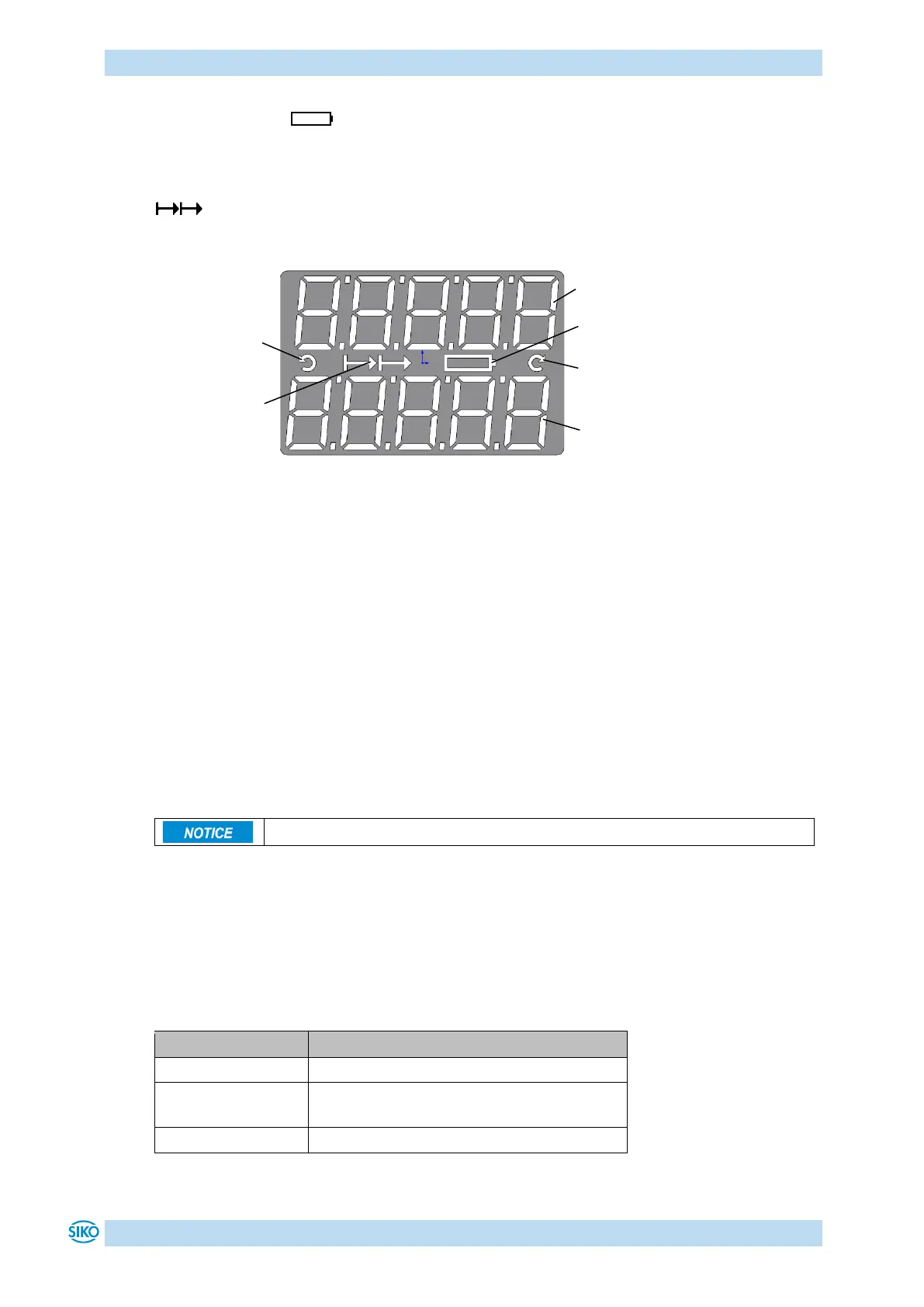

Fig. 2: Two-line 7 segment LCD display
2.1.1 Extended display range
Values up to -199999 can be displayed by means of the ControlWords (see
bc03_DisplayRange). If the relevant bit has been set and the value to be displayed is between
-199999 and -999999, then the negative sign and the digit of the highest order will flash
alternately. If the value range drops below -999999, "" will be displayed.
2.2 LED display
2.2.1 Device status
A test sequence is executed on these LEDs during initialization.
In its basic state (factory setting) the LED display has different meanings depending on the
operating mode (see chapter 3.1).
In order for LED1 or LED2 to be controlled via the ControlWord, this function of the LEDs must
be activated by means of parameters (see chapter 3.1.1.3, 3.1.2.1, 4.4 and 5.1).
2.2.2 Communication state
COM LED state
Description
green
Operating voltage OK
green,
blinks 90:10
Operating voltage OK
IO-Link SDCI communication active
off
Operating voltage too low
Table 1: COM LED state
Incremental
measurement
symbol
Counterclockwise
rotation direction
Display line 1
Battery symbol
Clockwise rotation
direction
Display line 2
