Simmons SD9K - Connection Panels; Rear Panel Connections

www.simmonsdrums.net
11
connection panels
Pad input jacks
InputconnectionsforKick,Snare,Tom,AUX,
CymbalpadsandHi-Hatcontrolpedal.
MIDI IN and OUT
These ports allow communication
with other products equipped with a
MIDIinterface.PleaseseetheMIDI
section of the advanced manual for details.
USB port
This port is used to connect to a
computer(MIDIIn/OutviaUSB).
Line output jacks
Stereo output connection to an
audio system or drum amplifier
suchastheSimmonsDA50or
DA200S.
Phone jack
Thisstereojackisusedto
connect headphones to the unit.
AUX input jack
Thisstereoinputjackisfor
an external sound source,
suchasanMP3orCDplayer.
Power switch
This switch turns the power
on and off.
DC input
ConnectionfortheDC
9Vpoweradapter.

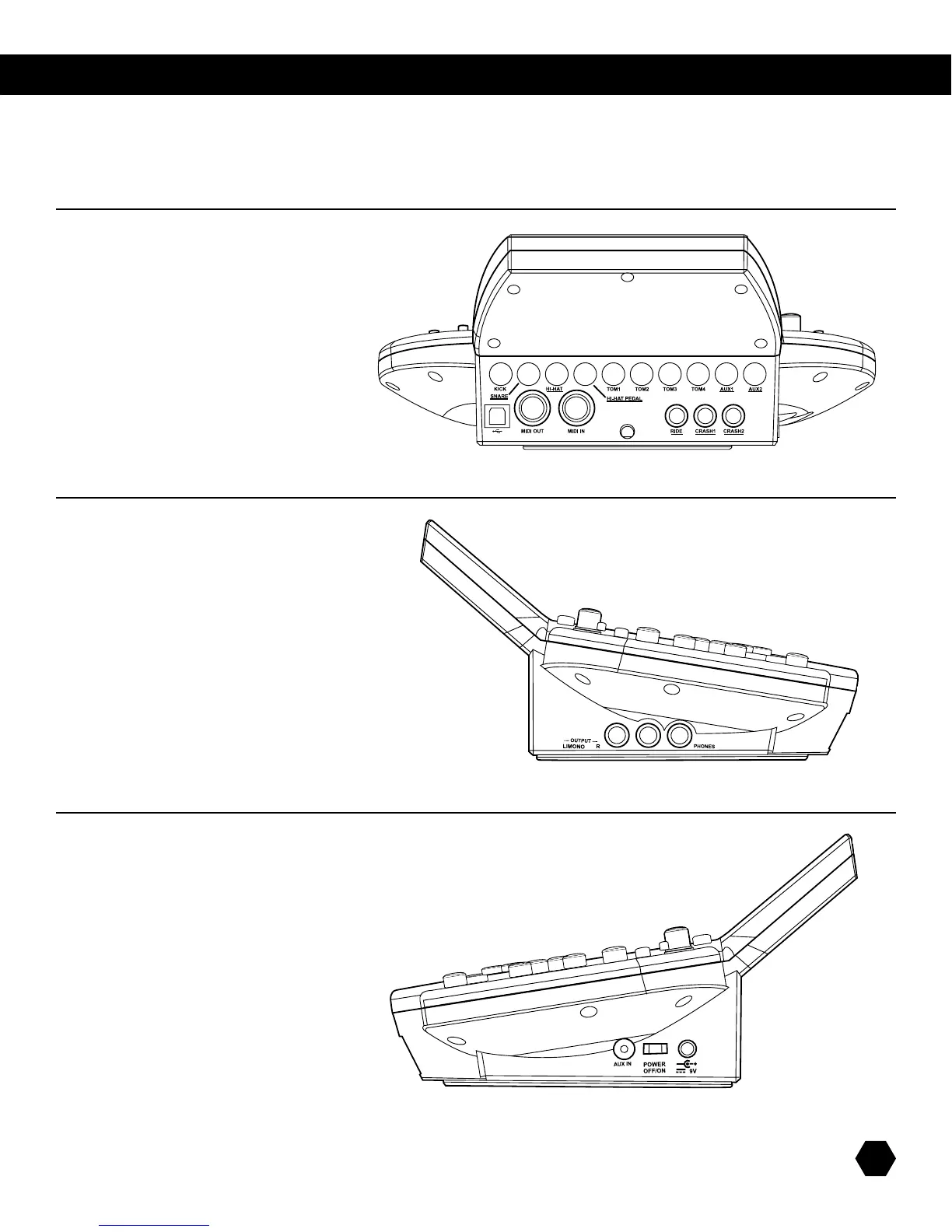

rear panel
left panel
right panel
