3.2.1 Fault Type
Fault Description of most likely cause
Head missing Detector Head has been removed from base Pg 14
Output Abnormal Detector output e.g. sounder is faulty Pg 18
Bad Answer (Static) Detector head or base is faulty Pg 16
Bad Answer (Intermittent) Two detectors reporting at the same address Pg 16
No Answer Detector / device missing (Complete head/base) Pg 13
Open Circuit Monitored circuit broken Pg 10
Short Circuit Monitored circuit or 24 volt supply shorted Pg 11
Node Missing Communication lost with specified panel
Degraded Style 7 The specified network loop is broken
Earth Fault The specified panel has an earth fault
Battery Fault The specified panel has a battery fault
Card Fault Specified panel has a card in fault
Pseudo status fault Specified panel needs to be checked
Miscellaneous fault Specified panel has a fault not include above

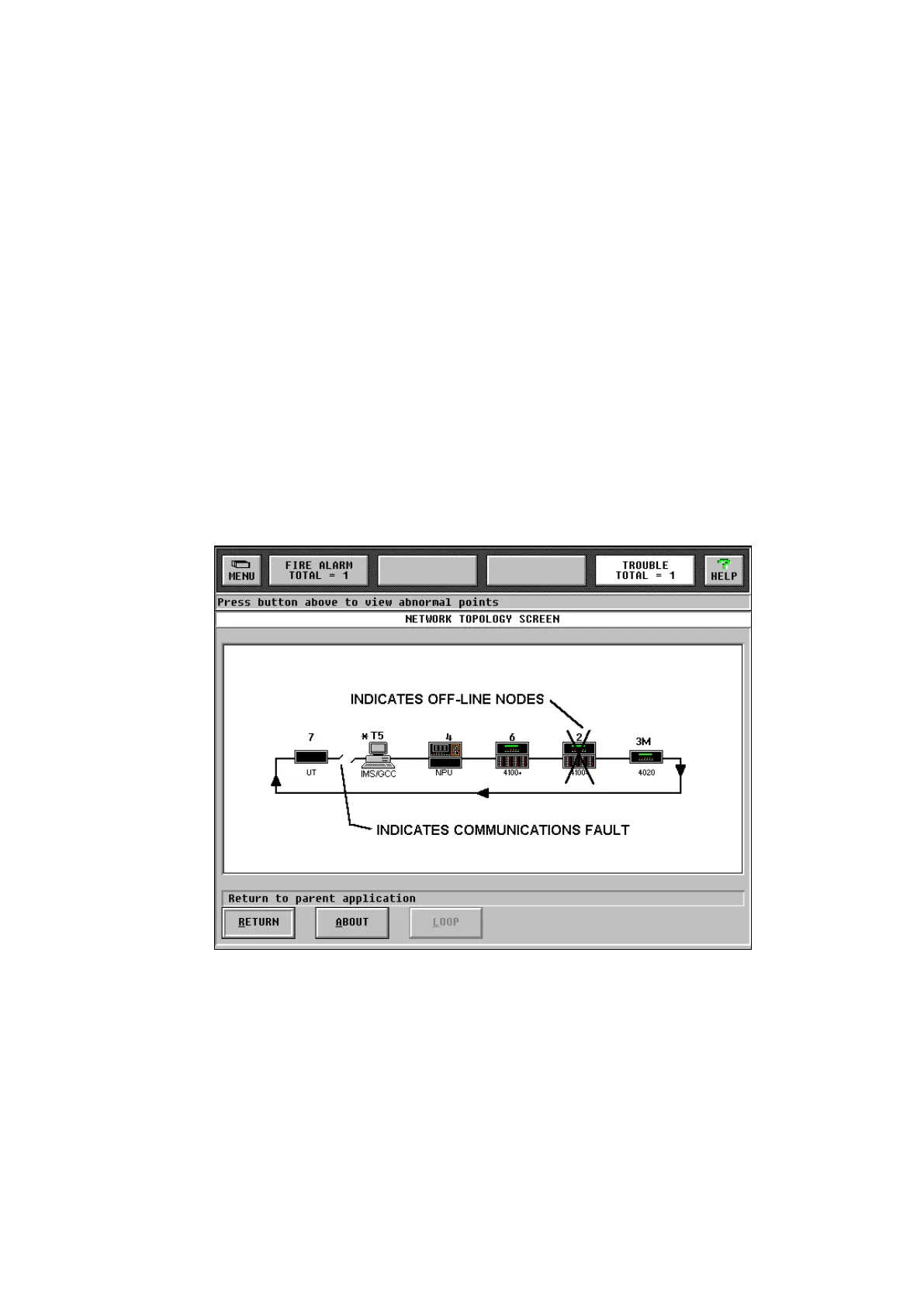

Network Diagnositcs showing Topology.
By clicking on each Icon, the panel details will be displayed

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
