Simplex 4100+ Guide

Page 7 of 60
1.1.1 Resetting 4100 Latched Faults & Rebooting CPU
When fault finding the Simplex® 4100U Fire Detection Panel some IDNet/MAPNet & RUI faults will „latch‟
and not clear without the use of the „System Reset‟ button (described on a previous page). If all else fails, to
clear latched faults or some networking issues it may be warranted to use a CPU Reboot otherwise known
as a Warm-Start.
To perform a Warm-Start, gain access to the CPU card. The CPU card is generally the only legacy card
(vertically mounted) with its components side facing in a different direction (relative to other cards mounted in
a similar fashion) – otherwise it will be the only card in the panel with a small, flat and round ram battery

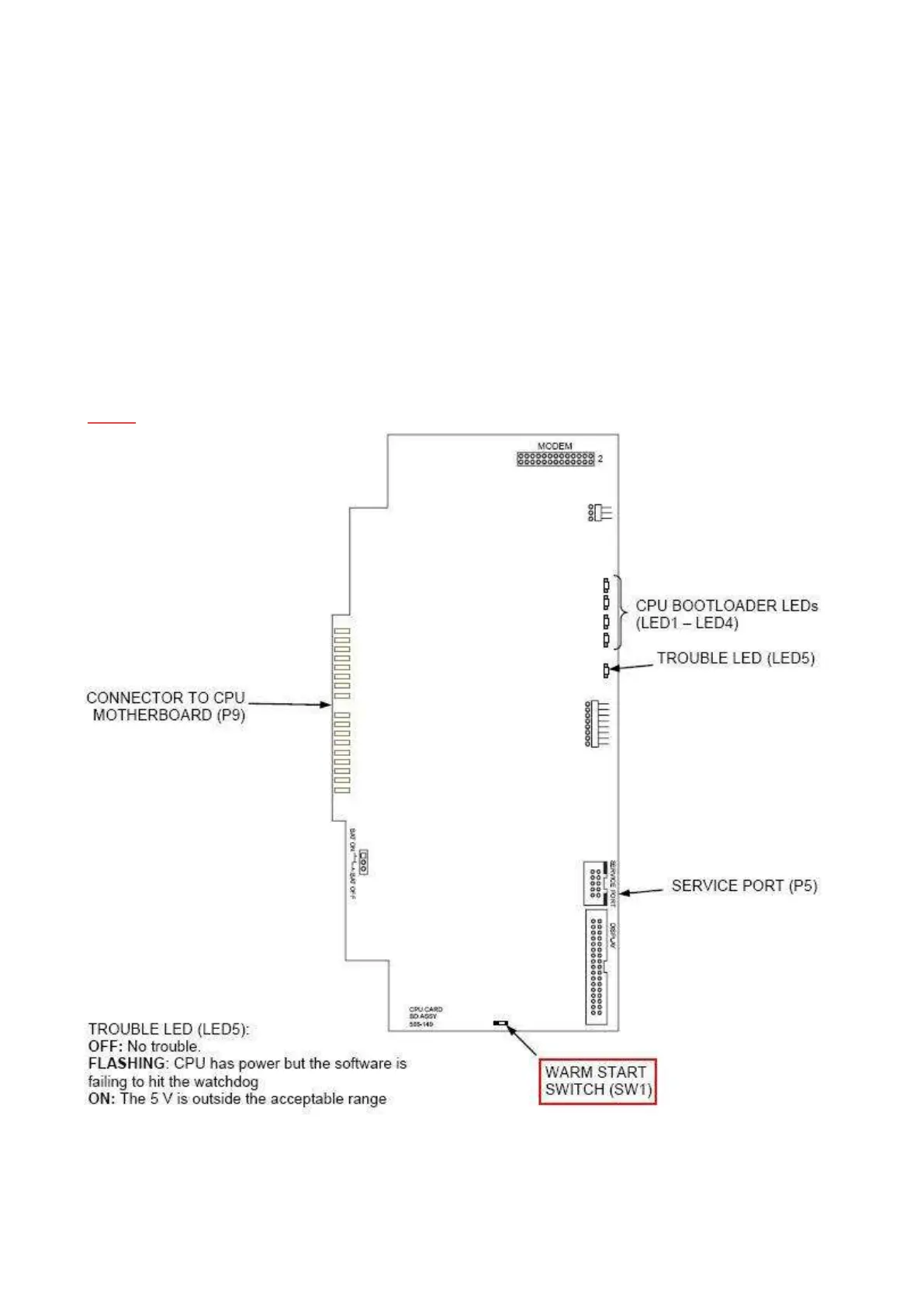

located on it. Once located, find the small push-button switch located on the bottom edge of the card (4100U
CPU card shown below). Push this button and the panel will then reinitialize. Allow 2-5mins for the panel to
become fully active and re-establish communications with all its associated devices.
NOTE: Starting the panel from a powered-down state is referred to as a cold-start.

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
