5.7 PA Speech, Spare Speech, WIP Speech, Comms
and Spare Comms Cable Faults
PA Speech Cable Faults, Spare Speech Cable Faults, and WIP Speech Cable Faults refer to the connections
between SPIF cards and Secondary ECPs and equipment racks (remote units). As can be seen in the Figure
below, the PA Speech, Speech Backup, and WIP Speech terminals will correspond to the respective Fault on the
ECP System Fault Display.
NOTE: Any WIPS Module Failure or WIP Speech cable fault will activate ‘WIP SYSTEM FAULT’ LED on
the ECP System Fault Display. The LED will flash while unacknowledged and be steady for a
latched or acknowledged fault.

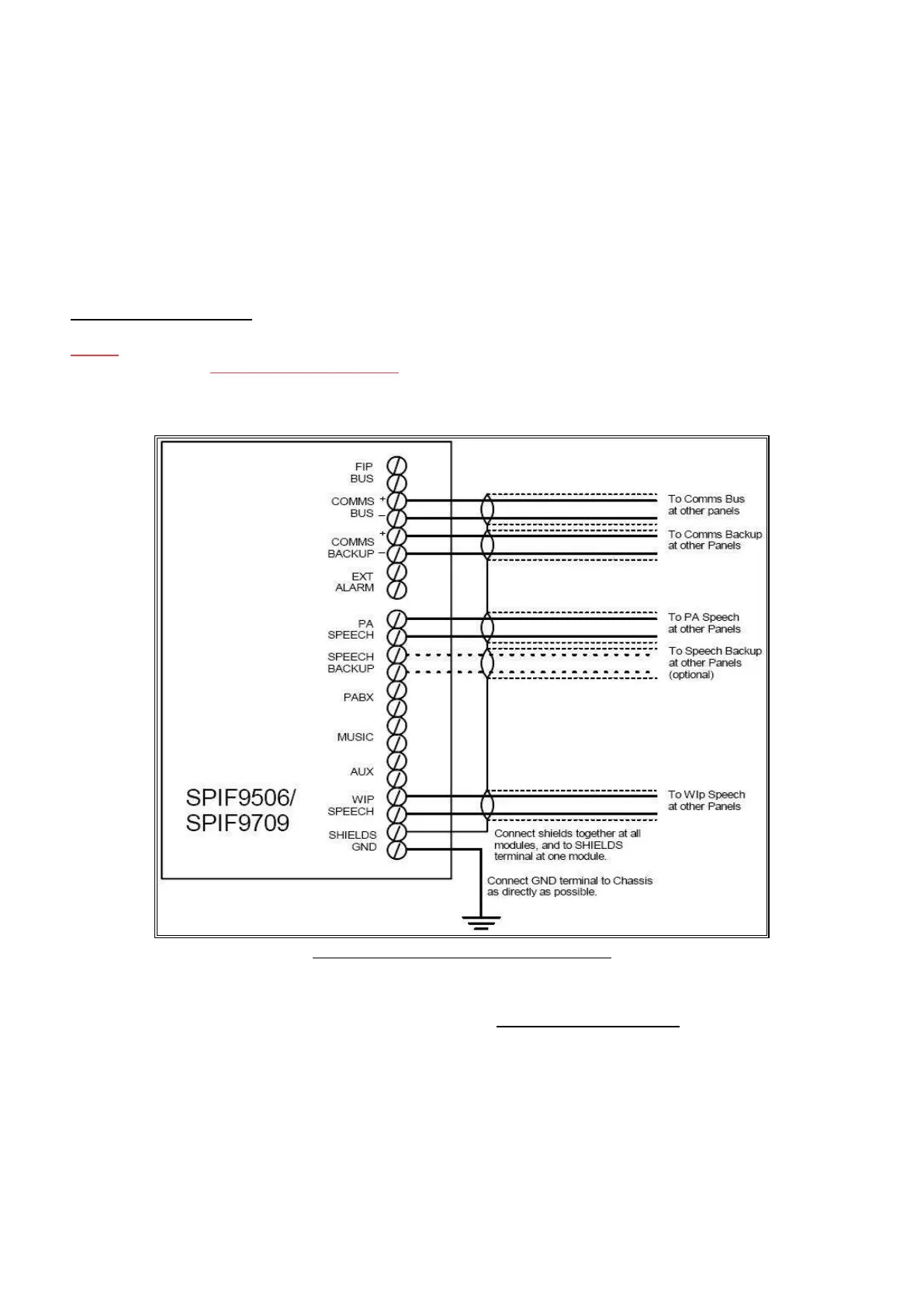

SPIF9506/SPIF9709 Wiring Diagrams
Comms Cable Faults and Spare Comms Cable Faults on the ECP System Fault Display are related to the loss of
communications between SPIF interfaces. The COMMS BUS and COMMS BACKUP terminals on a SPIF card
(shown above) are relating to Comms Cable Faults and Spare Comms Cable Faults, respectively.

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
