5.5 BGA or FIP Fault
A 10V Zener Diode type BZT03-C10 (Normally open input type only) is required as Input End-of-Line. The Zener
diode is required to maintain Line Monitoring. The diode must be connected with the cathode (i.e. the end marked
with a band) to the positive input (Please see „Termination Points and Example Wiring‟ figure shown below).
Inputs that are programmed as General Purpose (GP) inputs do not need the zener diode end of line.
Cables should have a wire gauge of at least 0.75mm
2
and should not be longer than 1000m.

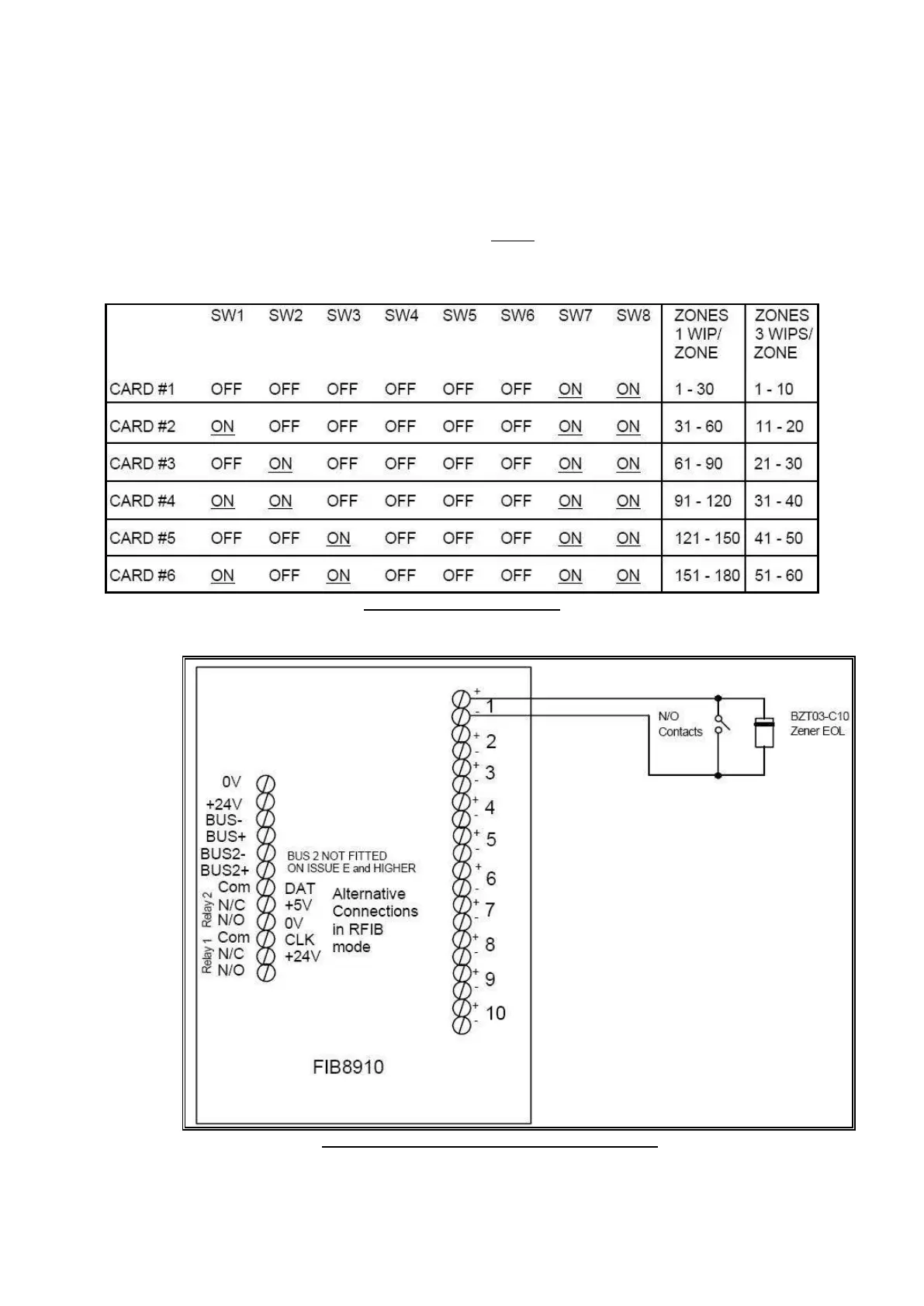

Table 5: DIP Switch Settings
The FIB8910 Fire Indicator Panel/Break Glass Alarm Master Module has only a single Status Indicator LED which
indicates 24V Power Supply to the card.
FIB8910 Termination Points and Example Wiring

Simplex 4100+ Specifications

General

Type	Addressable Fire Alarm Control Panel
SLC Loops	Up to 10
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	10% to 93% non-condensing
Display	LCD
Communication	Ethernet
Power Supply	120/240 VAC, 50/60 Hz
Battery Backup	24 VDC
NAC Outputs	Expandable
Releasing Capability	Yes, with releasing modules
Max Notification Appliance Circuits (NACs)	Varies by modules
Max Releasing Circuits	10
Communication Ports	Ethernet
Max Devices	3, 000
