CP42/50/52 Installation and service Chapter 10
113
10.4 Place of installation of display unit
The display unit can be installed on desktop, wall surface, or ceiling. Determine
the place to install the display unit that is convenient for navigation and general
operation after considering the following suggestions:
- a place where you can see the ship’s bow when you raise your eyes from the
display.
- a place where there is limited exposure to direct sunlight – see environment
temperature limits in 10.12 Specifications.
- a place where there is good ventilation and minimum vibration.
- a place where the minimum distance to a magnetic compass is 500mm (20”).
10.5 Installation of Dual Station DS40/42/50/52
The DS models are remote control units for the CP40/42/50/52 DGPS Chart-
plotter. The units with the same model numbers are identical in size e.g. DS42
and CP42, so the same installation guides can be used when performing the
installation. When choosing a dual station, the unit does not have to match the
main unit in size, as all the mentioned units are compatible.

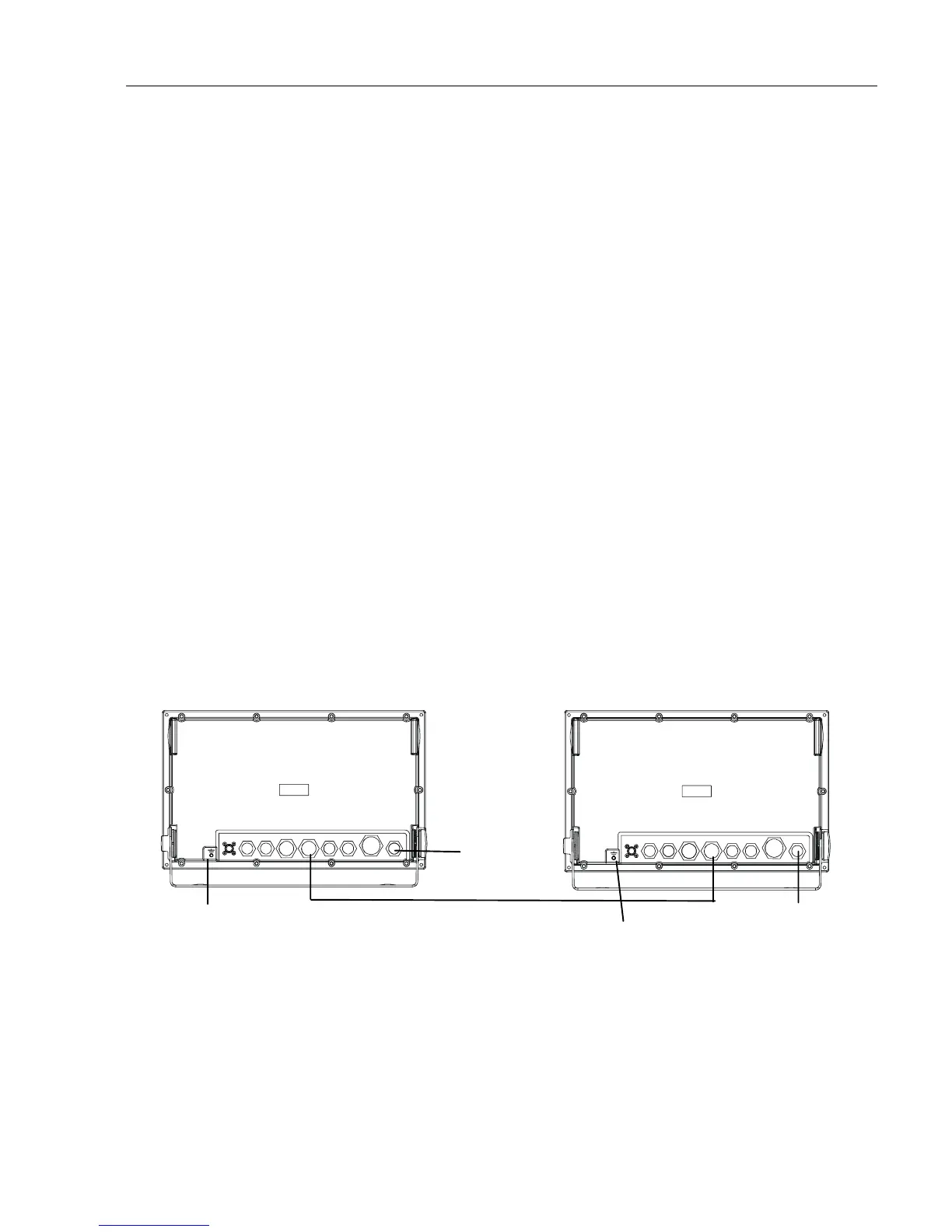

CPXX DS40/42/50/52
Power
Ground 15 meters of cable (not extendable) Power
Ground
A special connection cable of 15 meters with two male plugs is supplied with the
DS42/50. Push one of the male plugs into the receptacle marked NMEA1 on
the back of the main unit and the second into the dual station. The NMEA1
interface from the main unit is transferred to the dual station via the connection
cable and is available on the dual station’s NMEA2 receptacle.
) Refer to section 10.7 for details on pin numbers.
ANT W IND AL AR M N M EA2 N M EA1 E CHO1 E CHO2 R AD AR P W R
ANT WIND ALARM NME A2 NME A1 E CHO1 E CHO2 R ADAR PW R
