CP42/50/52 Installation and service Chapter 10
114

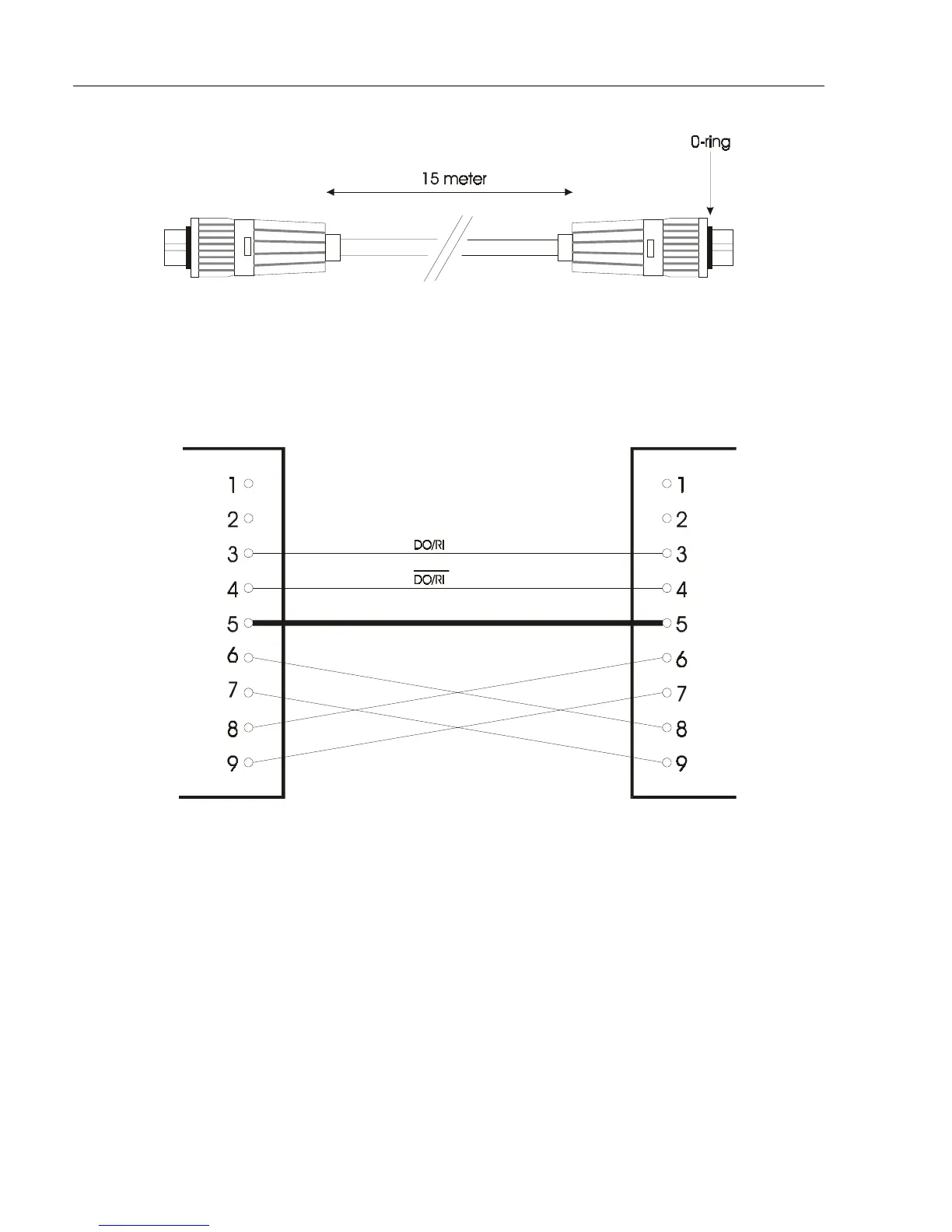

The connection cable between the dual station and the main unit is a special pair-
twisted cable of 15 meters (not extendable), which consists of the following
wires:
104.3002.023
10.5.1 Operation of DS40/42/50/52 Dual Station
The main unit and the dual station operate in parallel.
All key commands are relayed to the main unit – CPXX – and the display picture
is instantly transferred back via a high speed data link.
Adjust light/contrast in screen and background light in keypad via the [PWR]
key.
Eject keys and cartridge drawers are blinded, and can not be opened on dual
station.
