CP42/50/52 ECHO menu Chapter 7
83
7. Echo menu
_5_
ECHO
_1_ Depth & temperature diagram
The depth and temperature “instru-
ment” provides a graphical presen-
tation of depth and water temperature
from external equipment in relation
to time or distance.
7.1 Depth & temperature diagram
MENU
Call up the menu bar, and…

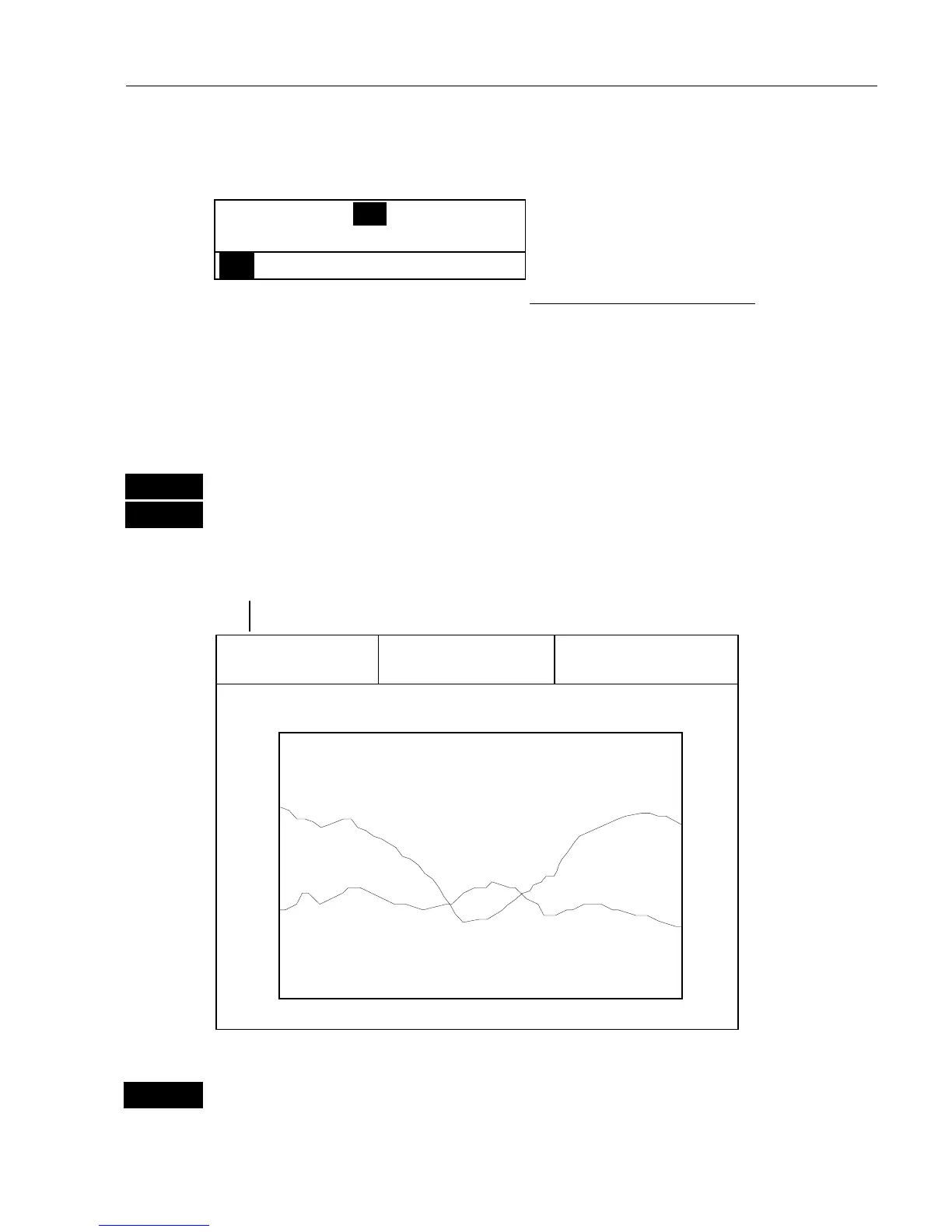

5,1
load Depth & temperature diagram
Present water temperature.
8.3°C 12:05 27.2m
[°C] 7:00 7:05 [m]
30 - - 0
- 25
20 -
- 50
10 -
- 75
0 - - 100
Alarm: min 10 m ON. max 100 m OFF
Present depth.
Depth over
time or
distance.
Temperature
over time or
distance.
Depth alarm
setting.
ENT
Call Setup for depth display
- see next page.
