CP42/50/52 Fundamentals & initial start-up Chapter 2

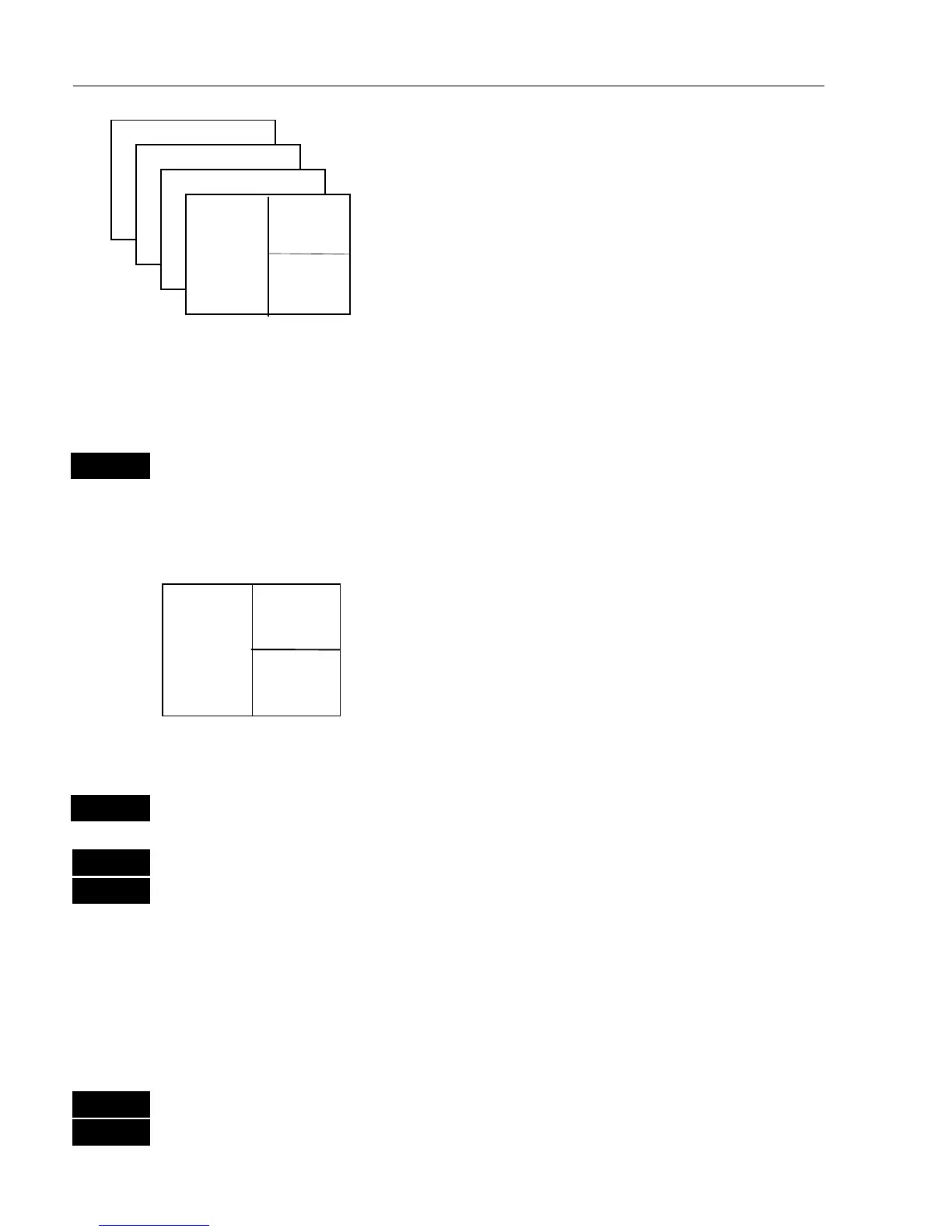

As many as 4 screen combinations or full

screens can be saved in 4 pages (layers).

Press the

[PAGE] key to toggle between the 4

pages, or hold the [

PAGE] key depressed for

two seconds to start a rotation of the 4 pages.

Press [

PAGE]

again to return to manual

operation.

To mix and match the various chart and data displays you wish to have

in the PAGE and WINdows presentation, you will first need to know

what is pre-set from the factory:

PAGE

Scroll through the four pre-set pages to see if you wish to exchange

any of the displays with a different one.

Example of how to edit a pre-set page:

window

We pretend that in this page, window 2 contains the

navigation display (highway), window 3 a chart

display in a large scale for overview, and window 5

a chart display in a smaller scale to enlarge a

certain area.

You now wish to insert the Position display in window 3 instead of the

chart display. This is the procedure:

WIN

Press the

[WIN]

key until the frame around window 3 is highlighted

Call up the menu bar, and…

2,1

then call up the POS menu and select “Position”

- you will now have the Position display in window 3 instead of the

chart display.

Example of how to edit a full screen to four ¼ displays:

We pretend that you are looking at a full screen which you wish to

divide into four ¼ displays. This is the procedure:

First call up the menu bar, and…

then call up the POS menu - see example next page.
