401925/C

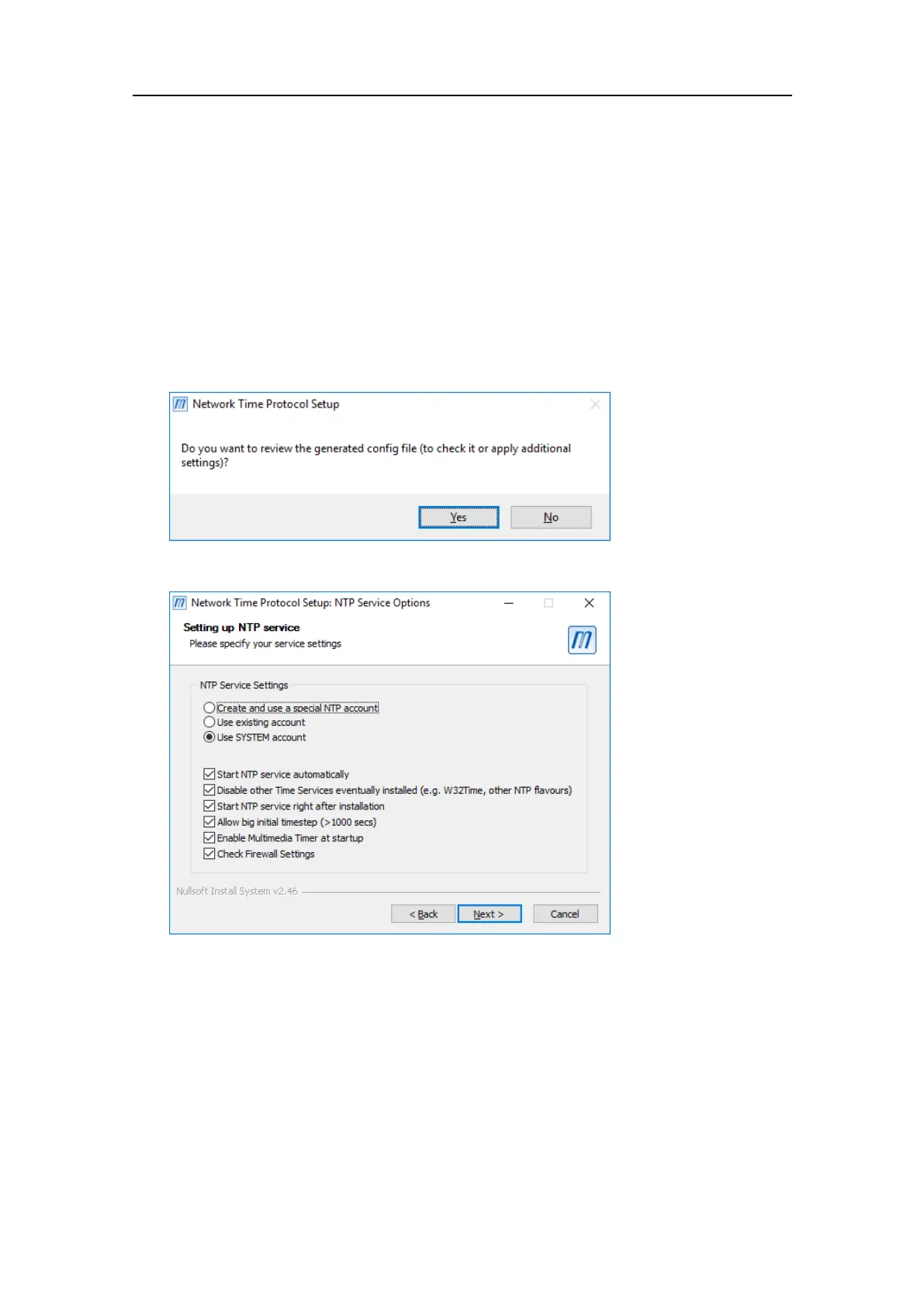

•Createaninitialcongurationlewiththefollowingsettings

•PredenedpublicNTPservers:None.

•SpecifytheNTPserverIPaddress:10.124.24.200

•Usefastinitialsyncmode(iburst)

•Addlocalclockasalastresortreference,Stratum:12

SelectNexttocontinue.

8SelectNofornotreviewingthegeneratedcongle.

9SelectservicesettingsintheSettingupNTPservicepage.

Selectthefollowingoptionsbycheckingthecheckboxes:

•SYSTEMaccount

•StartNTPserviceautomatically

•DisableotherTimeServiceseventuallyinstalled(e.g.W32Time,otherNTPavours)

•StartNTPservicerightafterinstallation

•Allowbiginitialtimestep(<1000s)

•EnableMultimediaTimeratstartup

•CheckFirewallSettings

Secondaryprocedures

Table of Contents3
Introduction5
Purpose5
Personnel and Location5
Tools and Test Equipment5
Acceptance Test Summary7
Hardware and Software Registration8
Verification of Previously Tested Items8
Software Items9
Hardware Items10
- Display10
- Processor Unit10
- Transceiver Unit11
- Transducers12
- Ethernet Switch13
- EC150-3C Power Supply Unit13
Software Licenses14
Transceiver Hardware and Software Versions15
Visual Inspections16
Inspecting Logistic Items16
Visual Inspection of the Display17
Visual Inspection of the Processor Unit19
Visual Inspection of the Wide Band Transceiver (WBT)21
Visual Inspection of the WBT Cabinet23
Visual Inspection of the EC150-3C Power Supply Unit24
Testing the Ek80 Operational Functionality27
Functional Test of the EK80 Wide Band Scientific Echo Sounder27
Functional Test of the EK80 with EC150-3C30
Measuring Noise in Passive Operating Mode32
Reading the Transceiver Hardware and Software Versions34
Verifying the Communication with the Course Gyro35
Verifying the Communication with a Navigation System (GPS)37
Verifying the Communication with Speed Log39
Verifying the Communication with the Motion Reference Unit (MRU)41
Verifying the Communication with a Synchronization System44
Customer Acceptance Form46
Secondary Procedures47
Turning on the EK8048
Turning off the EK8049
Verifying that the Bottom Is Correctly Detected50
Switching between ADCP and Echo Sounder Operation51
Defining the Raw Data Recording Parameters52
Recording Raw Data54
Selecting Replay Mode55
Choosing Which Raw Data File(S) to Replay56
Defining the Processed Data Recording Parameters58
Recording Processed Data59
Installing One or more Transducers61
Installing Transceiver Channels64
Checking the Data Transfer on an External Interface Line66
Reading the Transceiver Hardware and Software Versions68
Installing and Troubleshooting Network Time Protocol (NTP)70
- Installing Network Time Protocol (NTP)70
- Installing Network Time Protocol (NTP) Monitor74
- Troubleshooting the Network Time Protocol (NTP) Service78
