Sinoboom AB16EJ Plus - Device Components

© Mar. 2023 128 AB16EJ Plus Maintenance Manual
OPTIONS
Device Components

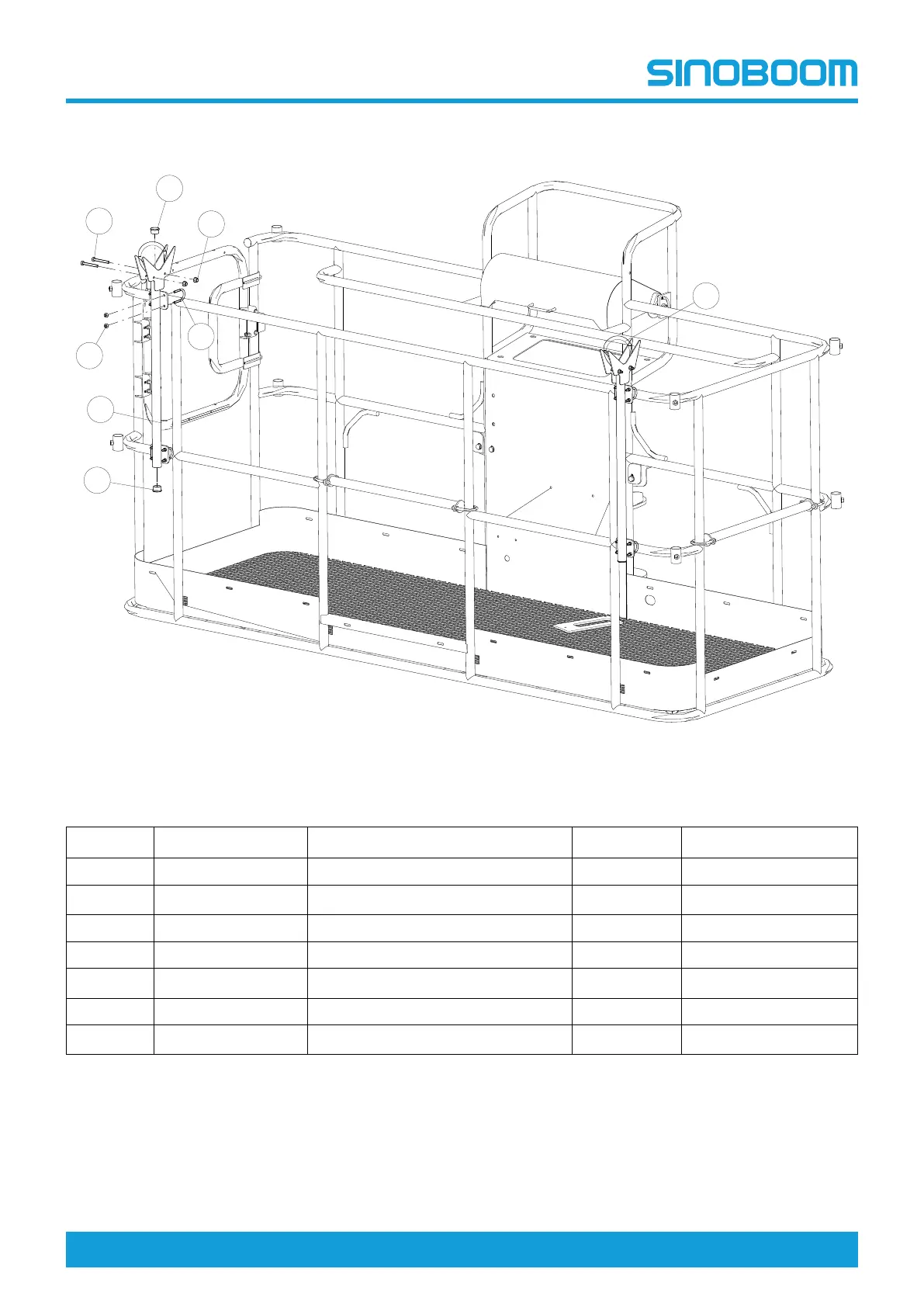

Fig 8
Table 11-5
No. Part Number Part Name Quantity Comment
1 215030000107
Nut M6-8-ZnD GB/T 6183
4
2 105064043177 Pipe seal 4
3 215010000055
Bolt M6×50-A2-70 GB/T 5783
4
4 215030000004
Nut M6-A2-70 GB/T 6170
18
5
105064043123 Pipe support weldment 1
6 105064043020 U-bolt 8
7
\ Strap 400mm*25mm 2
5
4
2
2
3
1
6
7
