Device Components

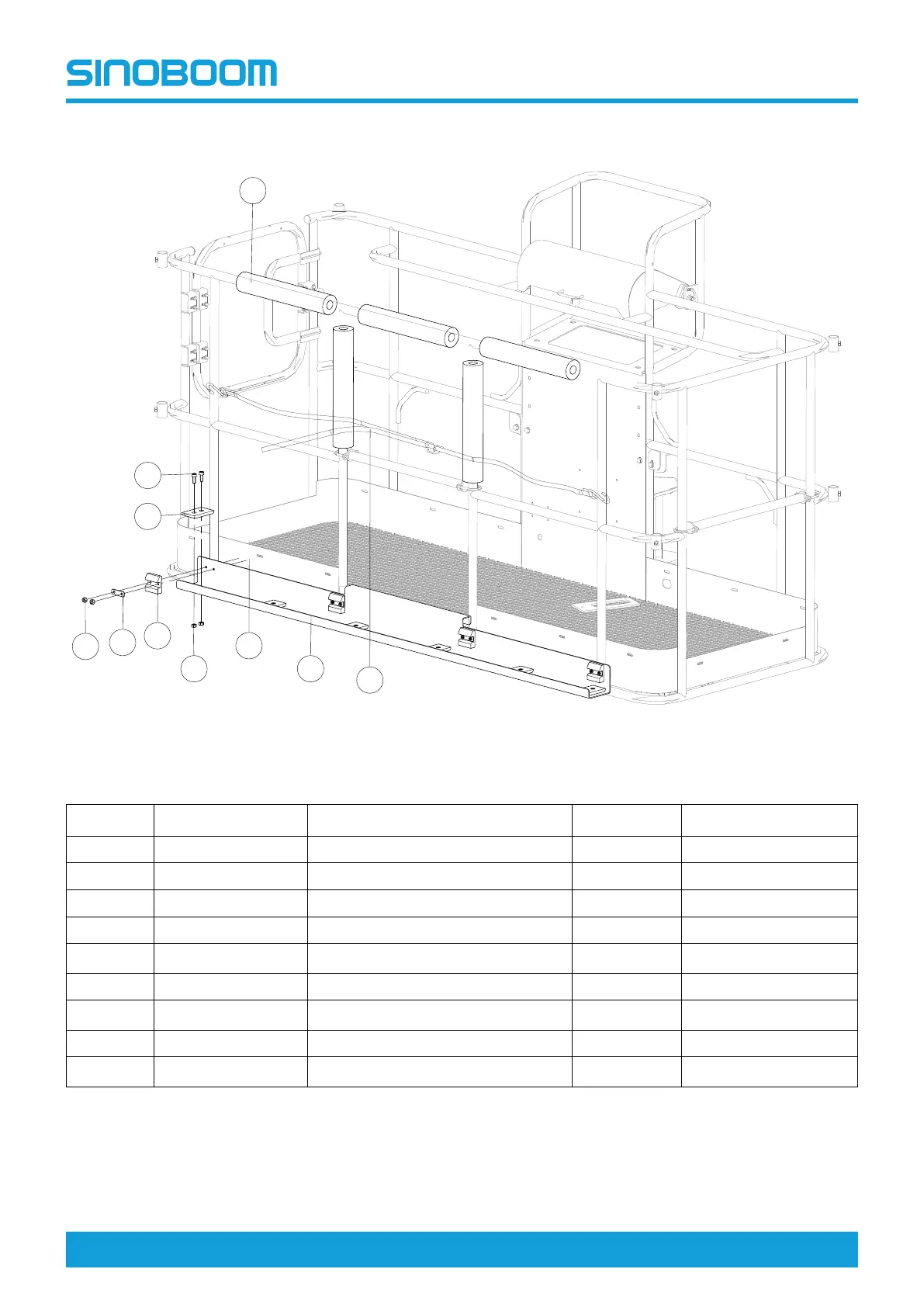

Fig 10
Table 11-7
No. Part Number Part Name Quantity Comment
1 216030003000 Anti-collision hose
5
2 215020000011
Screw M6×16-A2-70 GB/T 70.1
12
3 105064043024
Cushion block
6
4 215030000004
Nut M6-A2-70 GB/T 6170
20
5
105064043178 Cushion plate
4
6 105064043136 Vertical cushion block 4
7
105064043017 Mounting plate 1
8 105064043020 U-bolt 4
9
\ Strap 3000mm*25mm
1
7
3
6
4
8
2
4
1
5
9
