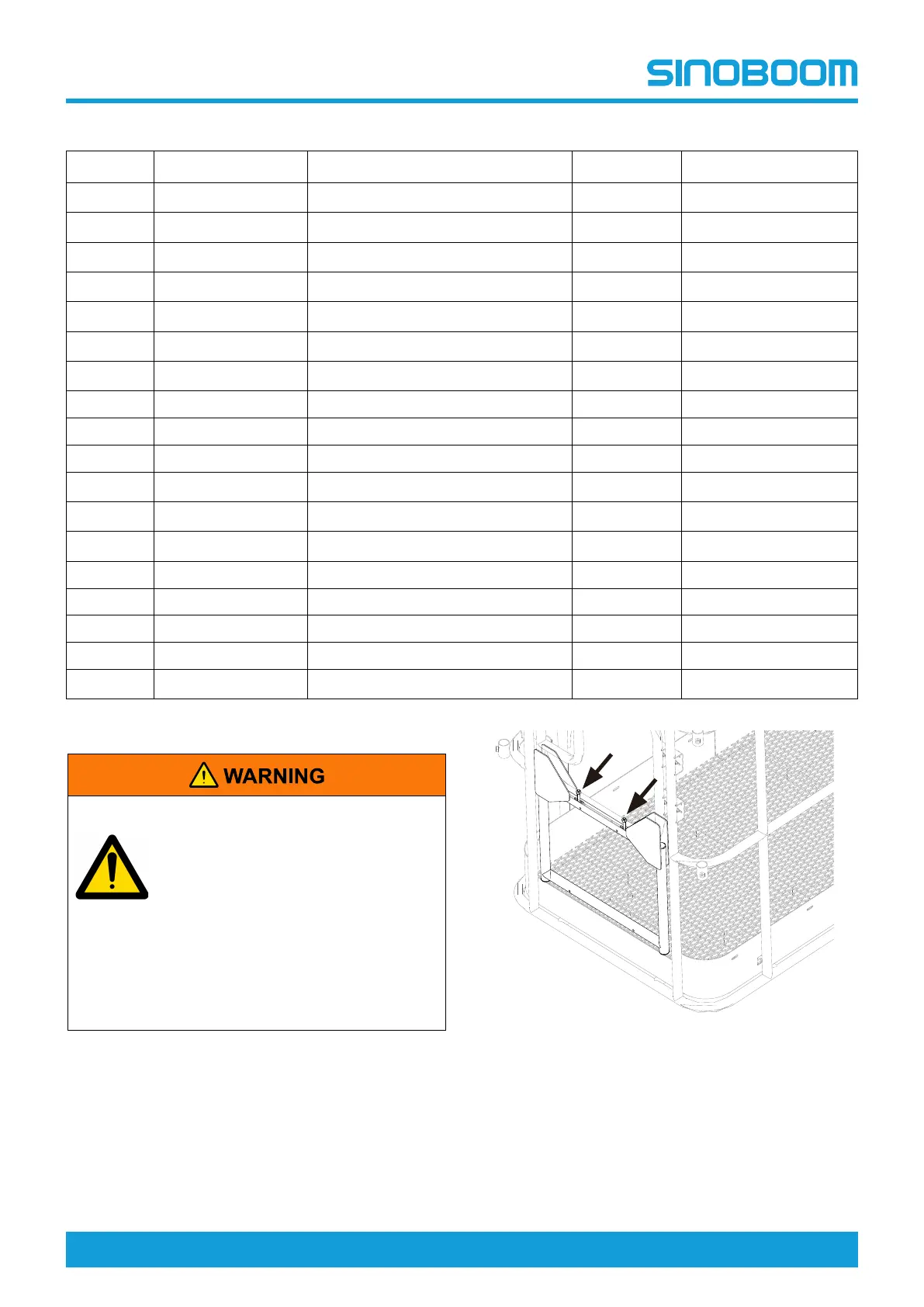

Sinoboom AB16EJ Plus - Installation and Removal

© Mar. 2023 136 AB16EJ Plus Maintenance Manual
OPTIONS
Table 11-10
No. Part Number Part Name Quantity Comment
1 105064043106
Side fence plate
1
2 105064043109 Front right fence plate 1
3 105064043110
Front left fence plate
1
4 105064043114 Upper side fence plate 1
5
105064043103
Lower gate frame weldment
1
6 105064043107
Lower side fence plate
1
7
105064043177 Pipe seal 4
8 215010000050
Bolt M6×16-A2-70 GB/T 5783
17
9 215040000033
Washer 6-A2 GB/T 97.1
23
10 215030000004 Nut M6-A2-70 GB/T 6170 23
11 105064043108 Rear left fence plate 1
12 105064043112
Rear fence plate
1
13 105064043118 Rear right fence plate 1
14 215030000005
Nut M8-8-ZnD GB/T 6170
2
15 215010000062
Bolt M8×45-8.8-ZnD GB/T 5783
2
16 215010000054
Bolt M6×40-A2-70 GB/T 5783
6
17 215040000034
Washer 8-200HV-ZnD GB/T 97.1
2
18 \
Nylon cable tie
\
Installation and Removal
Unsafe Operation Hazard
• Except for designated models
and corresponding markets, it is
forbidden to install the platform
fence device on other Sinoboom
products or any models in other
markets.
• The platform fence device can on-
ly be installed on machines
equipped with platform revolving
gate.
Installation instructions
1. Install the gate frame weldment at the platform re-
volving gate.
Fig 14
2. Half-height platform fence device: Install each fence
component on the platform in turn according to the
figure below, with the lower part ① of the fence fixed
by bolts, and the upper part ② and the side ③ fixed
by nylon cable ties or bolts.
