© Mar. 2023 132 AB16EJ Plus Maintenance Manual
OPTIONS
Installation and Removal
Unsafe Operation Hazard
Except for designated models and
corresponding markets, it is
forbidden to install the glass panel
bracket device on other Sinoboom
Unsafe Operation Hazard
products or any models in other
markets.
Installation instructions

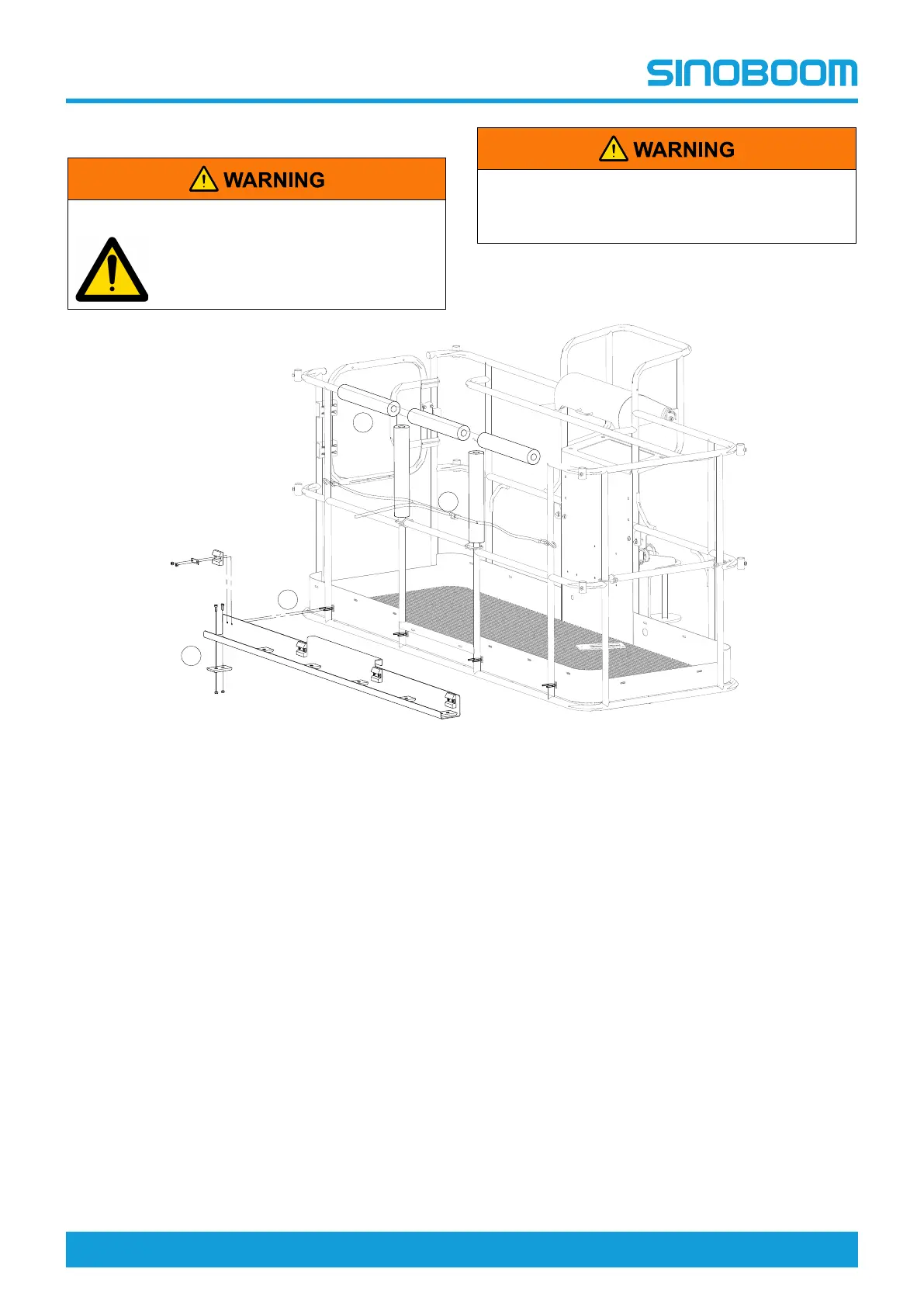

Fig 11
1. Install the cushion block with bolts and nuts sequen-
tially on the mounting plate of the glass panel brack-
et device.
2. After roughly fixing the mounting plate at its mount-
ing position, align the U-bolt with the mounting hole
of the mounting plate and vertical cushion block,
and fix it using the cushion plate and nut. Install oth-
er mounting plates sequentially at the locations as
shown in the figure above.
3. Install the anti-collision hose on the platform
guardrail.
4. Fasten the strap to the guardrail so that the mount-
ing plate is more securely mounted on the platform.
Removal instructions
Disassemble the glass panel bracket device in the re-
verse order of the installation instructions.
