© March 2023 30 AB16EJ Plus Operation Manual
CONTROLLERS AND INDICATORS
6.3 PLATFORM CONTROLS

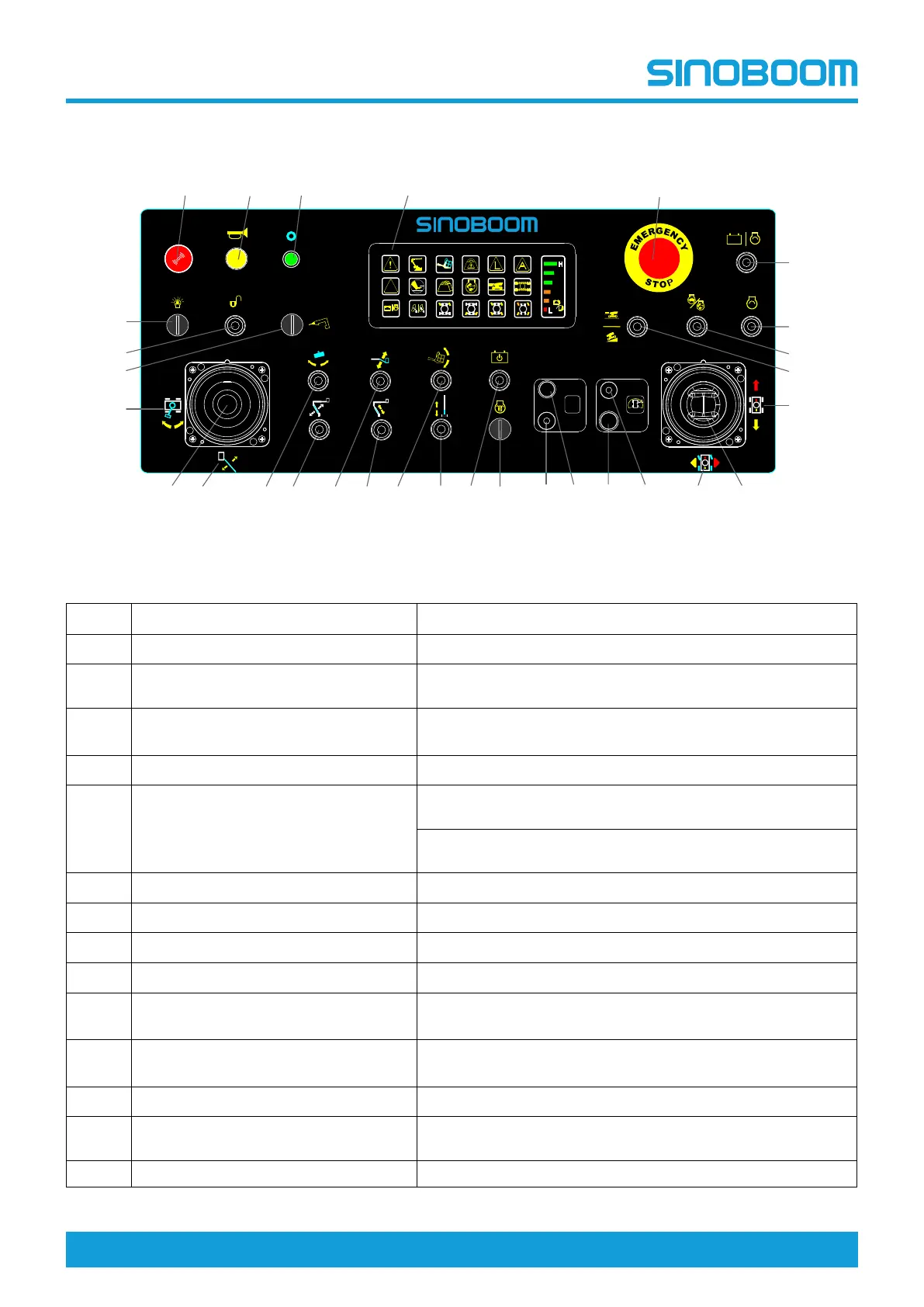

Fig 3 Platform Controls
Table 6-3
No. Indication
Description
1
Work light switch (if equipped) Turns the work light on/off
2
Release switch (if equipped)
After the secondary guarding has been triggered, activate this
switch to continue in override mode.
3
Hydraulic generator/inverter switch (if
equipped)
Activates the hydraulic generator/inverterON and OFF
functions
4
Turntable slewing/control indication Provides indication for turntable slewing and control
5
Main boom luffing/turntable slewing
control handle
Push the handle to the left/right to rotate the turntable clock-
wise/counterclockwise.
Push the handle forward/backward to raise/lower the main
boom
6
Main boom luffing control indication Provides indication for main boom luffing control
7 Platform rotate switch
Controls platform rotation
8
Articulated boom luffing switch Controls luffing movements of the articulated boom
9
Jib luffing switch (if equipped) Provides lifting/lowering control functions for the jib
10
Articulated boom telescoping switch (if
equipped)
Controls articulated boom telescoping
11
Platform leveling switch
Adjusts platform levelness while traveling uphill/downhill on a
slope
12
Main boom telescoping switch Controls main boom telescoping
13
Auxiliary power switch(if equipped)
Provides auxiliary (emergency) power in case of main power
source failure.
14 Not used /
CAUTION
- +
DC FE
1
2
3
4
5 6 7 8 9 10 12 13 15
16
17
19 20
21
22
23
24
25
26
27
282930
DC
FE
Scope
HV
11 14
18
To Next Page
