© March 2023 72 AB16EJ Plus Operation Manual
OPTIONS
11.2 PIPE CRADLE
Self-propelled aerial boom lifts are designed to transport
persons, tools and materials to aerial work locations.
When it's necessary to transport objects such as pipes,
such objects may be placed, secured, and transported
using the pipe cradle.
Unsafe Operation Hazard
• The pipe cradle may only be in-
stalled on models/in markets as
specified by Sinoboom.
• Before using the pipe cradle, the
safety rules and all operating in-
structions should be read, under-
stood and observed. This manual
should be considered part of the
pipe cradle and should always be
kept with it.
Installation and Removal
The pipe cradle assembly includes two pieces of pipe
cradles secured with U-bolts and nuts to both sides of
the guardrails.
Unsafe Operation Hazard
The pipe cradle may only be installed
on models/in markets as specified by
Sinoboom.
Unsafe Operation Hazard
• Read and understand the follow-
ing safety instructions before pro-
ceeding to the next step.
• The installation of the pipe cradle
shall not obstruct the normal op-
eration of the platform controller.
• The installation of the pipe cradle
shall not obstruct the entrance
and exit of the platform.
• Before installing the pipe cradle,
ensure that the platform remains
level.

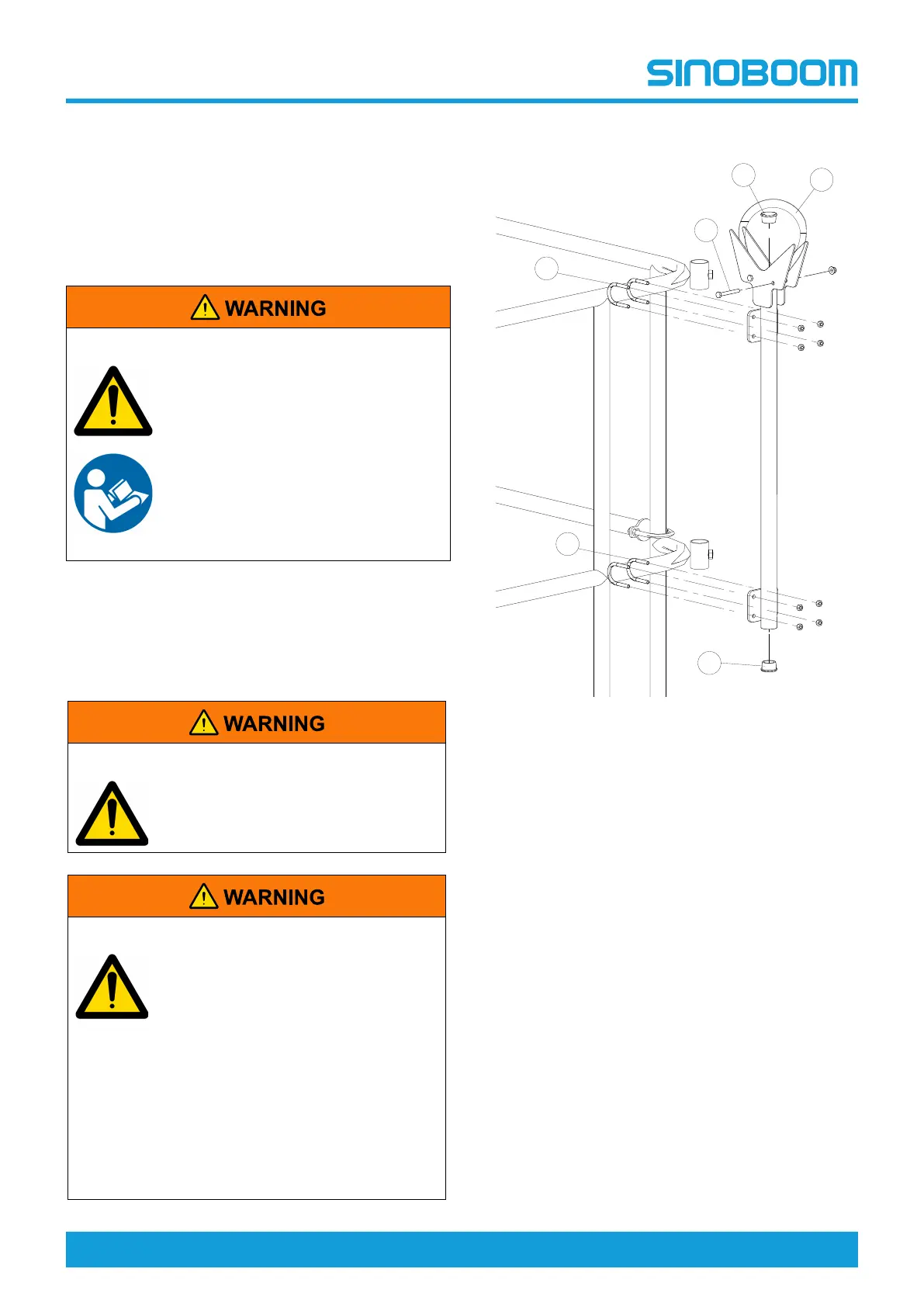

Installation instructions
Fig 8
1. Install the top and bottom pipe seals to the pipe cra-
dle weldment.
2. Secure the welding plate on the top of the pipe cra-
dle weldment with bolts.
3. Roughly secure the pipe cradle to one side of the
platform, and then tighten the pipe cradle from top to
bottom sequentially: insert the U-bolt through the
platform guardrails, align it with the mounting holes
of the pipe cradle, and then secure it with hex nuts.
Install the pipe cradle to the other side of the plat-
form in the same way.
4. Fasten the strap to tightly secure it to the bracket.
Removal instructions
Disassemble the pipe cradle in the reverse order of
installation.
