Sinoboom AB16EJ Plus - Parts List

OPTIONS
AB16EJ Plus Operation Manual
65
© March 2023
Parts List

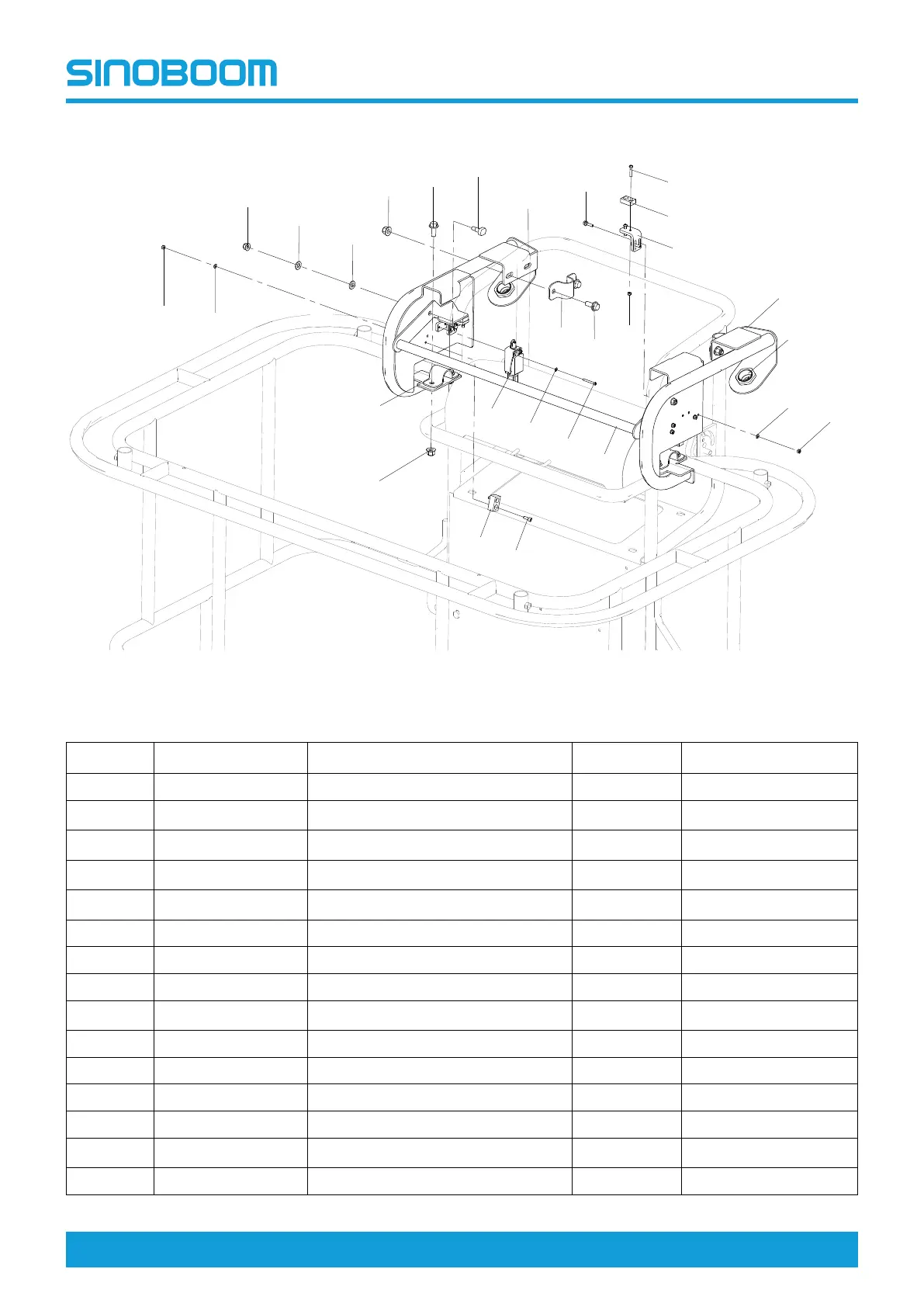

Fig 2
Table 11-2
No. Part number Part name Quantity Comment
1 215030000108 Nut M8-8-ZnD GB/T 6183 2
2 105070043011 Support 1
3 105070043028 Angle bracket 2
4 105070043030 Support 1
5
103010013495
Support pad
2
6 215040000031 Washer 4-A2 GB/T 97.1
4
7
215030000109 Nut M10-8-ZnD GB/T 6183 8
8 215040000035 Washer 10-200HV-ZnD GB/T 97.1
4
9 203060003031
Limit switch (Schneider)
2
10 215020000113
Screw M5×25-A2-70 GB/T 818
4
11 105070043031 Bolt 2
12 215020000007
Screw M5×16-A2-70 GB/T 70.1
4
13 215030000091 Nut M5-8-A2-70 GB/T 6184
4
14 105070043032 Support 1
15 215030000003
Nut M5-A2-70 GB/T 6170
8
10
4
15
19
17
14
17
22
7
16
11
8
8
1
15
19
12
22
7
2
3
13
5
20
18
9
6
21
