7.3 STABILITY
Regarding the stability of the machine it is necessary to
take two key situations into consideration: stability over
the front (forward stability) and stability over the rear
(backtip stability) of the machine. See the following fig-
ures and description for the least stable positions, both
over the front and over the rear of the machine.
Do not overload the platform or operate the
machine on tilted surfaces exceeding the
maximum allowable tilt angle to prevent forward
or backward tipping.

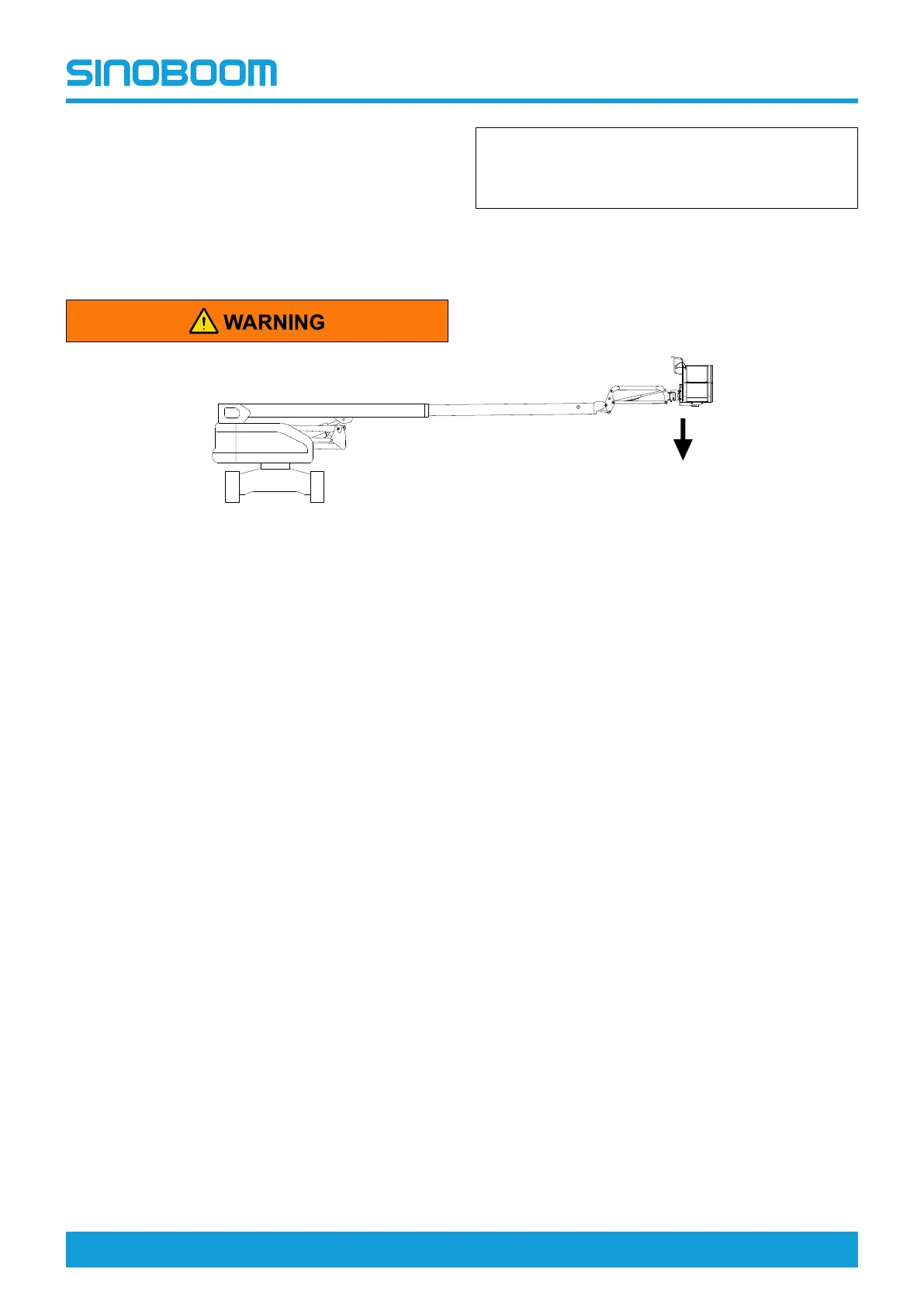

Fig 2 Position of lowest forward stability of the machine
1. Articulated boom fully retracted;
2. Main boom horizontal and fully extended;
3. Jib raised to horizontal position;
4. Turntable rotated 90°;
5. The machine will tip over in the direction as indicated by the arrow if overloaded or operating on a tilted surface
exceeding the maximum allowable tilt angle.
