AB16EJ Plus Operation Manual
OPERATION INSTRUCTIONS
7.9 PLATFORM MOVEMENTS
The platform leveling function can only be used to
slightly adjust the platform’s levelness in
situations such as traveling up/down slopes.
Improper use may cause loads/people to move or
fall.
Perform operation from the ground:
1. Level the platform upward: Move and hold the
enable switch, push upward the platform leveling
switch, the platform will be leveled upward.
2. Level the platform downward: Move and hold the
enable switch, pull downward the platform leveling
switch, the platform will be leveled downward.
3. Rotate the platform clockwise: Move and hold
the enable switch, pull downward the platform rota-
tion switch, the platform will rotate clockwise.
4. Rotate the platform anti-clockwise: Move and
hold the enable switch, push upward the platform
rotation switch, the platform will rotate
counterclockwise.
Perform operation from the platform:
1. Level the platform upward: Depress the foot
switch, push the platform leveling switch upward,
the platform will be leveled upward.
2. Level the platform downward: Depress the foot
switch, pull the platform leveling switch downward,
the platform will be leveled downward.
3. Rotate the platform clockwise: Depress the foot
switch, push the platform rotation switch to the left,
the platform will rotate clockwise.
4. Rotate the platform anti-clockwise: Depress the
foot switch, push the platform rotation switch to the
right, the platform will rotate anti-clockwise.
7.10 AUXILIARY POWER
NOTICE
• When the auxiliary power is in use, do not perform
two or more functions at the same time, because
certain operations may not respond due to the low
voltage in the auxiliary motor or pump.
• The auxiliary power switch can only be used for a
short time (to fully lower and retract the platform
from maximum angle/maximum extension) when
the main power source is not working, prolonged
operation may damage the motor.
In the event of main power source failure, the auxiliary
power can be used to perform the desired function
operation.
Perform operation from the ground:
Move and hold the auxiliary power switch, activate the
desired movement switch to perform the required func-
tion operation.
Perform operation from the platform:
Depress the foot switch, move and hold the auxiliary
power switch, and activate the desired movement switch
to perform the required function operation.
7.11 TRANSPORT AND LIFTING
The mobile elevating work platform is a non-road ve-
hicle and is not licensed for on-road use, so the machine
needs to be transported and transferred by road, railway
or waterway.
Only qualified individuals may drive the machine
onto or from the transport vehicle.
Before transporting and lifting the machine:
1. Determine the total weight of the machine (see ma-
chine nameplate or Technical Parameters section
of this manual) and select appropriate lifting equip-
ment, rigging equipment, and transport vehicle.
2. Make sure the boom is stowed, that the turntable is
locked (lock the slewing pin if so equipped), make
sure there are no loose or unsecured parts on the
machine, and that there are no persons or tools on
the platform.

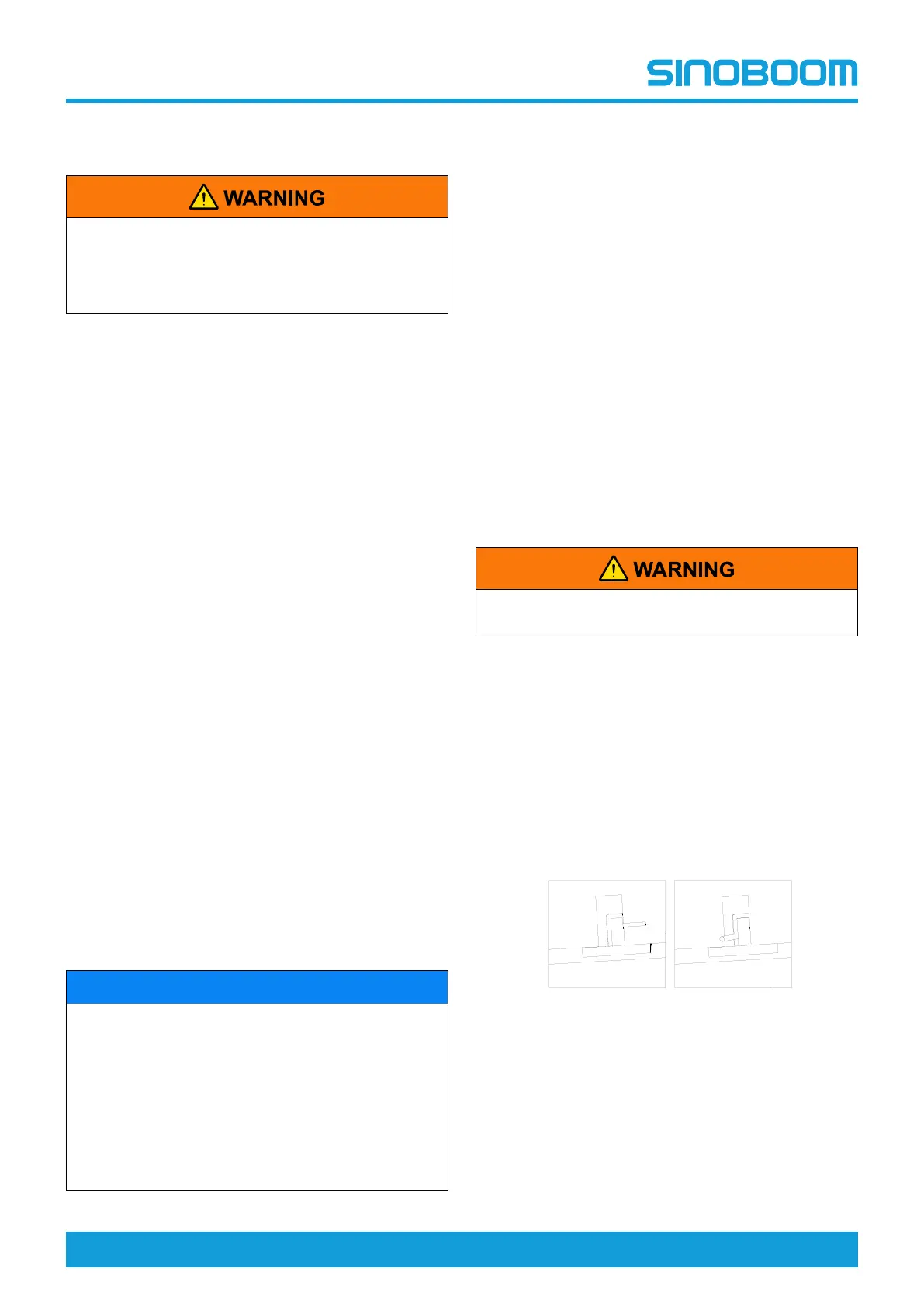

Fig 5
A: The turntable slewing pin is not locked, and the
turntable can rotate
B: The turntable slewing pin is locked, the turntable
cannot rotate
3. Ensure that the machine lifting points/rope lashing
To Next Page
