6 CONTROLLERS AND INDICATORS
This chapter provides a brief introduction of switches,
handles and displays on the ground controls and plat-
form controls. Refer to the Operation Instructions sec-
tion for a detailed description.
NOTICE
The manufacturer cannot directly control the
application and operation of the machine. Users and
operators are responsible for complying with the
applicable safety specifications.
6.1 GROUND CONTROLS

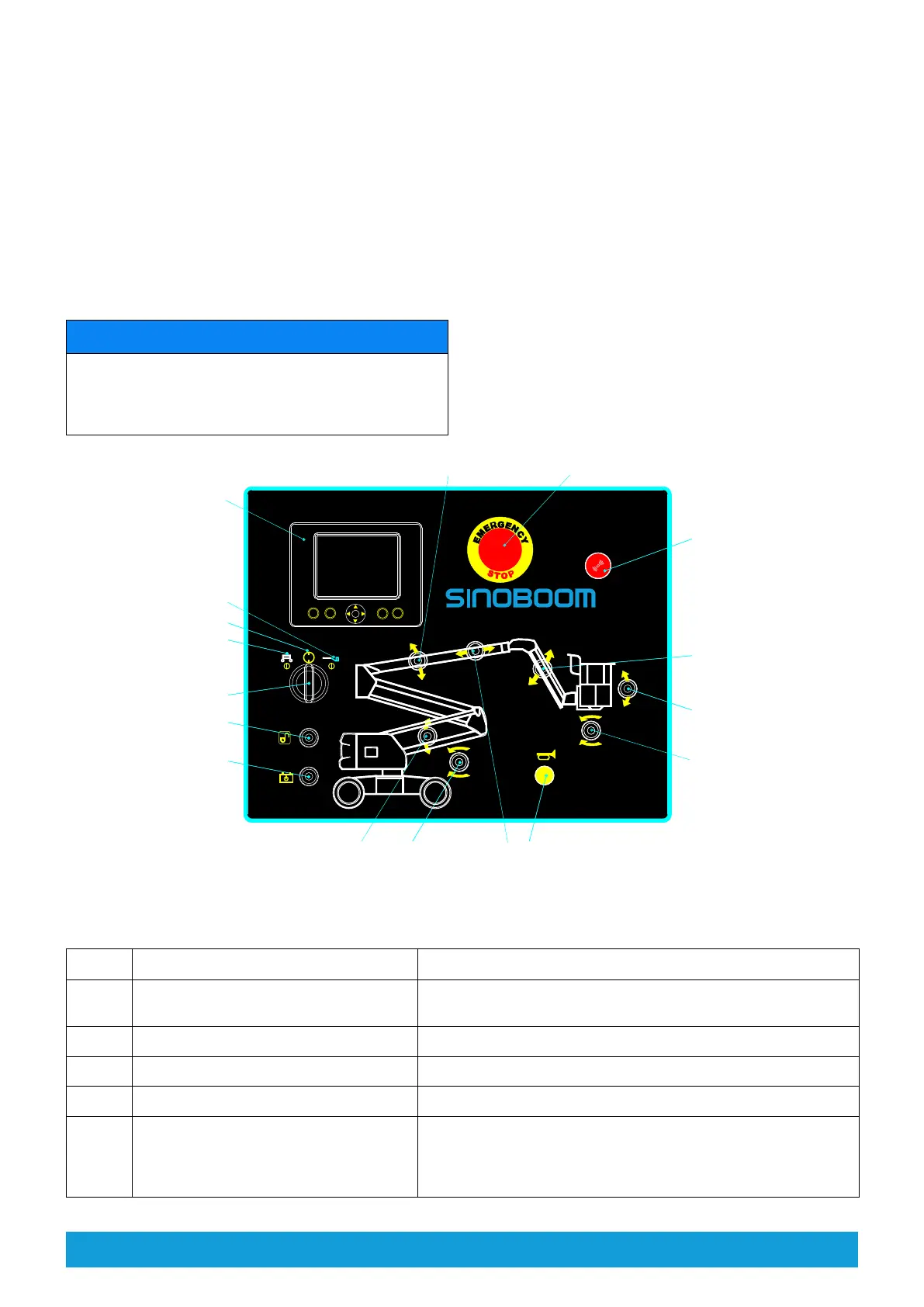

Fig 1
Table 6-1
No. Indication
Description
1
Turntable display
Provides machine operating parameters, fuel/battery level,
fault codes & fault queries, and other information.
2
Platform control position
/
3
OFF position (neutral)
/
4
Ground control position
/
5
Key switch
(ground/platform control selector
switch)
With the switch in the OFF position (neutral) the machine will
powered off.
With the switch turned to the ground control position (left)
functions can only be activated from the ground controls, the
