© March 2023 32 AB16EJ Plus Operation Manual
CONTROLLERS AND INDICATORS
6.4 PLATFORM DISPLAY

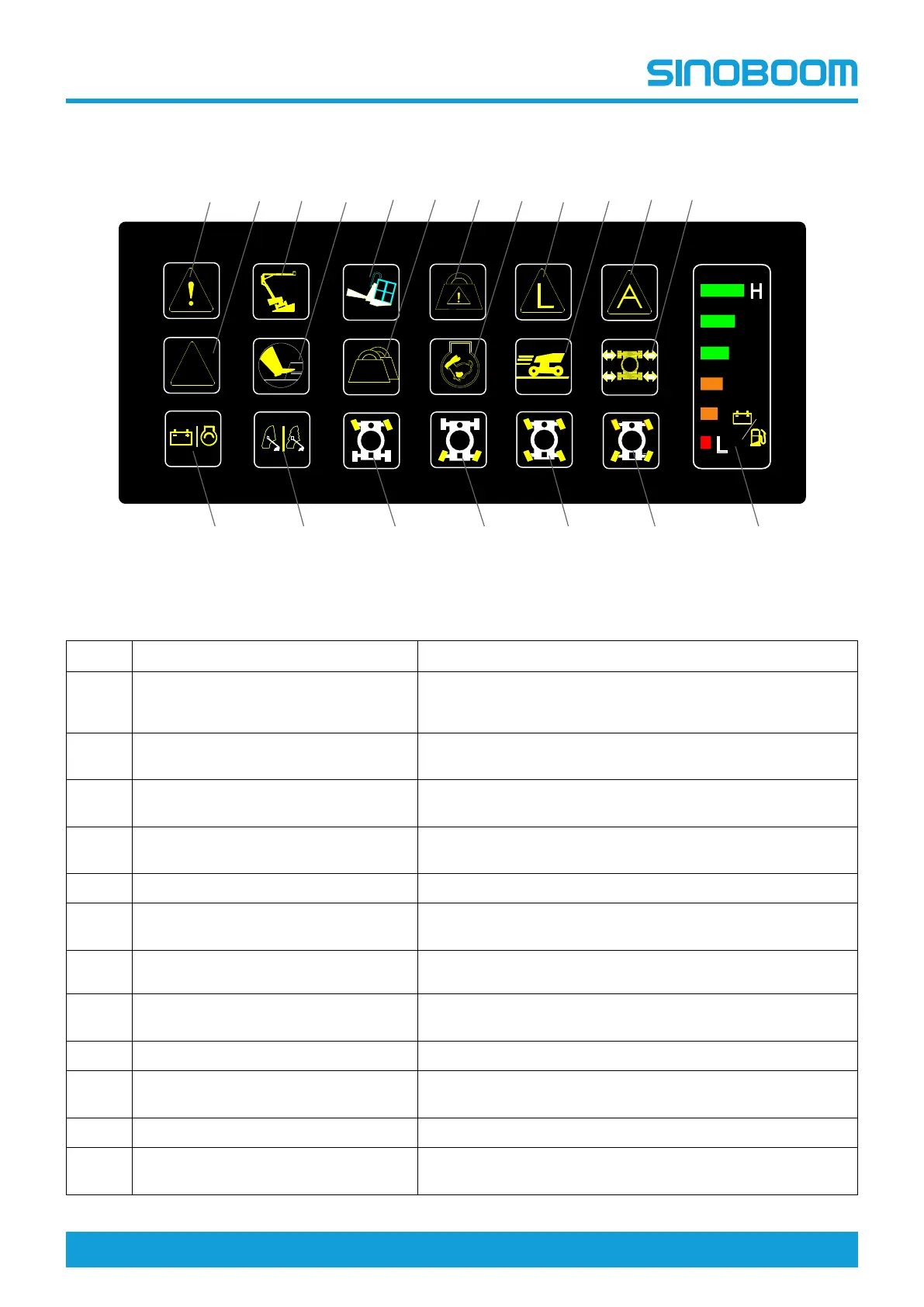

Fig 4 Platform controls display
Table 6-4
No. Indication
Description
1
System fault indicator
This icon illuminates to indicate low fuel level, low engine oil
pressure, high engine coolant temperature, CAN bus error, or
other faults.
2
Scope limiting indicator
This icon illuminates to indicate that the boom has exceeded
the specified working envelope.
3 Chassis tilt indicator
This icon illuminates to indicate that the chassis tilt angle ex-
ceeds the maximum allowable tilt angle.
4 Foot switch indicator
This icon illuminates to indicate that the foot switch is
depressed.
5
Platform tilt indicator
This icon illuminates to indicate that the platform is tilted.
6
Heavy load indicator
This icon illuminates to indicate that the load on the platform
exceeds the lower load range.
7 Overload alarm indicator
This icon illuminates to indicate that the load on the platform
exceeds its rated load.
8
High engine speed indicator
This icon illuminates to indicate that the engine starts to run at
high speed.
9
Boom length sensor fault indicator This icon illuminates to indicate boom length sensor faults.
10
High travel speed indicator
This icon illuminates to indicate that the machine starts to trav-
el at high speed.
11
Angle sensor fault indicator This icon illuminates to indicate angle sensor faults.
12
Axle retracting/extending indicator
This icon flashes to indicate that the axle is retracting/
extending.
DC
FE
Scope
1 2 3 4 5 6 7 8 9 10 11 12
1413 15 16 17 18 19
