© March 2023 36 AB16EJ Plus Operation Manual
OPERATION INSTRUCTIONS
7.2 WORKING ENVELOPE
DIAGRAM

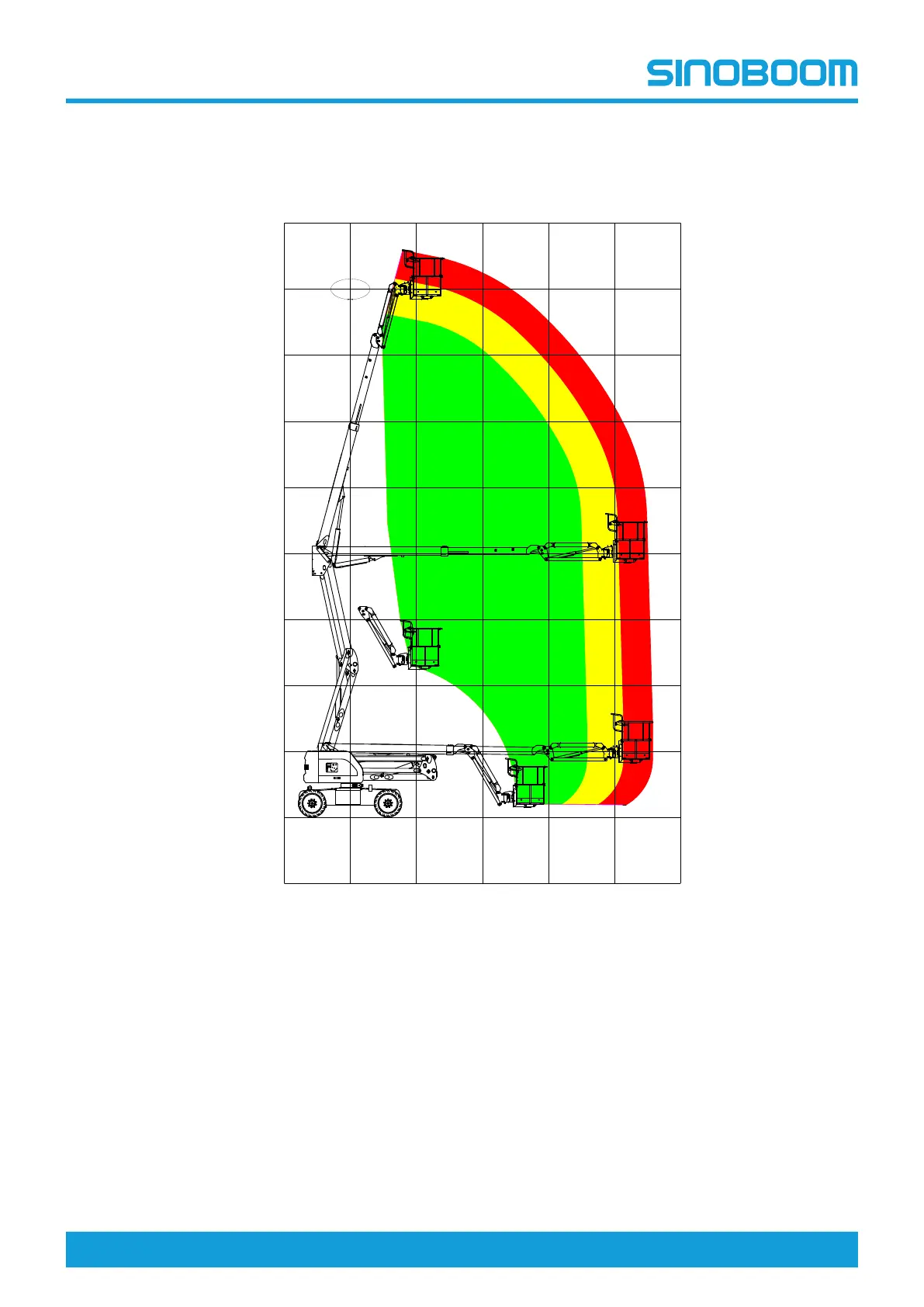

Fig 1 Working Envelope Diagram (-5°)
-2m
10m
8m
6m
4m
2m
0m
0m
2m
4m
6m
8m
10m
12m
14m
16m
18m
340kg(750 lb)
454kg(1000 lb)
250kg(551 lb)
355°
