points and their attached structures are intact and
that the belt or rope to be used has sufficient load
strength.
4. Before loading/unloading the machine, ensure that
the transport vehicle is parked on level ground and
that the ramp used for driving the machine onto the
transport vehicle does not exceed the maximum
gradeability of the machine.
5. When loading/unloading the machine, the transport
vehicle must be secured to prevent it from moving.
6. The wheels should be locked after the machine is
loaded to prevent it from moving.
7. Before releasing the brake, the machine must be
parked on a horizontal surface or secured.
8. The machine may only be lifted from a specific posi-
tion with a forklift or crane with sufficient lifting ca-
pacity. Care should be taken to prevent the machine
from colliding with surrounding objects.
Transport
1. Adjust the machine to the transport position(the po-
sitions of the jib and platform in the following figure
are for reference only, and can be adjusted as ap-
propriate for the trailer during transportation).
2. Turn the key switch on the ground controls to the
OFF position and remove the key.
3. Firmly secure the chassis on the transport vehicle
and take appropriate safety measures. Use at least
4 ropes or belts to secure the chassis and at least 1
rope or belt to secure the platform.
4. Adjust the rigging appropriately to prevent damage
to the rope or belt.
5. To protect the boom, platform components and elec-
trical and hydraulic components, do not apply ex-
cessive downward pulling force to the ropes or belts
used to secure the platform. A foam layer can be
padded under the platform so that the underside of
the platform is suspended.

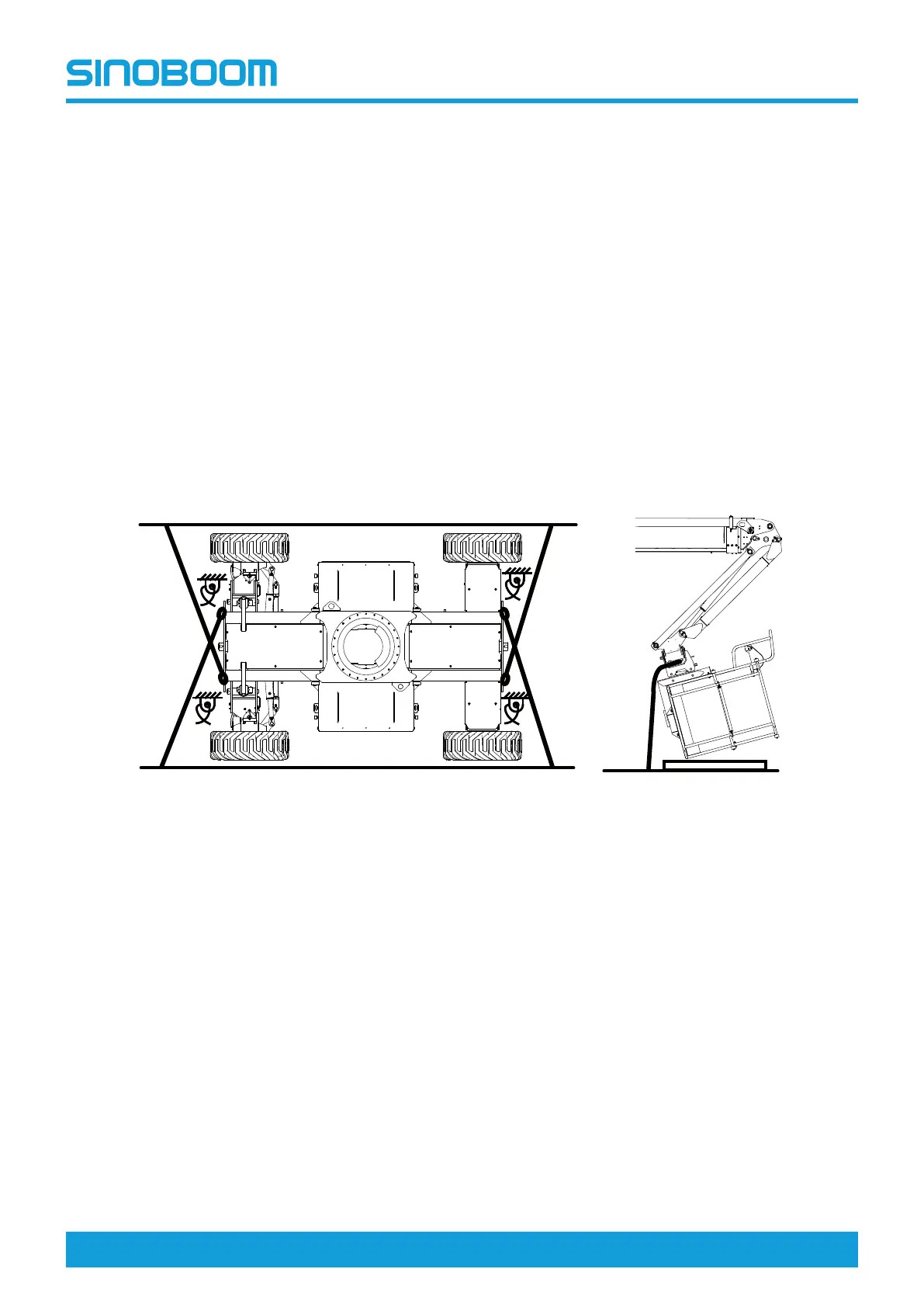

Fig 6 Transport diagram
Lifting
1. Determine the center of gravity of the machine.
2. The rigging equipment must be attached to the
machine’s specified lifting point.
3. Adjust the rigging equipment properly to avoid dam-
age to the machine and keep the machine level.
