OPERATION INSTRUCTIONS

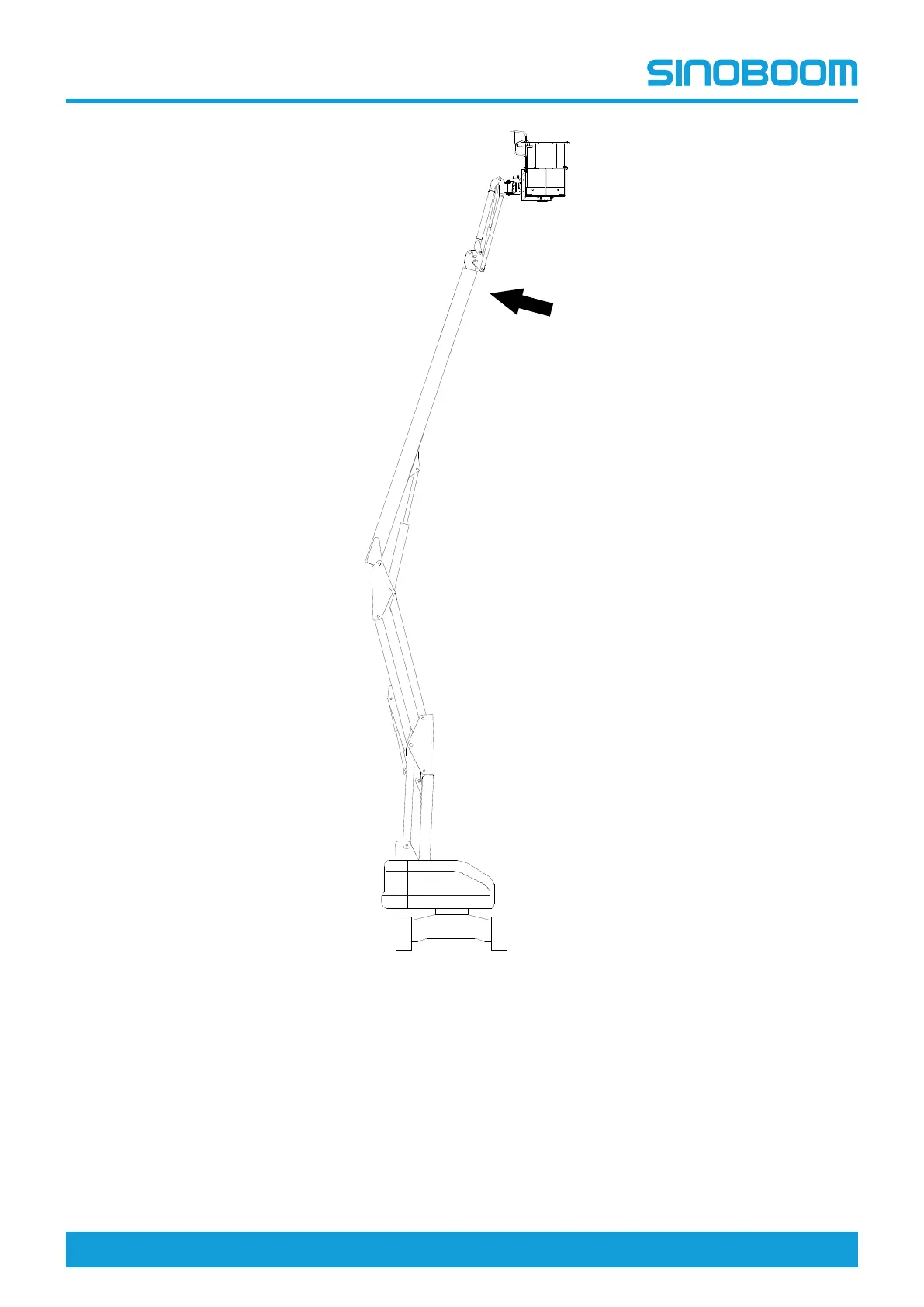

Fig 3 Position of lowest backtip stability of the machine
1. Articulated boom fully extended;
2. Main boom fully retracted and raised;
3. Jib fully elevated;
4. Turntable rotated 90°;
5. The machine will tip over in the direction as indicated by the arrow if overloaded or operating on a tilted surface
exceeding the maximum allowable tilt angle.
