AB16EJ Plus Operation Manual
OPTIONS

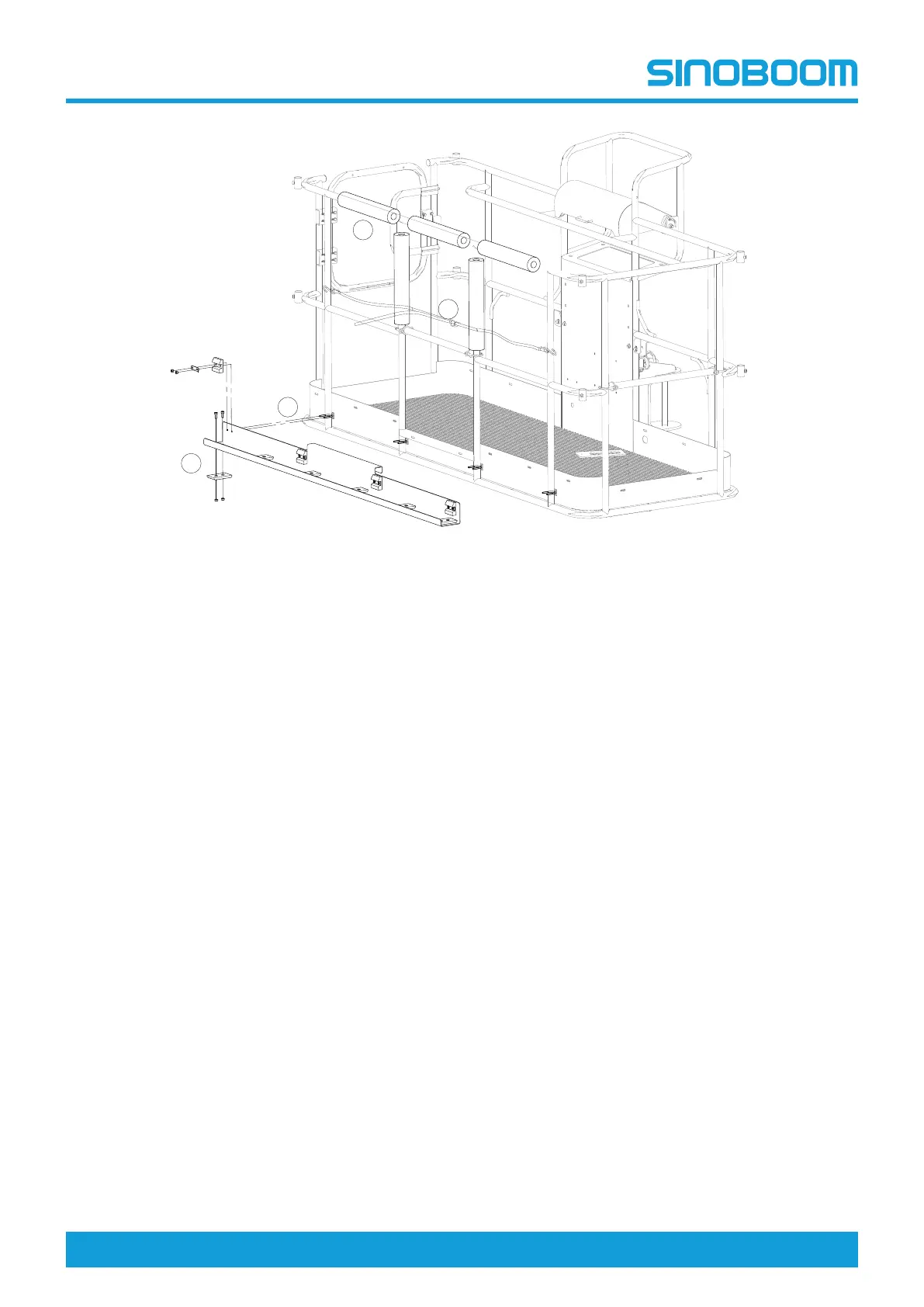

Fig 9
1. Using the provided bolts and nuts, secure the sup-
port pads to the mounting plate of the glass panel
support.
2. After roughly securing the mounting plate in place,
insert the U-bolt into the holes of the mounting plate
and vertical support pad, then secure it with the
washer plate and nuts. Continue installing the
mounting plate in sequence as illustrated.
3. Attach the tube pads to the platform guardrails.
4. Attach the straps to the guardrails to secure the
mounting plate tightly on the platform.
Removal instructions
Disassemble the glass panel support in the reverse or-
der of the installation instructions.
