Sinoboom AB16EJ Plus - Page 86

© March 2023
76
AB16EJ Plus Operation Manual
OPTIONS
Fig 10

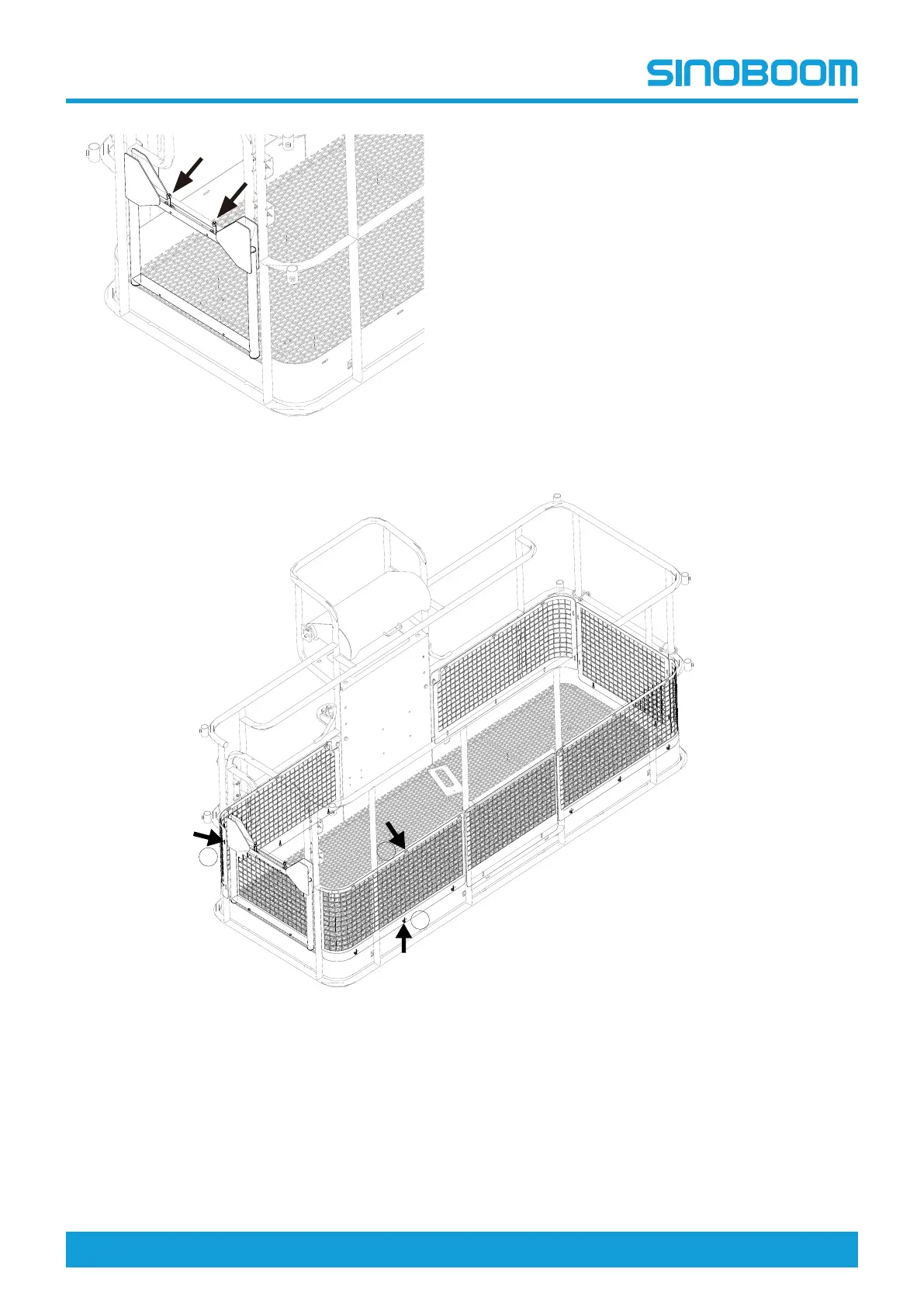

2. Half-height platform mesh: Install each mesh mod-
ule in sequence as shown in the figure below, se-
cure the bottom part at location ① with bolts, and
secure the top part at location ② and the side part
at location ③ with nylon cable ties or bolts.
Fig 11
3. Full-height platform mesh: Install each mesh mod-
ule in sequence as shown in the figure below, se-
cure the bottom part at location ① with bolts, and
secure the top part at location ② and the side part
at location ③ with nylon cable ties or bolts.
1
2
3
