CONTROL SYSTEM
TB20J Plus Maintenance Manual 145
© Feb. 2023

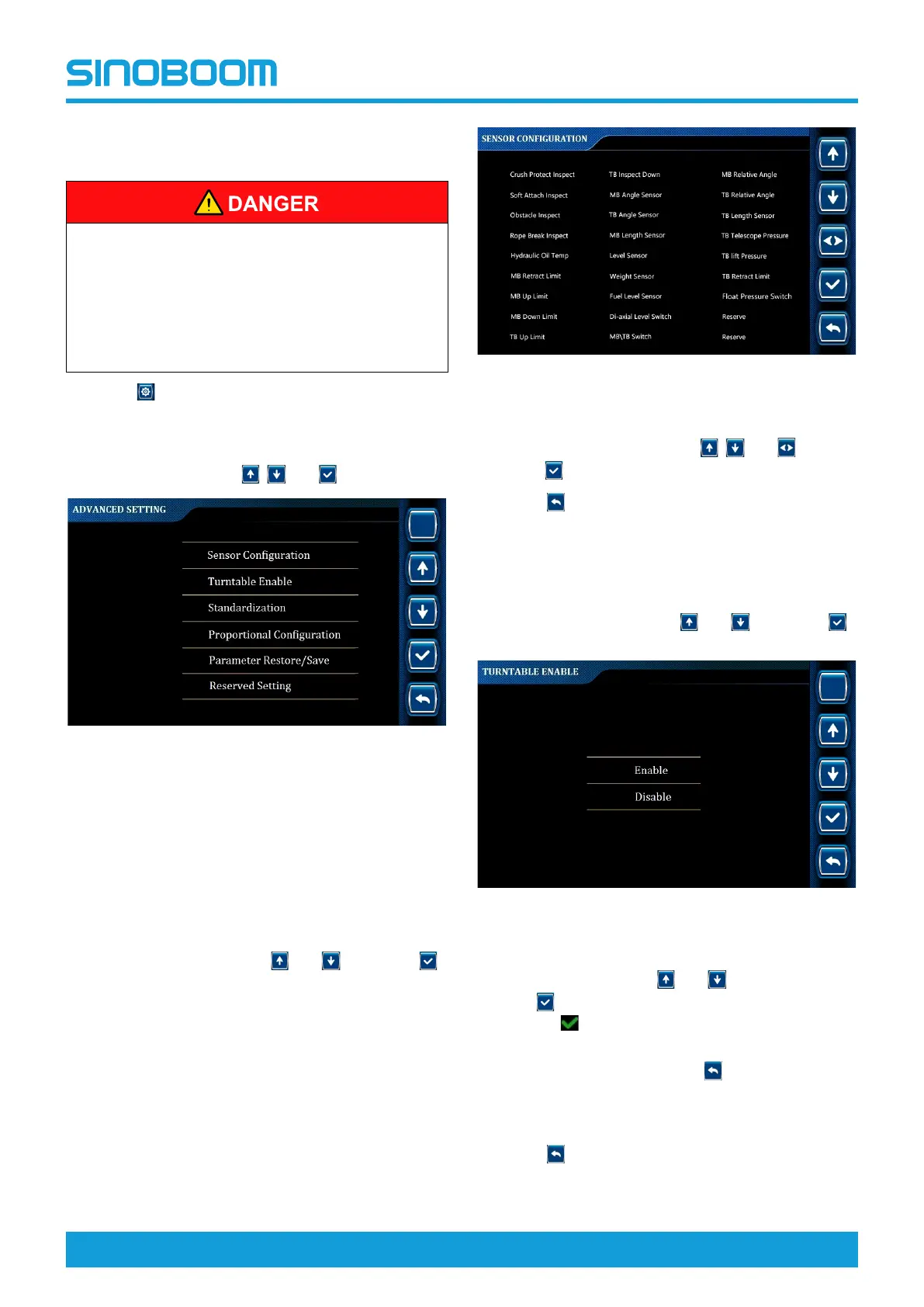

11.6 ADVANCED SETTING (TOPIC)
Personnel who have not been professionally
trained and authorized by Sinoboom are not
allowed to modify the advanced setting (including
sensor configuration, turntable enable,
standardization, proportional configuration,
parameter restore/save and reserved setting);
otherwise they will be responsible for the
consequences.
1. Press
on the main interface to enter CONFIGU-
RATION interface.
2. According to the navigation diagram of display inter-
face, enter Advanced Setting interface (password
required) by pressing
, and successively.
Fig 11 ADVANCED SETTING interface
Sensor Configuration
• The sensor configuration is mainly used to turn on/
off switches or sensors on the machine.
• The configuration of switches is subject to the actual
machine configurations.
1. On the ADVANCED SETTING interface, select Sen-
sor Configuration through
and , and press
to enter SENSOR CONFIGURATION interface.
Fig 12 SENSOR CONFIGURATION interface
2. On the SENSOR CONFIGURATION interface, se-
lect the desired item through
, and , and
press
to turn on/off the selected item.
3. Press
successively to return to the main inter-
face, and power off the machine as required.
Turntable Enable
1. On the ADVANCED SETTING Interface, select
Turntable Enable through
and , and press
to enter TURNTABLE ENABLE Interface.
Fig 13 TURNTABLE ENABLE Interface
2. On the TURNTABLE ENABLE Interface, select Ena-
ble or Disable through
and , and press and
hold
for 3s to confirm the setting (there will be
the icon
before the selected option after success-
ful setting).
3. To re-select the option, press
to return to the AD-
VANCED SETTING Interface, re-enter the TURN-
TABLE ENABLE Interface, and repeat the above
steps.
4. Press
successively to return to the main inter-
face, and power off the machine as required.
