POWER SYSTEM
TB20J Plus Maintenance Manual 79
© Feb. 2023

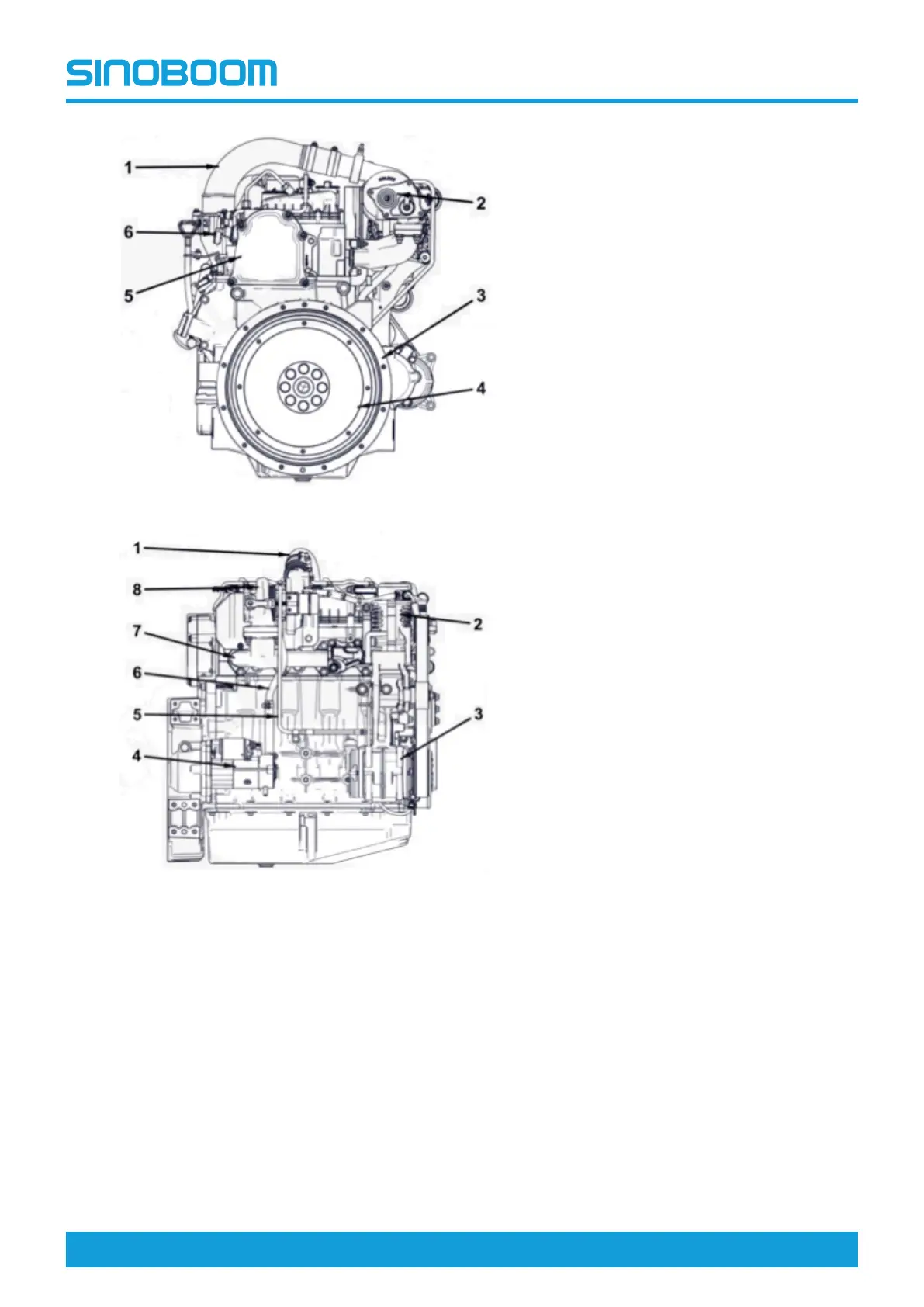

1. Air crossover tube
2. Exhaust outlet connection
3. Flywheel housing
4. Flywheel
5. Overhead camshaft sprocket housing
cover
6. Camshaft position sensor
1. Air crossover tube
2. Charger
3. Refrigerant compressor (optional)
4. Starting motor
5. Turbocharger oil supply pipe
6. Turbocharger oil return pipe
7. Exhaust manifold
8. High level-mounted turbocharger
