SIPOS AKTORIK SIPOS 5 User Manual

Y070.020/GB Page 43
Operation instructions
SIPOS 5 PROFITRON, HiMod
5
Commissioning
5 Commissioning

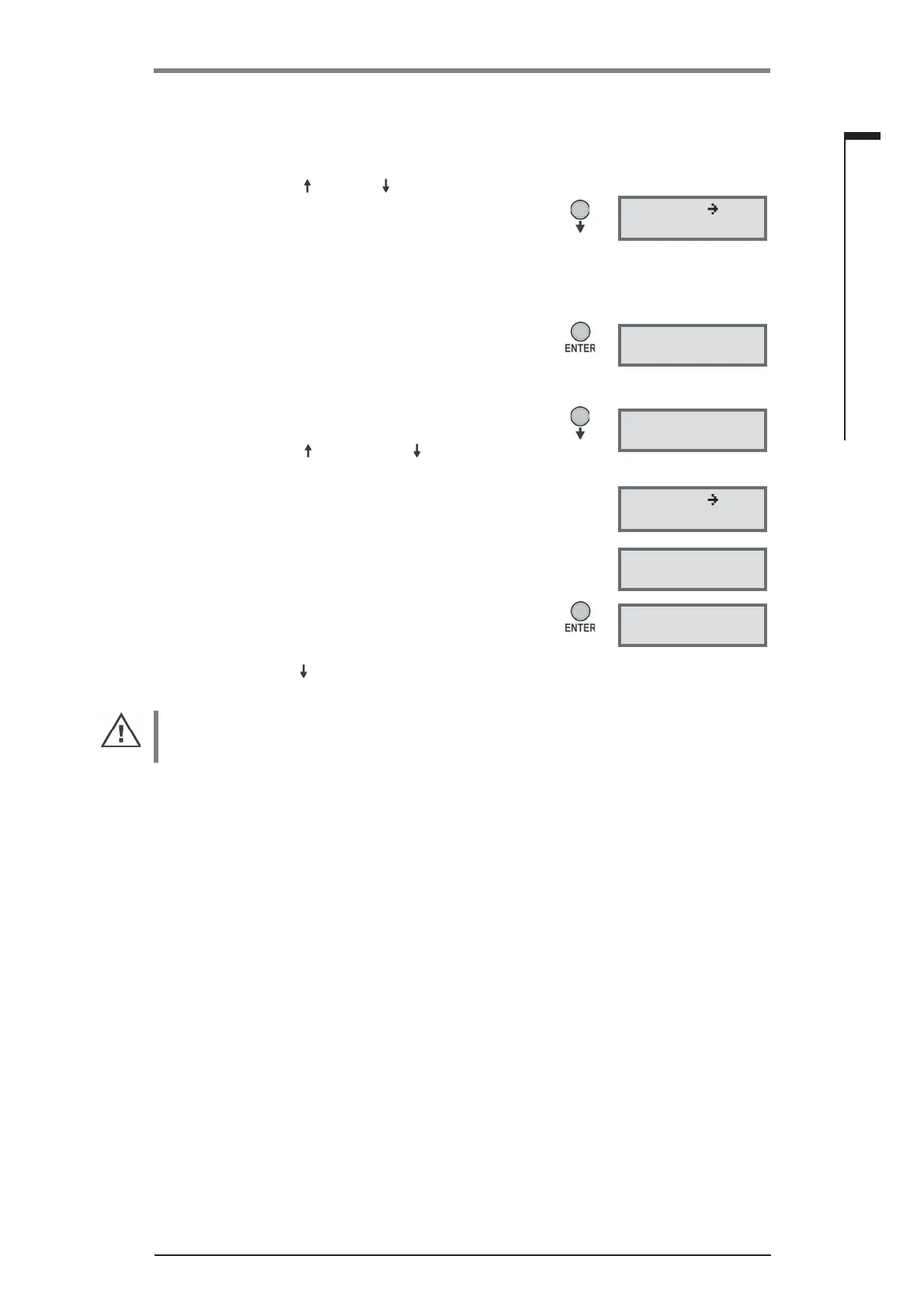

7. Move the actuator to the other end position:
– Travel-dependent cut-off mode
a) Use the OPEN
or CLOSE buttons to move the
actuator, until the valve has reached the end positi-
on. Pay attention to the valve during operation. The
change of travel is indicated in the display.
Note: If the cut-off was torque-dependent due to a
block before reaching the end position, this is indica-
ted by „TL-OPEN activ“ or „TL-CLOSE activ“ in the
second line of the display.
% open open
change XX,X%
b) Once the end position has been reached, confi rm
after approx. 2 s. with the ENTER button. The display
confi rms the correct setting.
Continue with operation step 8.
endpos. adjustm.
OK!
– For torque dependent cut-off mode
Hold down OPEN
button (CLOSE button for setting
end position CLOSED) for more than 2 s.
adapting op.pos.
busy…
The actuator moves automatically until reaching the end
position. The actuator moves then shortly in the opposite
direction, to return to the end position again.
% open open
REV/STRO 48
The display confi rms the correct setting.
endpos. adjustm.
OK!
8. Press ENTER button. The actuator changes to the „end-
pos. adjust“ parameter in the menu.
endpos. adjust
Now you can press the
button to get to the next parameter. If the Local/Remote button is pressed,
the actuator changes to the „Remote“ state. All changes confi rmed by ENTER are saved.
If the main menu was accessed from the „locPar“ state, and if the „Local/Remote“ button is
pressed, the actuator changes to the „Remote“ state and starts to move if a control command
from the DCS is present!
