SIPOS AKTORIK SIPOS 5 User Manual

Y070.020/GB Page 63
Operation instructions
SIPOS 5 PROFITRON, HiMod
7
Status and fault signals, diagnosis
7 Status and fault signals, diagnosis
5. Press ENTER button. The recording of torque curve is
started.
If the actuator is not in end position CLOSED, it will
move there fi rst (start position). The current limit posi-
tion is displayed in % steps.
45% open close
graph no. 1
After reaching end position CLOSED, the actuator
automatically moves to end position OPEN, and the
fi rst part is recorded. The current position is indicated
as percentage.
12% open close
graph no. 1
After reaching end position OPEN, the actuator auto-
matically returns to end position CLOSED.
36% open close
graph no. 1
The torque curve is permanently stored, the original
curve is overwritten.
storage complete
graph no. 1
6. Press ENTER to confi rm the torque curve recording.
The display changes to the initial position.
rec.torque graph
Visualizing the torque curves
The recorded torque curves can be viewed via the COM-SIPOS computer parameterization pro-
gram or Profi bus DP (e.g. SIMATIC PDM, DTM).

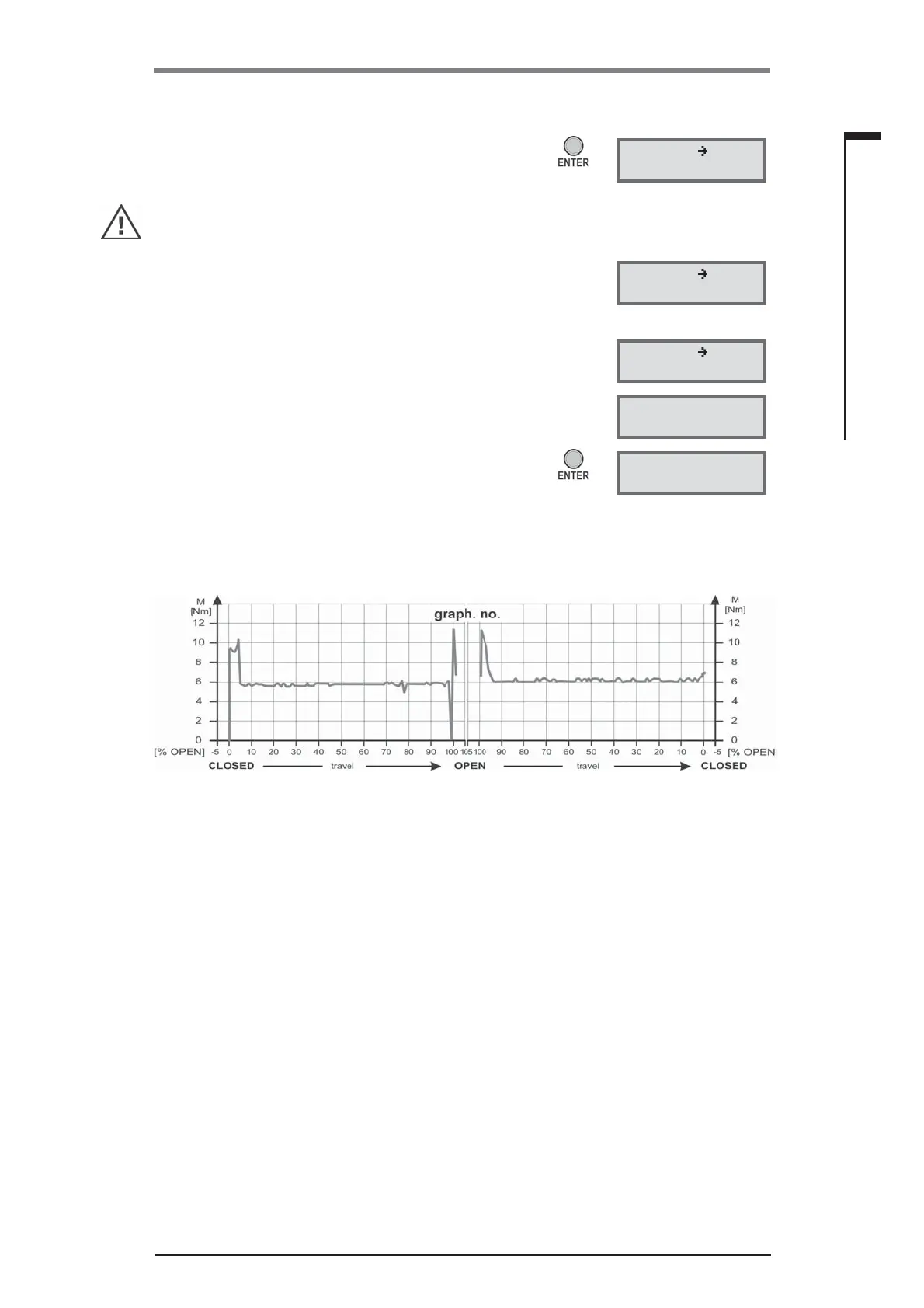

Fig.: Example of a torque curve of a valve
