3Unit description Sirona Dental Systems GmbH
3.9Water unit Operating Instructions (USA) TENEO

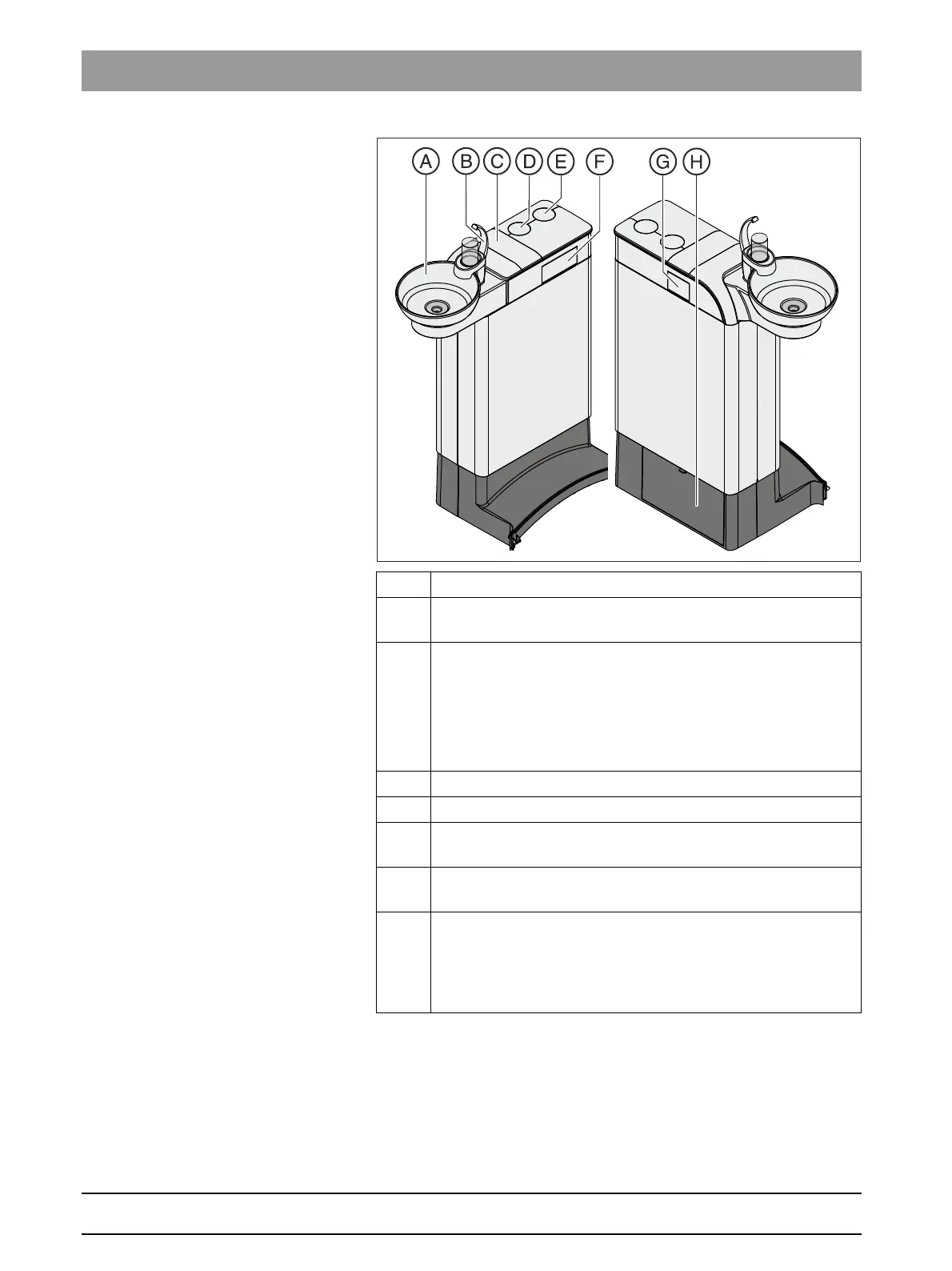

A Swiveling cuspidor
B Tumbler filler (depicted) or tumbler filler with automatic sensor
control for automatic filling of the tumbler
C Cover of tank for waterline treatment solution
The tank can also be used as a self-sufficient water supply. In
this case, distilled water is mixed with the DENTOSEPT P
waterline treatment solution in a 100:1 ratio (1 liter of water, 10
ml of DENTOSEPT P) and filled into the tank for waterline
treatment solution, see "Self-sufficient water supply" [ → 160]
D Mount for support arm of operating light and monitor
E Tray support arm mount
F Mount for water-carrying instruments of the dentist element for
sanitation and AutoPurge
G Holder for the SPRAYVIT M of the assistant element and
suction hoses used for suction hose cleaning
H Maintenance flap for accessing the cleaning agent tank to
chemically clean the suction hoses, the flushing valve, the
potentiometer of the automatic sensor control, the amalgam
separator, sediment container or filter insert for standard wet
suction
