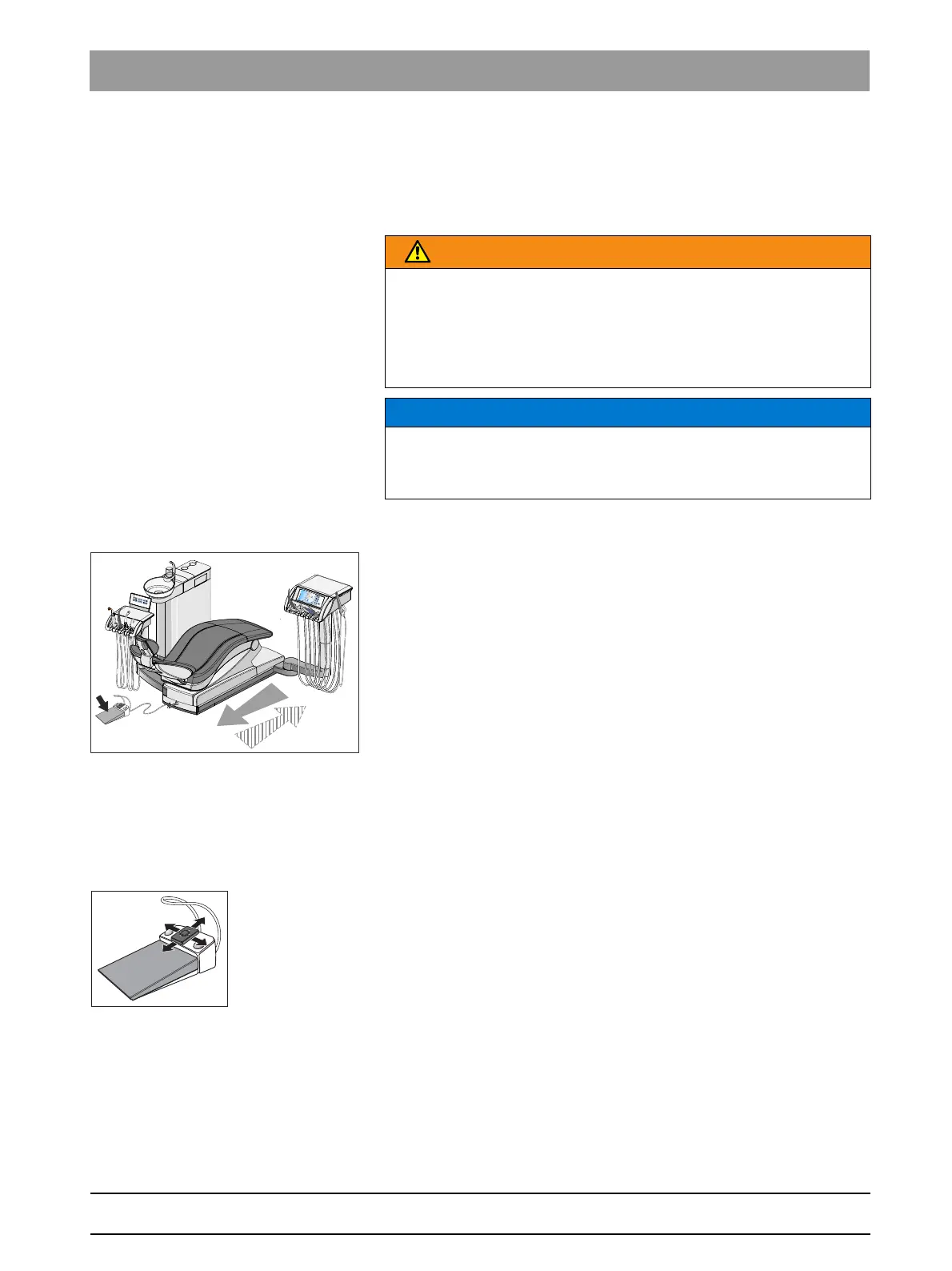

4.5.3 Motor-driven travel track
The dental treatment unit is equipped with a motor-driven travel track for
the dentist element. In combination with the rotary joints on the support
arm, the dentist element can be perfectly adjusted to suit any treatment.
Dentist element, hoses, entry/exit
Dentist element, sudden movements
Moving the dentist element toward the user
✔ With the exception of the SPRAYVIT, all instruments must be in
place.
➢ Step on the pedal of the foot control.
 The dentist element moves toward the operator as long as the
foot control pedal is actuated.
Moving the dentist element toward the foot end
This function is not available with the cursor control switched on. In this
case, the dentist element can be moved to the foot end at the end of
treatment by pressing the Entry/exit position (0) key, see "Moving the
patient chair to the entry/exit position" [ → 66].
✔ The cursor control switched off.
✔ With the exception of the SPRAYVIT, all instruments must be in
place.
➢ Move the 4-way foot switch plate in any direction.
 The dentist element moves toward the foot end as long as the
pedal is actuated.
WARNING
The patient's feet may get caught in the instrument hoses of the dentist
element when he enters or leaves the patient chair.
The patient may trip or fall.
➢ Turn the dentist element outward before the patient enters or leaves
it.
NOTICE
Sudden movements can cause instruments to fall out of the holder in the
dentist element.
➢ Try to avoid sudden movements of the dentist element.
