2 Sealing ring with Klübersynth VR 69-252 (part no. 0118037),
lightly lubricate.
3 Insert jack plug with bayonet joint (2) into the connecting socket
(1) of the control unit.
Ensure correct positioning of the groove (3).
3
1
2

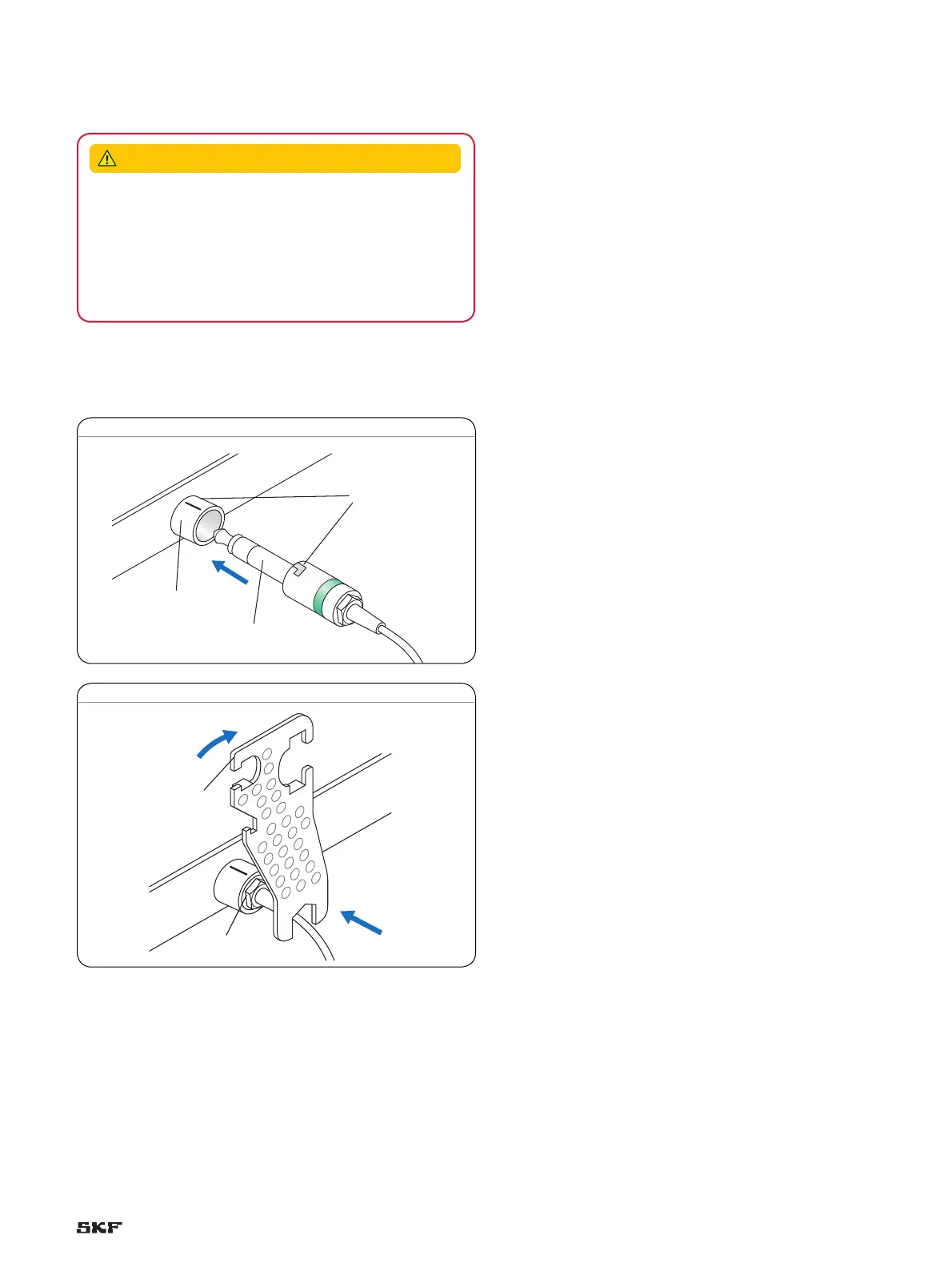

Fig. 20
2
1
Fig. 21
4 Insert special tool (1) in the nut (2) of the jack plug.
5 Turn special tool (1) clockwise until the bayonet joint of the jack
plug is locked.
Damage due to wrong lubricants
The use of incorrect additives may cause significant material
damage.
Therefore:
• Only use the auxiliary products listed by the manufacturer.
CAUTION
45
