SKF Matrix Series User Manual

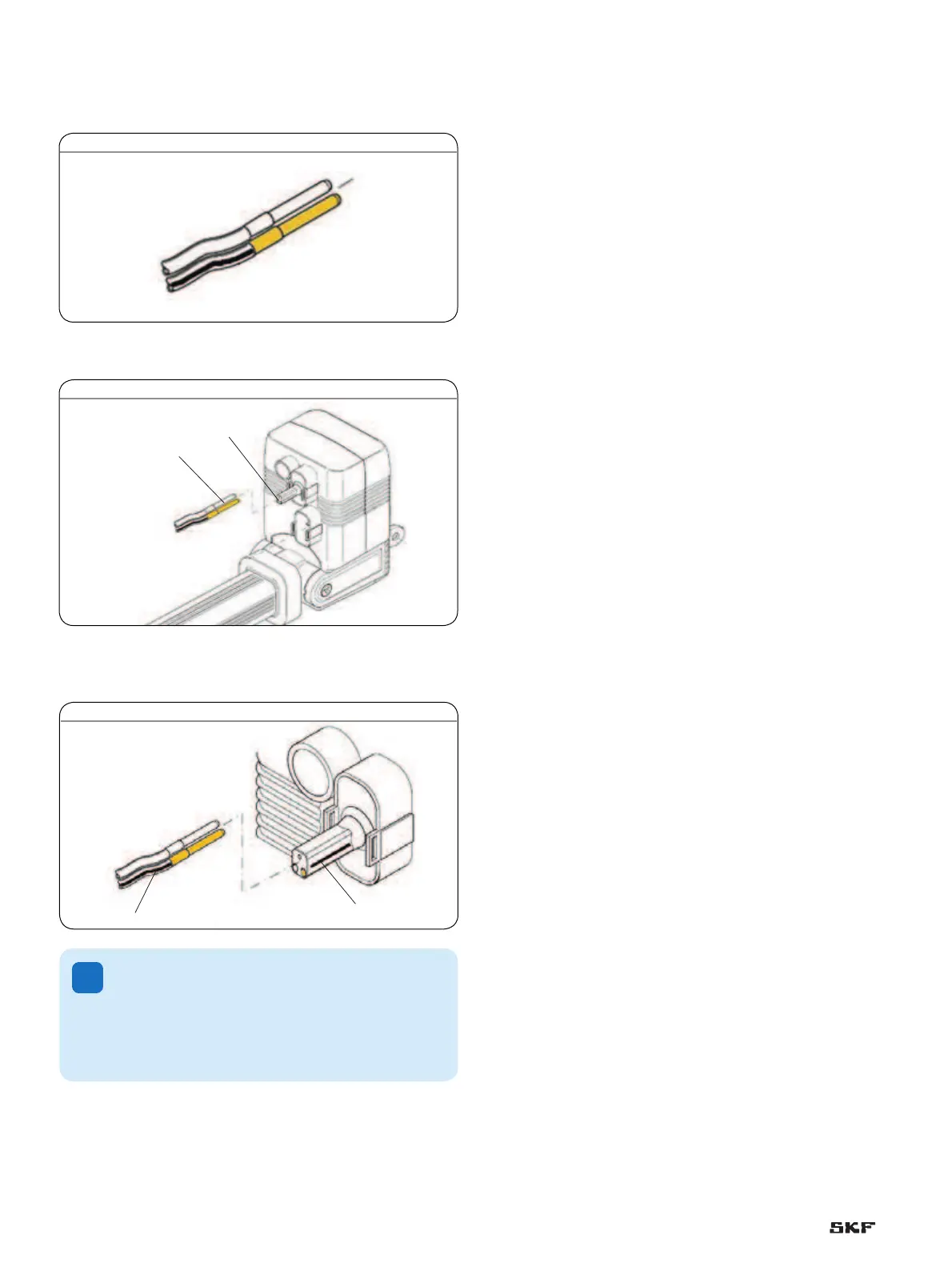

C o n n e c t t h e d e v i c e t o p n e u m a t i c o p e r a t i n g e l e m e n t :
1 Check gear pins of pneumatic control line for damage.
Fig. 28
2 Insert gear pins (1) into the bore holes of the rubber fitting (2).
1
2
Fig. 29
Ensure that the marking on the rubber fitting (1) aligns with the
marking on the pneumatic line (2).
1
2
Fig. 30
!
Note!
If the connection has been switched, the linear actuator
moves in the opposite direction of the arrows on the operating
element.
50
