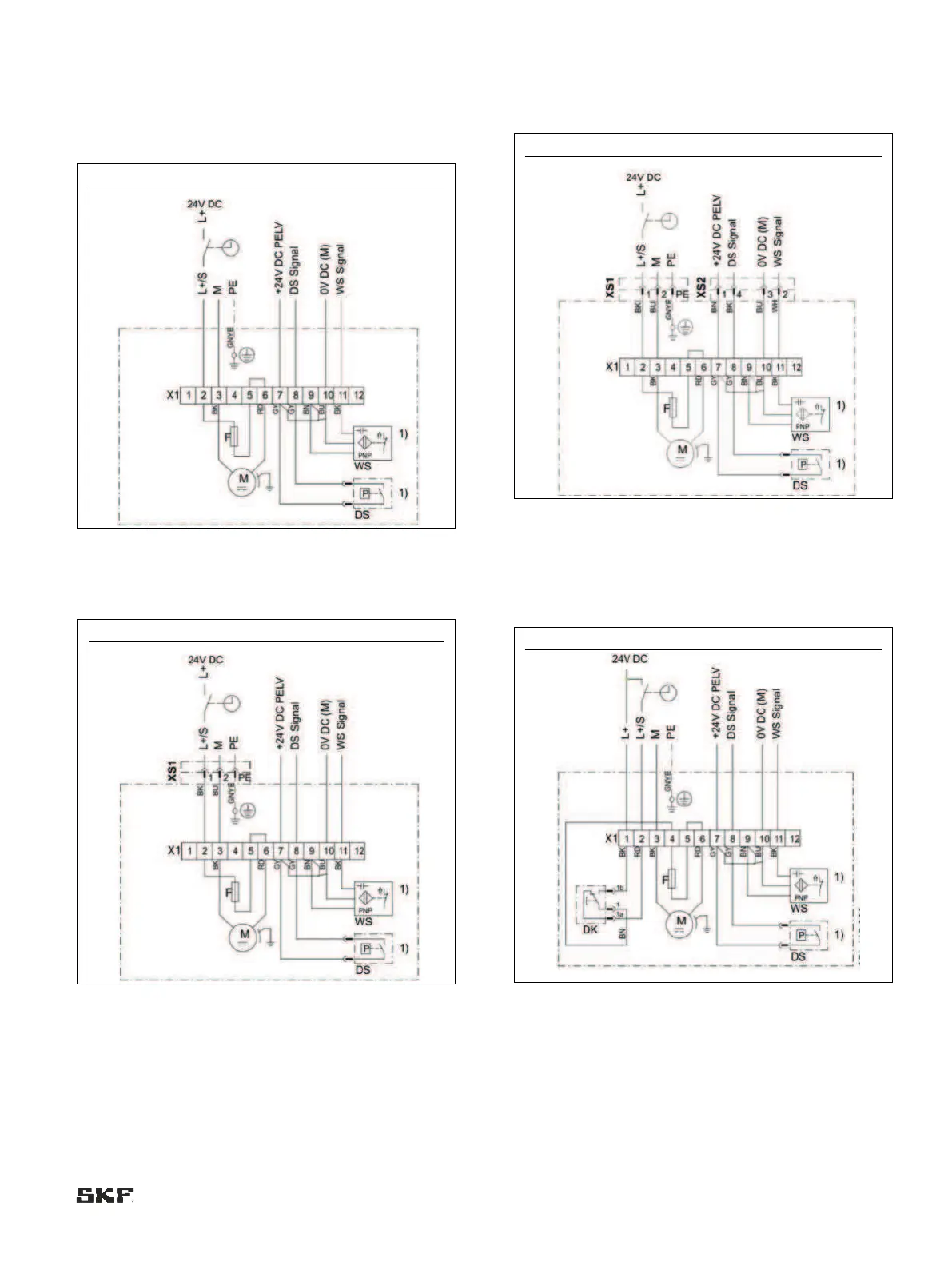

6.8.2.7 MKF, 2-liter reservoir, voltage design
24 V DC, without pushbutton
Connections via:
• 2x screwed glands
Fig. 50
MKF1-11A _ _ 0000+924, MKF1-11A _ _ 3000+924
Connections via:
• 1x XS1 connector (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 51
MKF1-11A _ _ 1000+924, MKF1-11A _ _ 4000+924
Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 52
MKF1-11A _ _ 2000+924
6.8.2.8 MKF, 2-liter reservoir, voltage design 24 VDC,
with pushbutton
Connections via:
• 2x screwed glands
Fig. 53
MKF1-11B _ _ 0000+924, MKF1-11B _ _ 3000+924
