SKF MKU Series Assembly Instructions

40

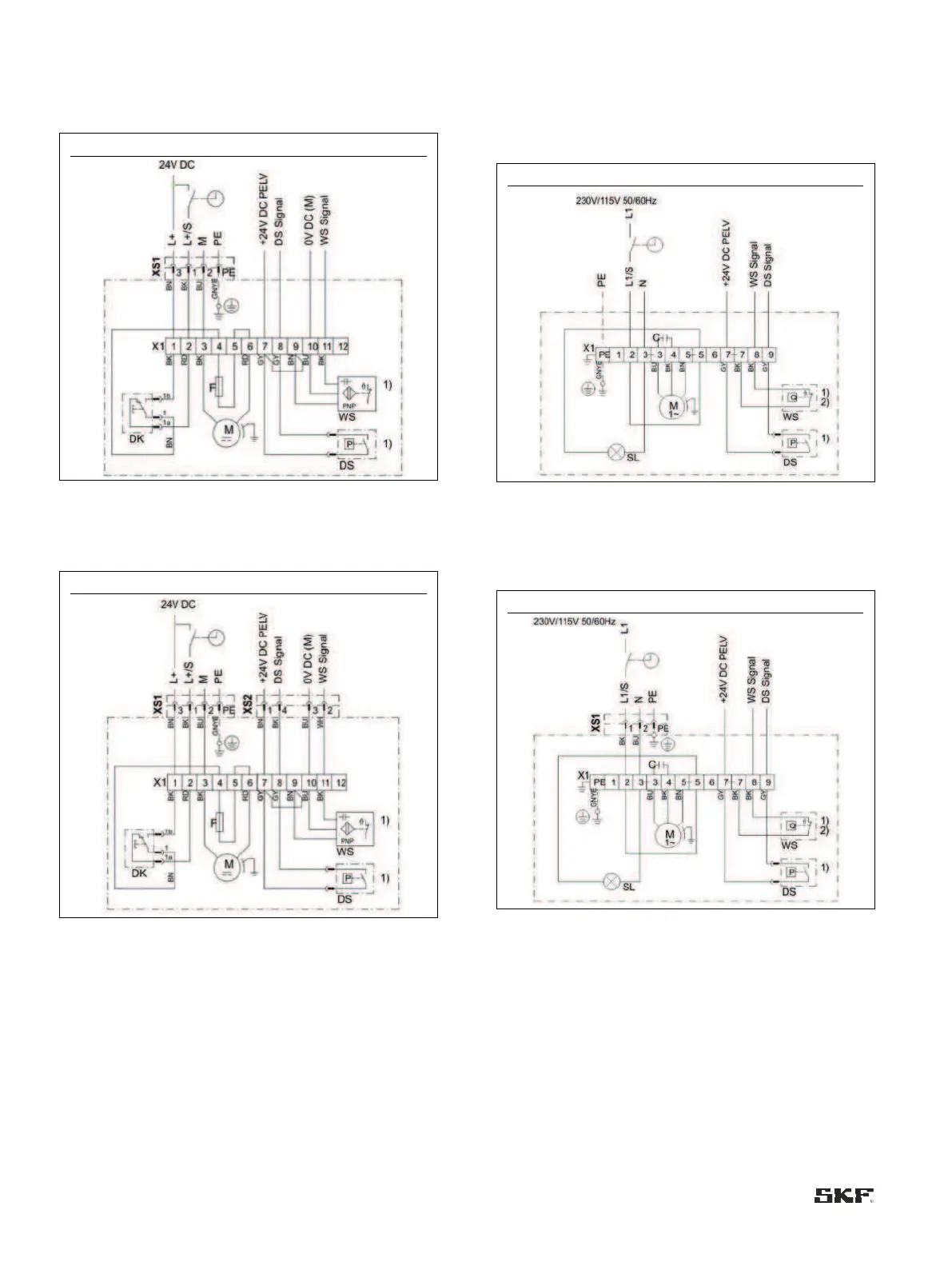

Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 54
MKF1-11B _ _ 1000+924, MKF1-11B _ _ 4000+924
Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 55
MKF1-11B _ _ 2000+924
6.8.2.9 MKU, 3- or 6-liter reservoir, voltage design
230/115 VAC, without pushbutton
Connections via:
• 2x screwed glands
Fig. 56
MKU1 -12(3) A _ _ 0000+428/+429, MKU2(5)-12(3)(4)A _ _
0000+428/+429, MKU2(5)-12(3)(4)A _ _ 3000+428/+429
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 57
MKU1 -12(3) A _ _ 1000+428/+429, MKU2(5)-12(3)(4)A _ _
1000+428/+429, MKU2(5)-12(3)(4)A _ _ 4000+428/+429
