SKF MKU Series Assembly Instructions

43
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland

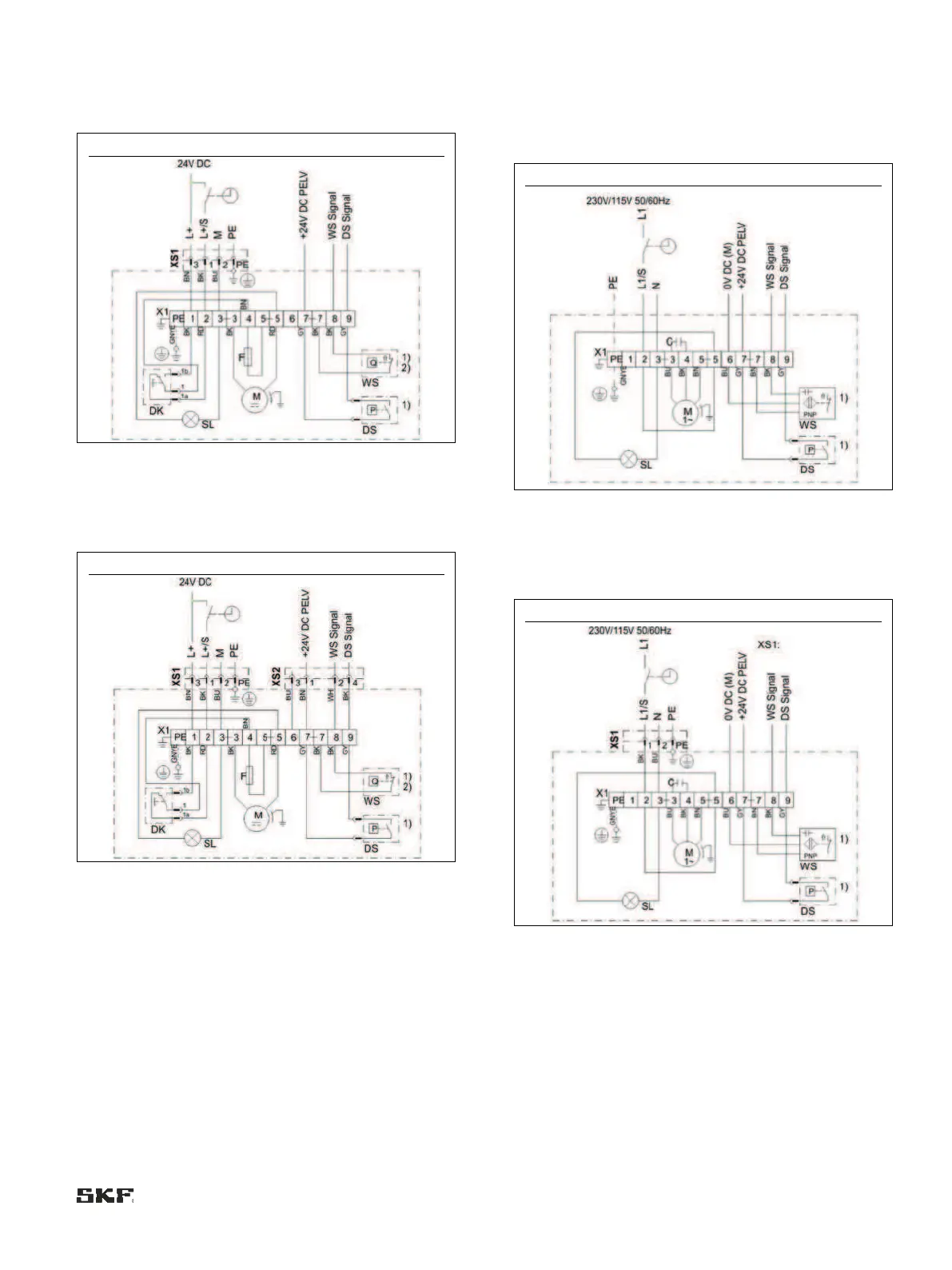

Fig. 66
MKU1-12(3) B _ _ 1000+924, MKU2-12(3)(4)B _ _ 1000+924,
MKU2-12(3)(4)B _ _ 4000+924
Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 67
MKU1-12(3) B _ _ 2000+924, MKU2-12(3)(4)B _ _ 2000+924
6.8.2.13 MKF, 3- or 6-liter reservoir, voltage design
230/115 VAC, without pushbutton
Connections via:
• 2x screwed glands
Fig. 68
MKF1-12 A _ _ 0000+428/+429, MKF2-12(4)A _ _
0000+428/+429, MKF2-12(4)A _ _ 3000+428/+429
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 69
