SKF MKU Series Assembly Instructions

44

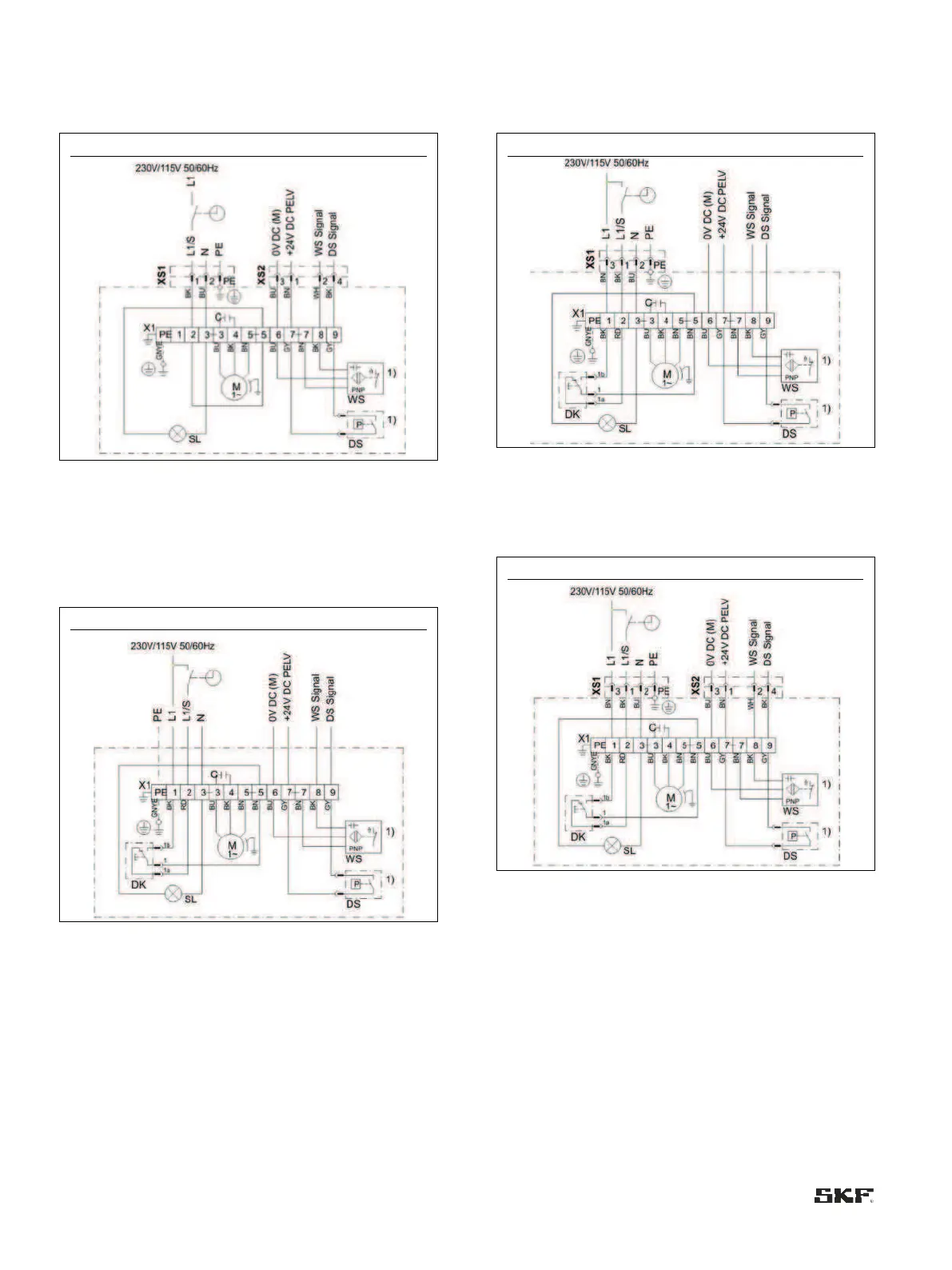

Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 70
MKF1-12 A _ _ 2000+428(+429), MKF2-12(4)A _ _
2000+428(+429)
6.8.2.14 MKF, 3- or 6-liter reservoir, voltage design
230/115 VAC, with pushbutton
Connections via:
• 2x screwed glands
Fig. 71
MKF1-12 B _ _ 0000+428/+429, MKF2-12(4)B _ _
0000+428/+429, MKF2-12(4)B _ _ 3000+428/+429
Connections via:
• 1x connector XS1 (DIN EN 175301-803 A)
• 1x screwed gland
Fig. 72
MKF1-12 B _ _ 1000+428/+429, MKF2-12(4)B _ _
1000+428/+429, MKF2-12(4)B _ _ 4000+428/+429
Connections via:
• XS1 connector (DIN EN 175301-803 A)
• XS2 connector (M12x1)
Fig. 73
MKF1-12 B _ _ 2000+428/+429, MKF2-12(4)B _ _
2000+428/+429
